THOMSON CALI-P User Manual

7
EN
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
C - INSTALLATION

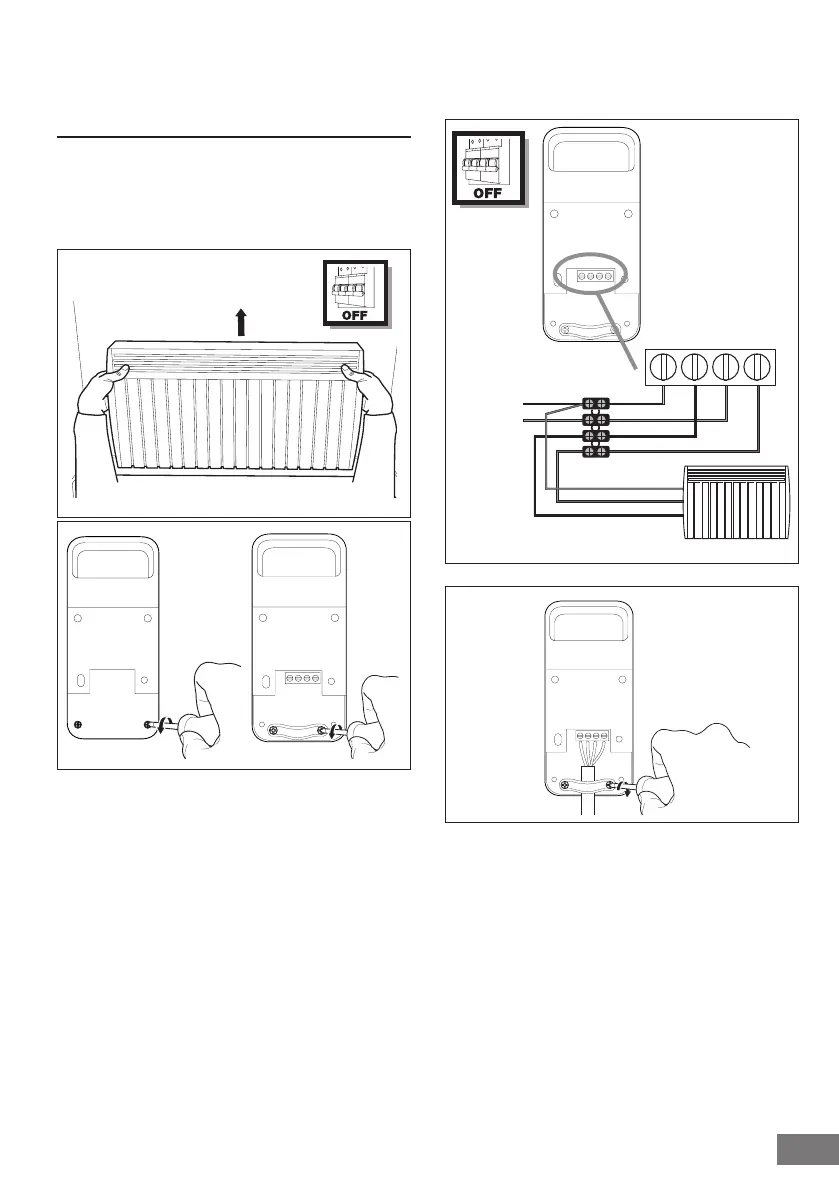

1 - INSTALLING THE HEATING MODULE
After disconnecting the electrical supply, remove the
radiator from the wall for easier access.
To do the electrical connection, remove the plastic
cover at the back as well as the cable tie.
)3
1B,1
/B,1
/B287
N Input
N in
Pilot wire
Pilot wire
P Input
P in
P Output
P out
bleu / blue
rouge / red
noir / black
marron / brown
N entrée / N in
P sortie / P out
F pilote / Pilot wire
radiateur / heater
230V mains
outlet
230V/50Hz
Mains power
230V/50Hz
N Input
N in
P Input
P in
Pilot wire
Pilot wire
P Output
P out
Once the electrical connection has been done,
replace the plastic cover at the back and attach
the receiver to the wall using the wall plugs and
screws included. The xings provided are suitable
only for masonry walls.
