Fuses
e 12 volts DC fuse panel label indicates fuse sizes, positions, and the electrical components
powered. At the beginning of camping season, inspect all the 12 volt fuses and replace them
as needed. Before replacing a fuse always shut OFF the engine, generator, and all motorhome
electrical systems completely, including making sure the electrical components listed on the
fuse label are in the OFF position:
1. Shut OFF the chassis engine
2. Disconnect the shore line power cord
3. Shut the generator OFF (if so equipped)
4. Turn the inverter OFF (if so equipped)
5. Disconnect the auxiliary battery main negative battery cable
6. Remove the fuse panel cover
7. Make sure the electrical component located on the fuse label is turned OFF
8. Pull the fuse straight out of the fuse block. If inspection of the fuse conrms that it is
not blown, some other electrical problem may exists. Please contact your selling dealer's
Service Department for further repair assistance.
Replacement fuses must be of the same voltage, amperage rating, and type. Never
use a higher rated replacement fuse as it may cause a re by overheating your
motorhome wiring.
WARNING
NOTE: Refer to the Chassis Packet for
information regarding the chassis fuses and
circuit breakers.

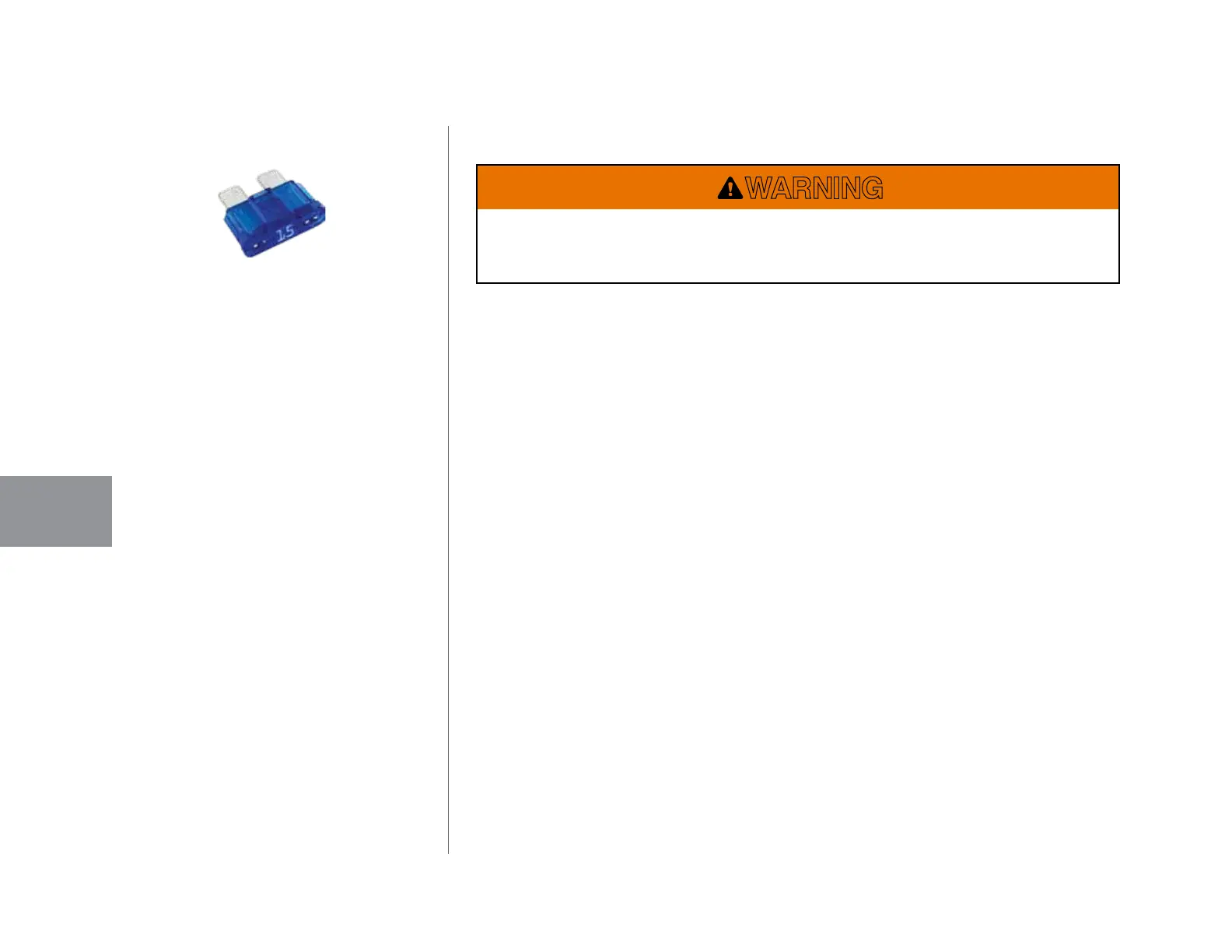

Typical ATC blade-type fuse
