THORENS TD 147 - Unpacking

Bild/Figure
Bild/Figure
Bild/Figure
@
I
?

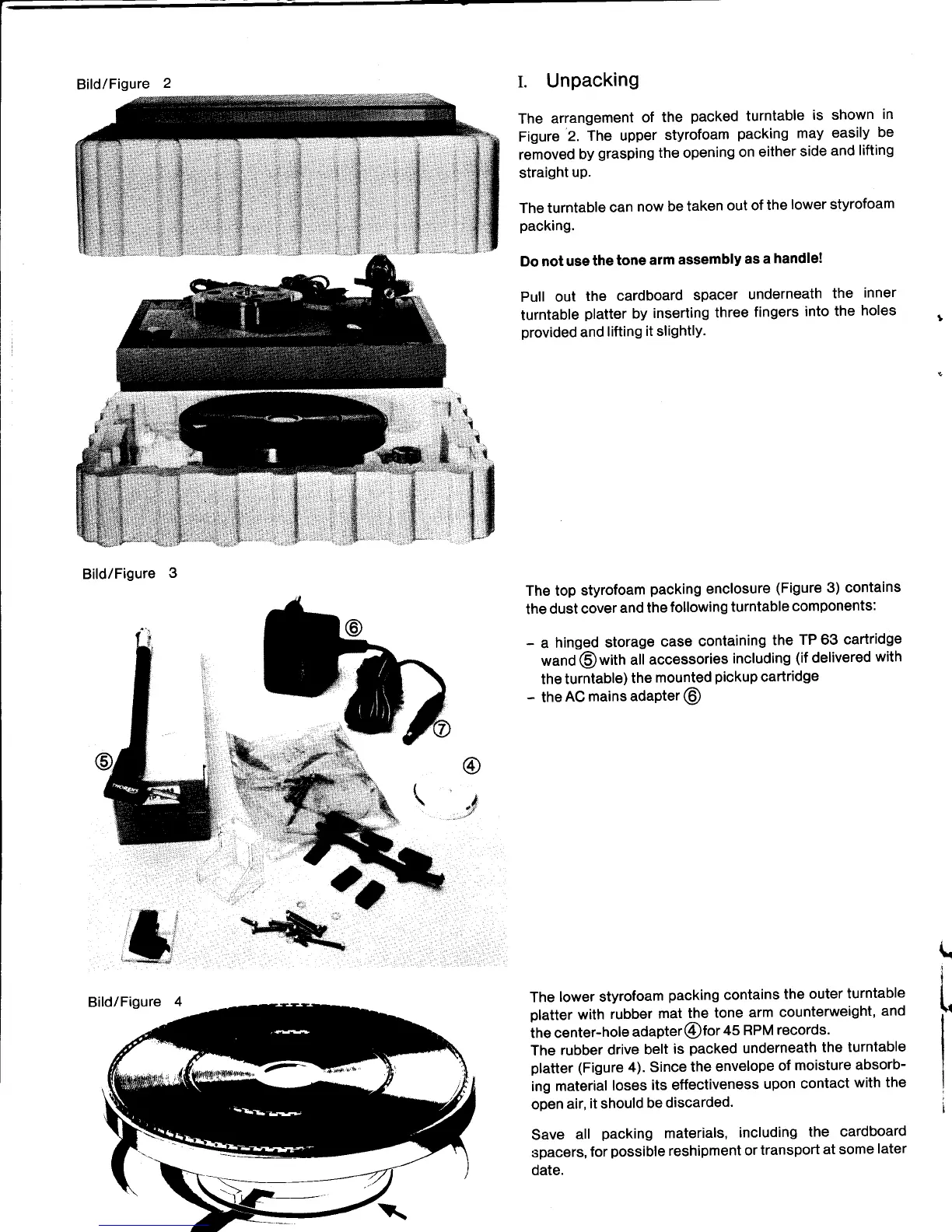

I. Unpacking
The
arrangement
of
the
packed
turntable
is shown
in
Figure'2.
The upper
styrofoam
packing
may
easily
be
removed
by
grasping
the opening
on
either
side
and
lifting
straight
up.
The turntable
can
now
be taken
out of
the
lower styrofoam
packing.
Do not
use
the
tone
arm
assembly
as a
handle!
Pull out
the
cardboard
spacer
underneath
the
inner
turntable
platter
by
inserting
three
fingers
into the
holes
provided
and
lifting
it slightlY.
The top
styrofoam
packing
enclosure
(Figure
3)
contains
the
dust cover
and the
following
turntable
components:
-
a
hinged
storage
case
containing
the
TP 63
cartridge
wand
@with
all
accessories
including
(if
delivered
with
the turntable)
the
mounted
pickup
cartridge
-
theACmainsadaPter@
The
lower styrofoam
packing
contains
the
outer
turntable
platter
with
rubber
mat
the
tone
arm
counterweight,
and
the center-hole
adapter@for
45 RPM
records.
The
rubber
drive
belt
is
packed
underneath
the
turntable
platter (Figure 4). Since
the
envelope
of
moisture
absorb-
ing
material
loses
its effectiveness
upon
contact
with the
open
air,
it
should
be
discarded.
Save
all
packing
materials,
including
the cardboard
spacers,
for
possible
reshipment
or
transport
at some
later
date.
