THORENS TD 203 - Azimuth Adjustment

32
Azimuth

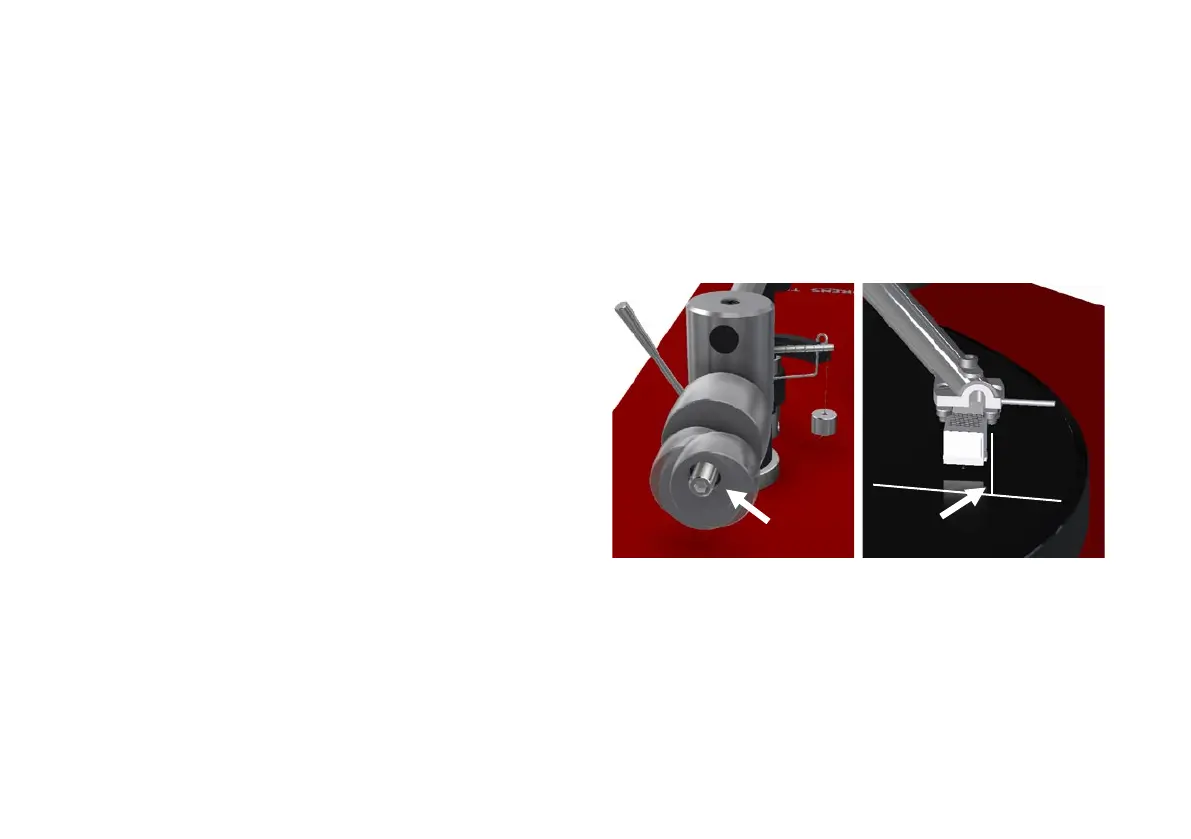

To adjust the azimuth, rotate the smaller, eccentric
counterweight. ➔ Fig. 9
The azimuth setting is correct when the pick-up car-
tridge is exactly perpendicular to the platter surface.
➔ Fig. 10
Fig. 10Fig. 9
90°
