Further Tonearm Adjustments
The tonearm headshell allows an overhang adjustment
of ±2.5 mm to be made, which may be necessary when
installing a new pick-up cartridge. To adjust overhang,
loosen the screw holding the headshell and move the
headshell as required. ➔ Fig. 12
Overhang can be further adjusted by +2.5 mm at the
rear of the tonearm. To do so, loosen the screw at the
top of the bearing housing by one or two turns at most
and move the tonearm tube as required. ➔ Fig. 13
The screw at the top of the bearing housing must not
be loosened too far, let alone removed completely,
as this may result in damage to the tonearm!
Take care not to over-tighten the screws after making
adjustments.

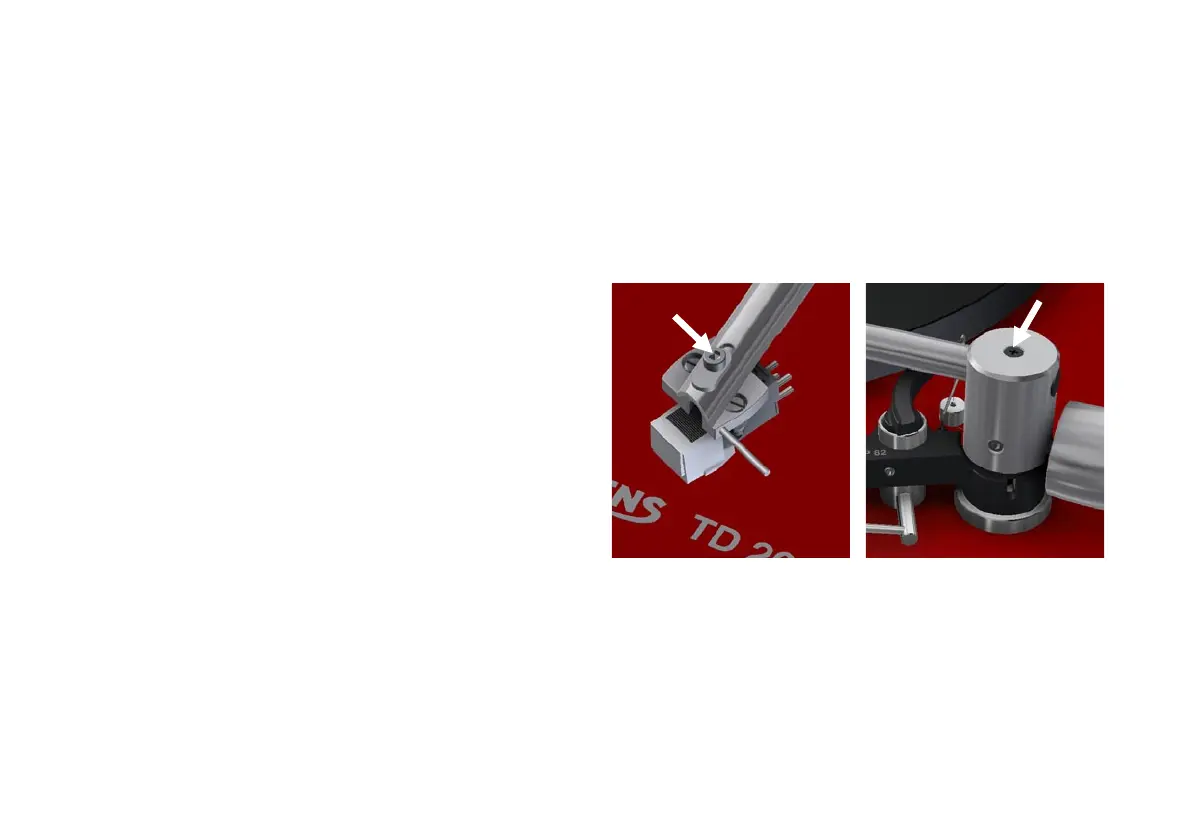

Fig. 12
