EXULUS-HD1 & EXULUS-4K1 Spatial Light Modulators Chapter 7: Application Note: Displaying CGH Patterns
Page 34 CTN008794-D02
a. b.
c.

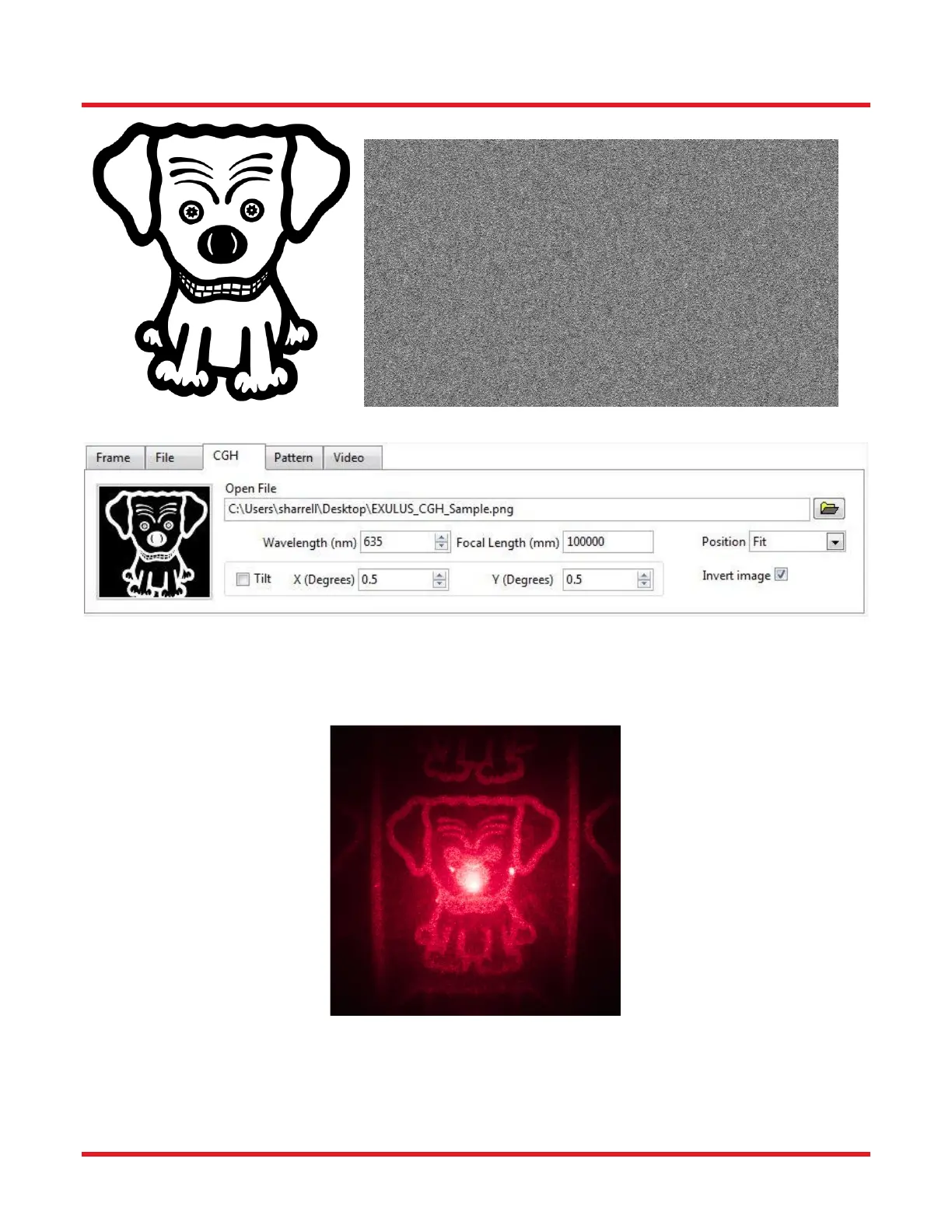

Figure 32 a. The image used to generate the holographic projection.
b. The corresponding CGH pattern generated by the “Spatial Light Modulator” software.
c. The CGH settings tab in the “Spatial Light Modulatorsoftware.
Figure 33 CGH projection of an image using the setup shown in Figure 31 and the image shown in
Figure 32. The central bright spot is the zero-order spot due to the spacing between the SLM
pixels.
