Rev K Jan 2020
Page 10
Chapter 3 Mechanical Installation
3.3.2 Mounting the Stage to the Work Surface
The LTS stage is mounted to the working surface by 1/4-20 (M6) screws (five for
LTS300, three for LTS150), which fit through the base. The mounting holes are
accessed from the top of the stage. Sleeves are fitted in the moving platform to allow
the bolts to pass through from the top surface - see Fig. 3.1.

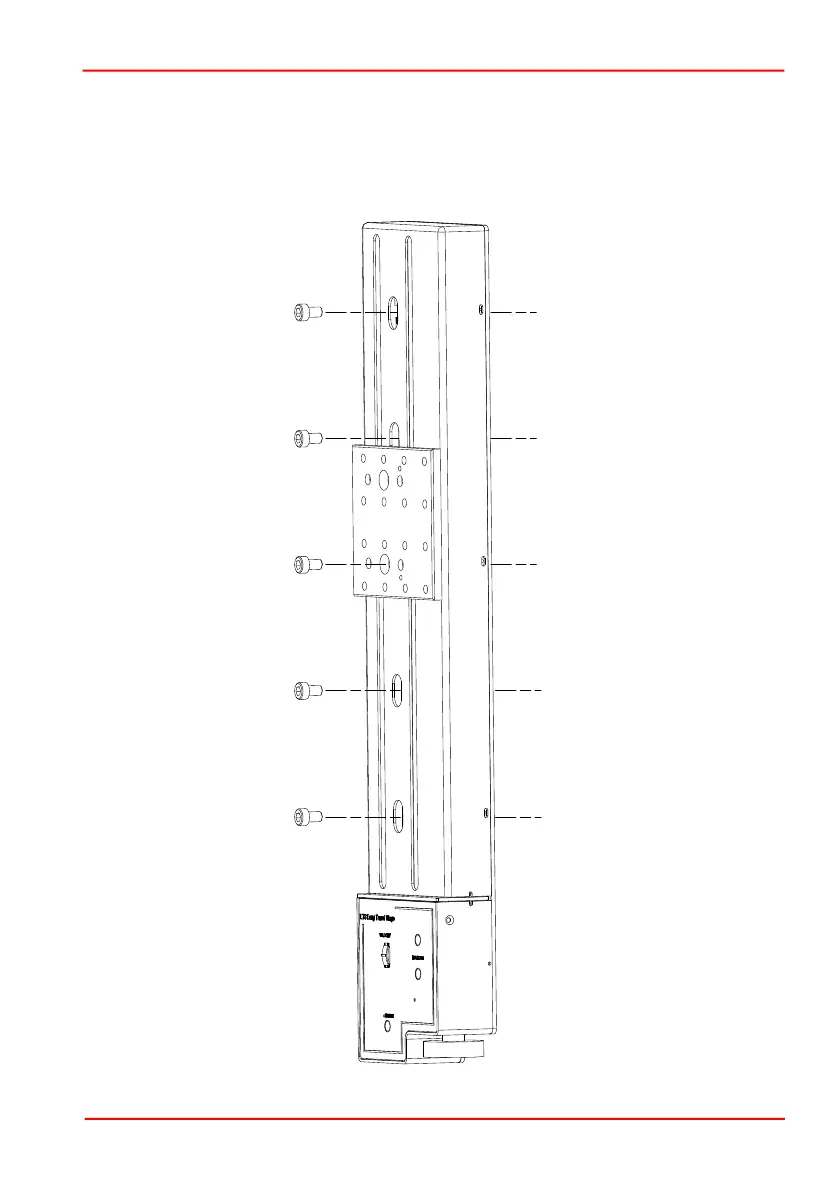

Fig. 3.1 Mounting Holes
