Rev K Jan 2020
Page 22
Chapter 6 PC Operation
6.6 Changing Motor Parameters
Moves are performed using a trapezoidal or S-Curve velocity profile (see Appendix D,
Section D.1.3.). The velocity settings relate to the maximum velocity at which a move
is performed, and the acceleration at which the motor speeds up from zero to
maximum velocity.
1) On the GUI panel, click the ‘Settings’ button (bottom right hand corner of the
display) to display the Settings panel.

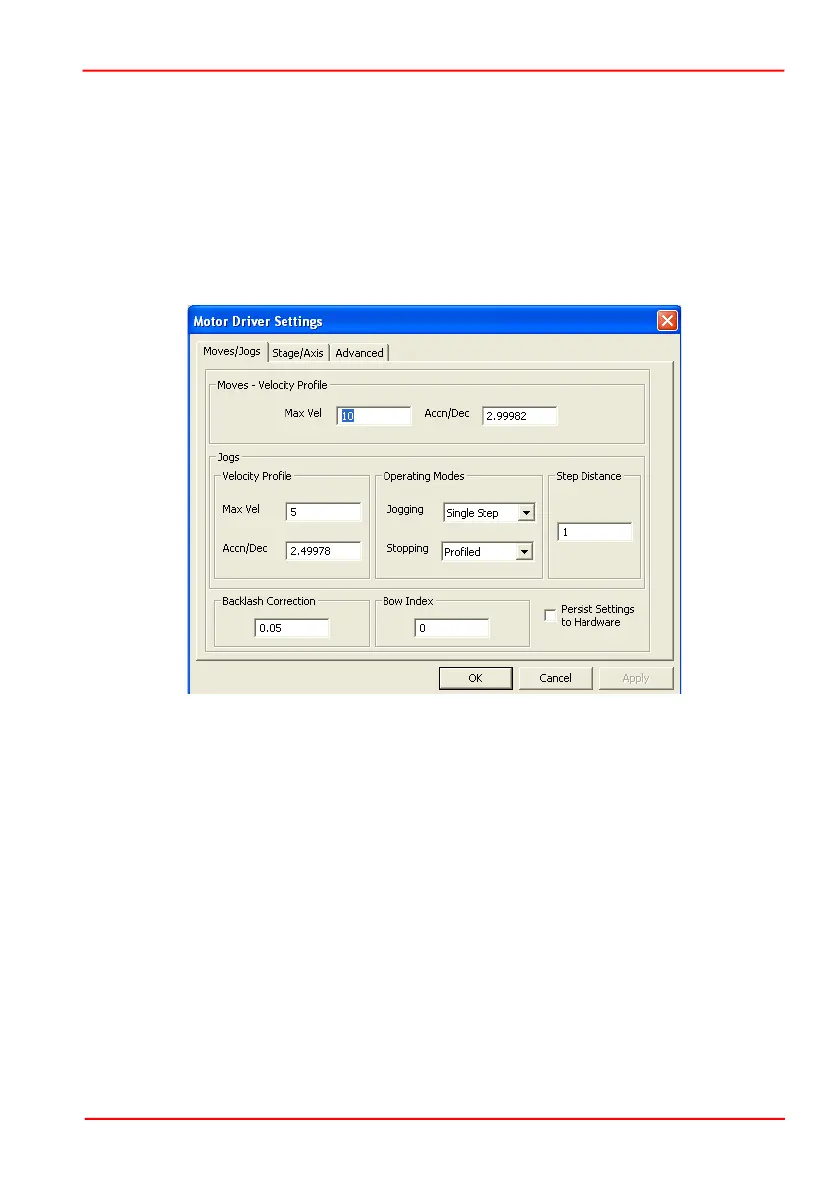

Fig. 6.4 Settings Panel - Move/Jogs Tab
2) Select the Move/Jogs tab as shown in Fig. 6.4.
3) In the ‘Moves’ field, change the parameters as follows:
‘Max. Vel’ - ‘2.5’
‘Accn/Dec’ - ‘0.5’
Note. In current versions of software, the ‘Min Vel’ parameter is locked at zero and
cannot be adjusted.
4) Click ‘OK’ to save the settings and close the window.
5) Any further moves initiated on channel 1 will now be performed at a maximum
velocity of 2.5mm per second, with an acceleration of 0.5mm/sec/sec.
