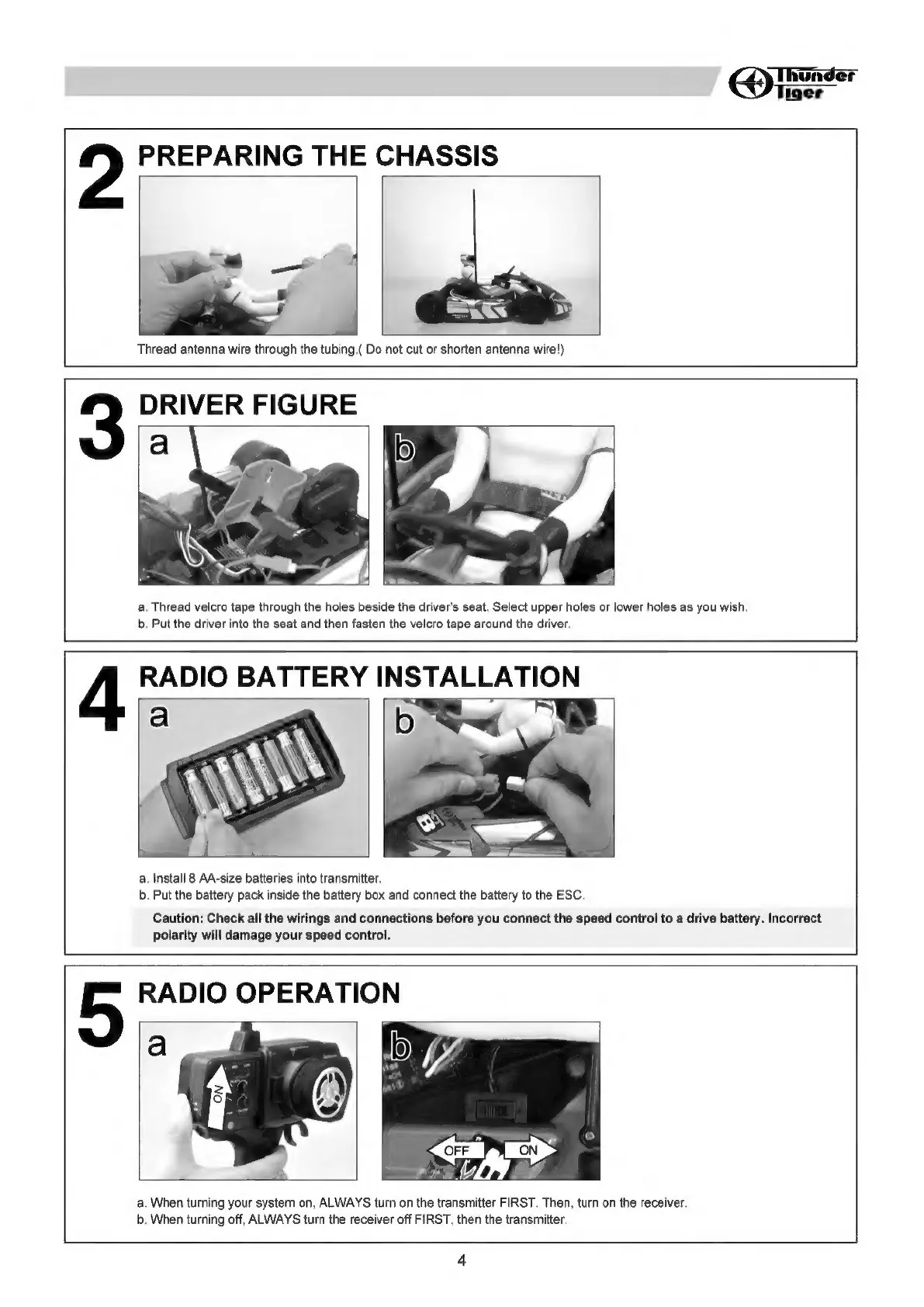

THUNDER TIGER KT8 - Preparing the Chassis; Driver Figure; Radio Battery Installation; Radio Operation 4

O [onsec
Tiger
2 PREPARING THE CHASSIS
We ——
Thread antenna wire through the tubing.( Do not cut or shorten antenna wire!)
3 DRIVER FIGURE
а | а
а. Thread velcro tape through the holes beside the driver's seat. Select upper holes or lower holes as you wish.
b. Put the driver into the seat and then fasten the velcro tape around the driver.
4 RADIO BATTERY INSTALLATION
a. Install 8 AA-size batteries into transmitter.
b. Put the battery pack inside the battery box and connect the battery to the ESC.
Caution: Check all the wirings and connections before you connect the speed control to a drive battery. Incorrect
polarity will damage your speed control.
RADIO OPERATION
а. When turning your system on, ALWAYS turn on the transmitter FIRST. Then, turn on the receiver.
b. When turning off, ALWAYS turn the receiver off FIRST, then the transmitter.
