Thundercomm EB5 Edge AI Box Hardware User Manual
- 10 -
Chapter 3. Hardware Description
3.1. Hardware system architecture
EB5 provides a rich IO interface, flexible access to a variety of peripherals. Connect Tech’s EB5 brings deployable
Snapdragon 865 5G Mobile Platform to the market. The EB5 design includes a Locking Power Input (+12 to +24V),
Dual Gigabit 2* Ethernet, 2* HDMI video, 4* USB 3.0 Type A, Micro USB 2.0 (for debug), Type -C, MIC, Earphone,
Micro SD Card, SIM Card, 3* Phoenix terminal (10pin) (Isolated Full Duplex CAN *2, Isolated RS485 *2, RS232 *2,
DO*4, DI*4), M.2 (B-Key, M-Key; bottom access panel), RTC battery, and a dual-purpose Reset/Power pushbutton
with LED.

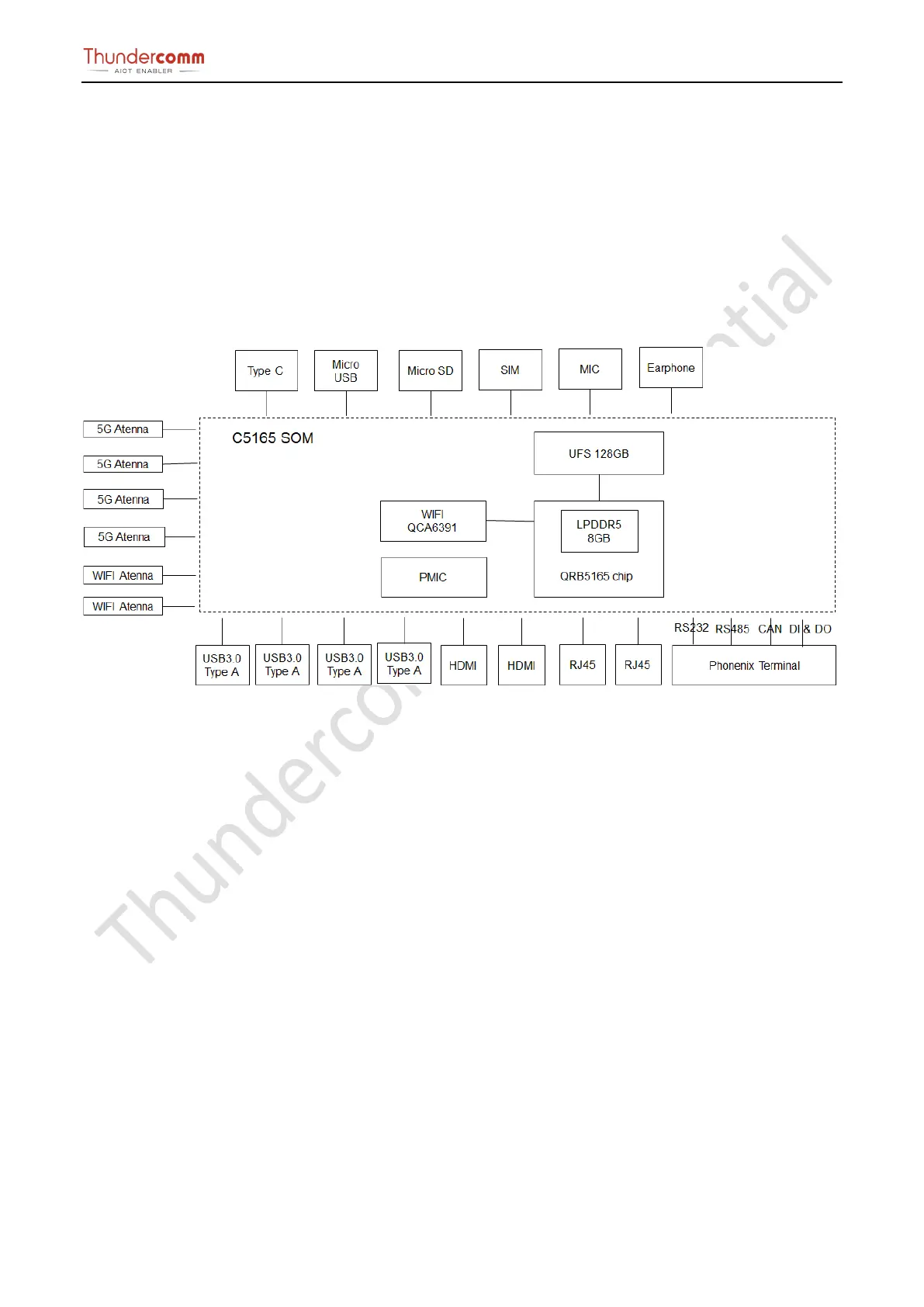

Figure 3-1 Hardware logic architecture
