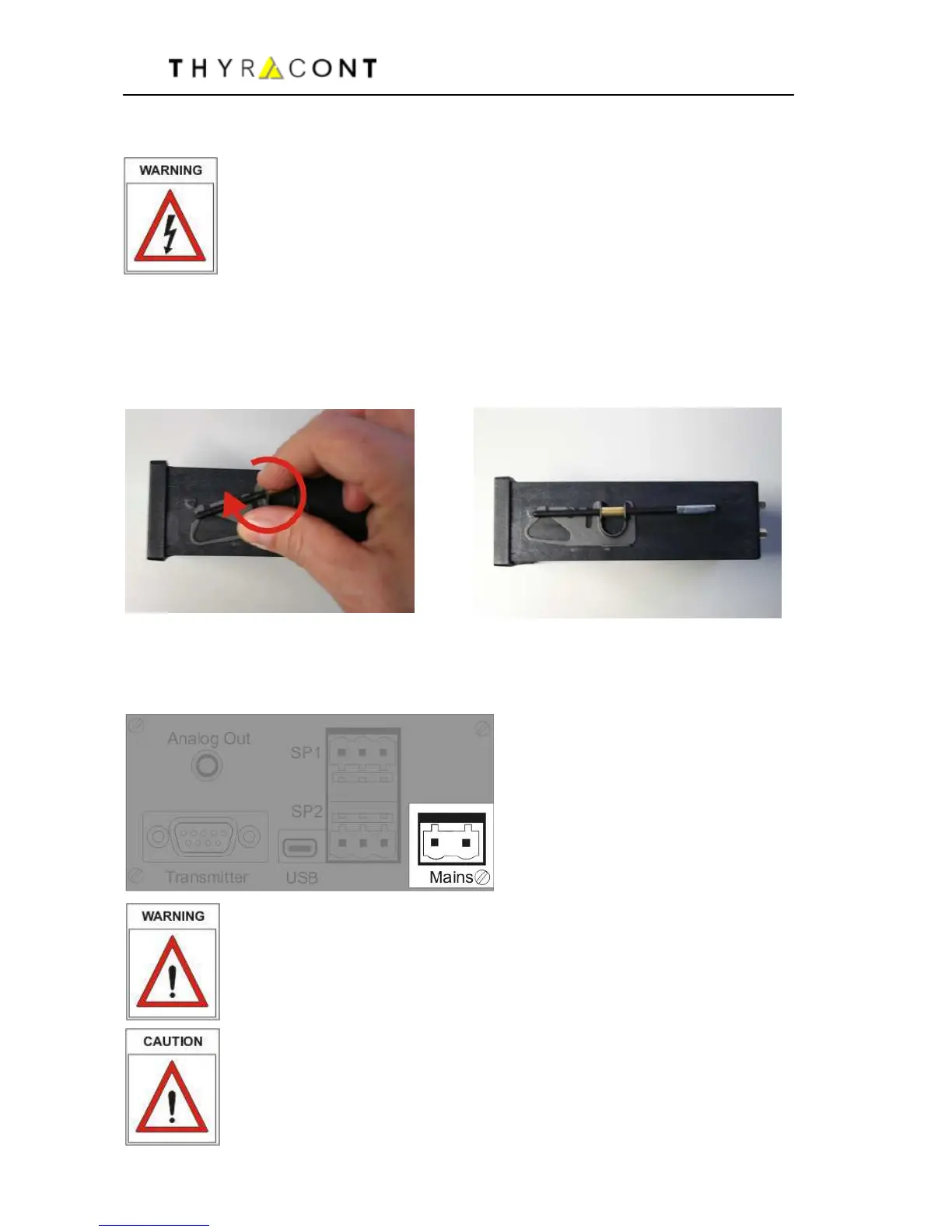

3.2 Panel Installation
The instrument is designed for panel mounting. When used as
desktop device there will be the danger of an electric shock!
The size of the panel cavity needed is 90 x 42 mm.
For installation please use the mounting brackets which came enclosed with the
VD6. Insert the VD6 in the panel and hook the brackets into the mounting knobs
at the sides of the instrument as shown below. To fix the unit tighten the screws
so that the VD6 is clamped against the panel.
3.3 Mains Connection
Cables may be manufactured or adapted by persons with suitable
technical education only. Consider technical data to avoid overload
or destruction of the instrument and danger for the user.
Mains voltage must be supplied via terminal box.
Make sure that you use the appropriate mains voltage in order to
prevent the instrument from being damaged!
VD6S2115: 115 VAC, 50/60 Hz
VD6S2230: 230 VAC, 50/60 Hz
