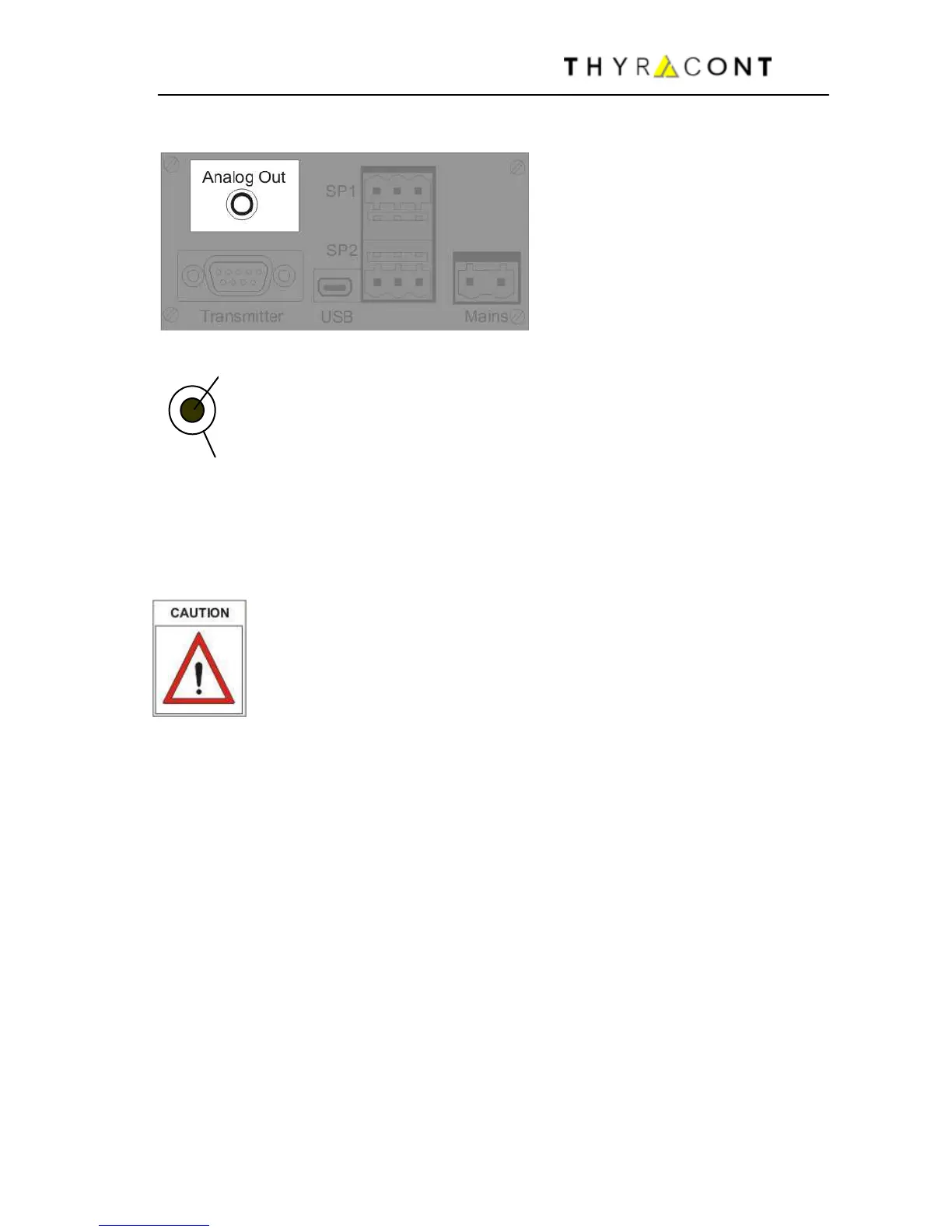

3.7 Recorder Output
1:
2:
Jack Plug
Analog Out, 0-1V / 0-10V,min.10kΩ
AGND
The recorder output provides an analog voltage signal corresponding to actual
pressure. The voltage output has a linear or logarithmic characteristic depending
on the connected transducer type. The recorder output can further be configured
as 0-1 V or 0-10V signal.
Minimum load resistor for the recorder output is 10 kΩ.
