Thyracont VD6 - Transducer Connection; USB Connection

33
man_vd6s2-de-130515

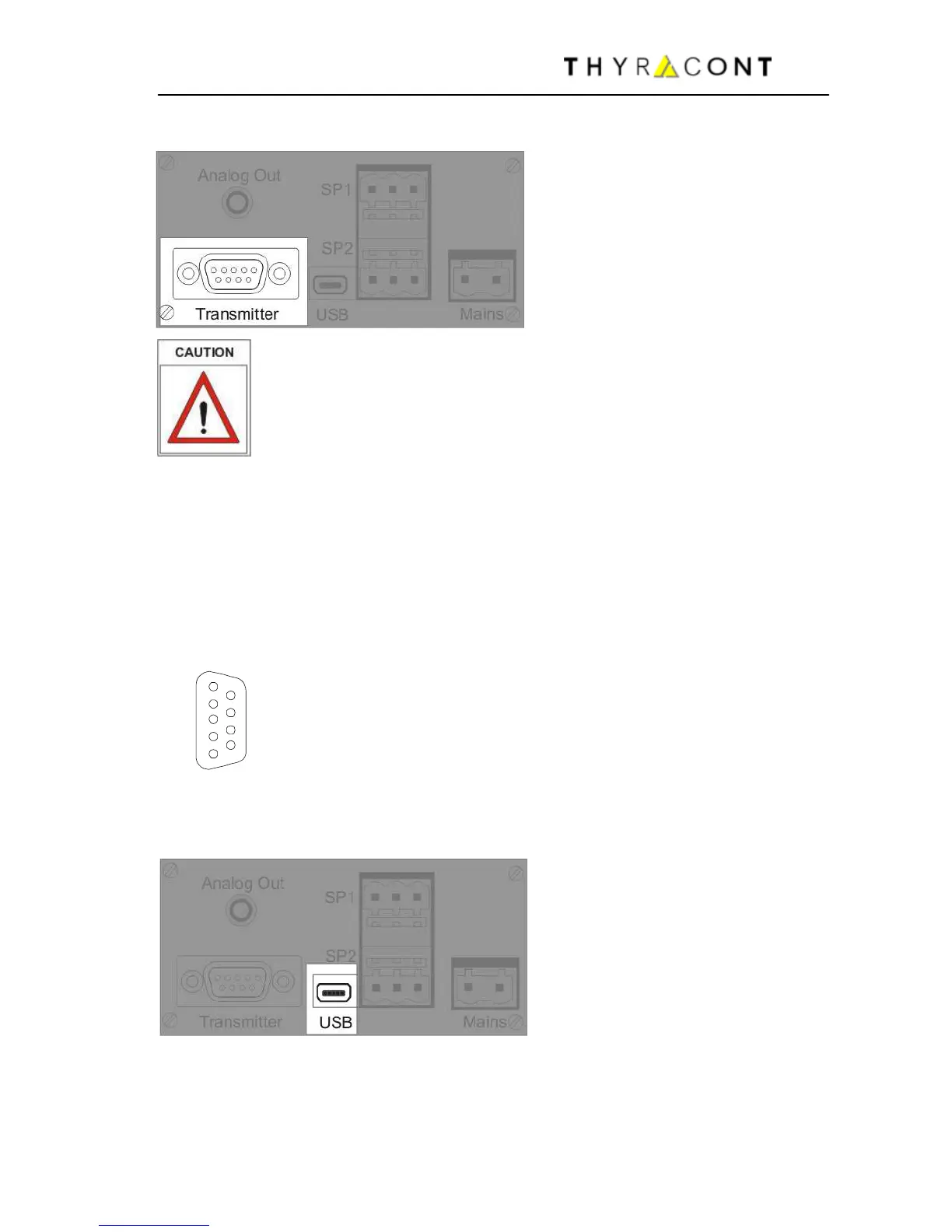

3.4 Transducer Connection
The instrument must be switched off before any transducers are
connected. Not following this instruction may lead to damage of
the instrument.
To the VD6 Thyracont transducers for absolute pressure can be connected.
Admissible types are:
- VSC43MA4 (1400 – 1 mbar) ,
- VCC200MA4 (200 – 0,1 mbar)
- VSP63MA4 (1000 – 1x10
-4
mbar)
The VD6 provides voltage supply fort the transducer.
SubD
Pin 3:
Pin 4:
Pin 7:
Pin 9:
9pin, female.
Input: 4-20mA VSP52MA4 / VSP53MA4 / VSP63MA4
Input: 4-20mA VSC42MA4 / VSC43MA4 / VCC200MA4
Voltage Supply: 15 VDC, max. 1,5W
AGND (for 3-wire-connection)
3.5 USB Connection
1
2
3
4
5
6
7
8
9
