MEASURES, LOGIC STATES AND COUNTERS
40
NA016 - Manual - 05 - 2022
oscillo-phase.ai

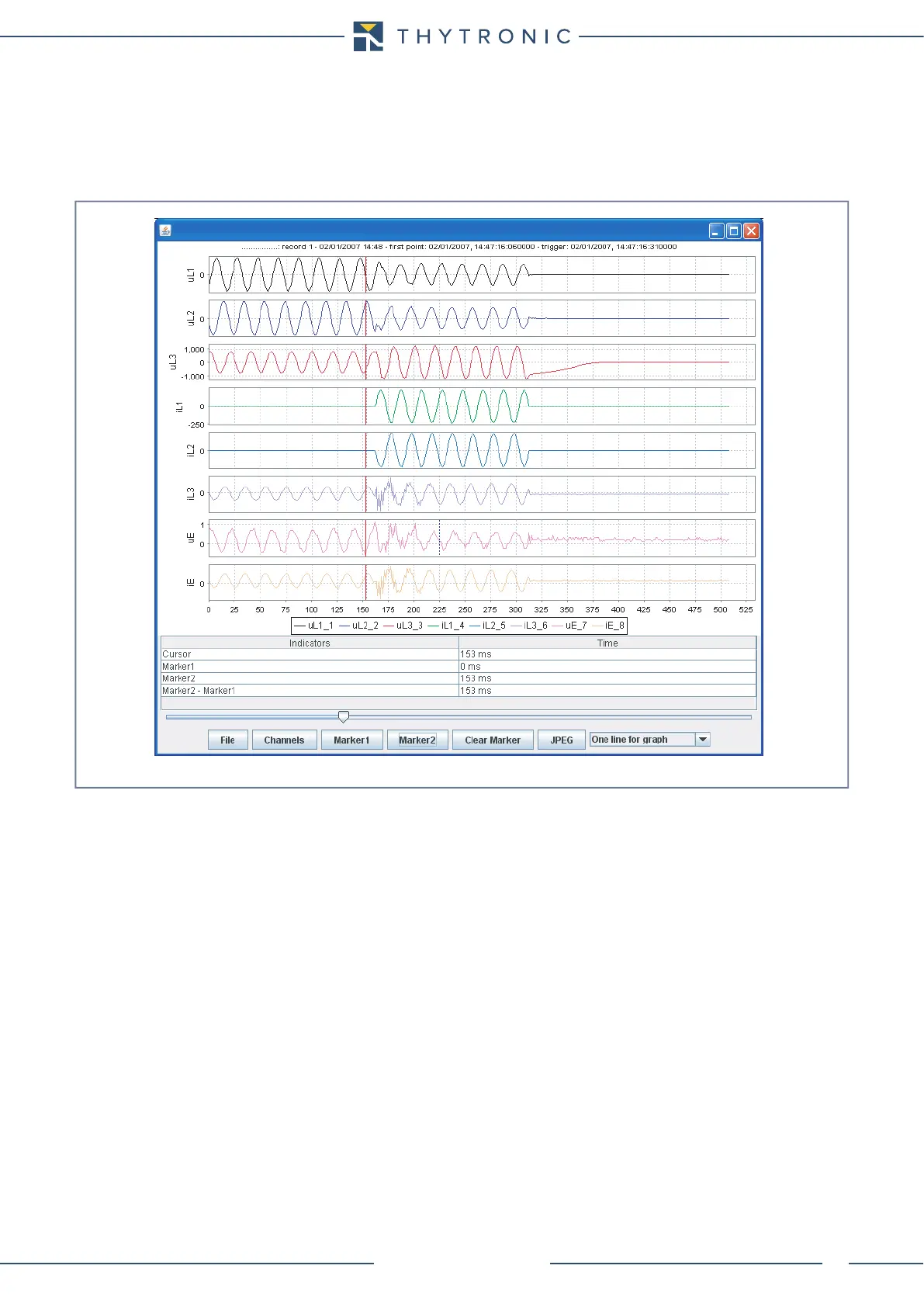

Phase/to/phase fault record
Display example
The figure below shows the registration of the followings:
Instantaneous value of phase current IL1 (IL1)
Value of fundamental component of phase current IL1 (IL1 Measure)
Logic state input IN1
Recording is started (triggers), with pre-trigger = 2T, I> start (General start).
