INSTALLATION
42
NA016 - Manual - 05 - 2022

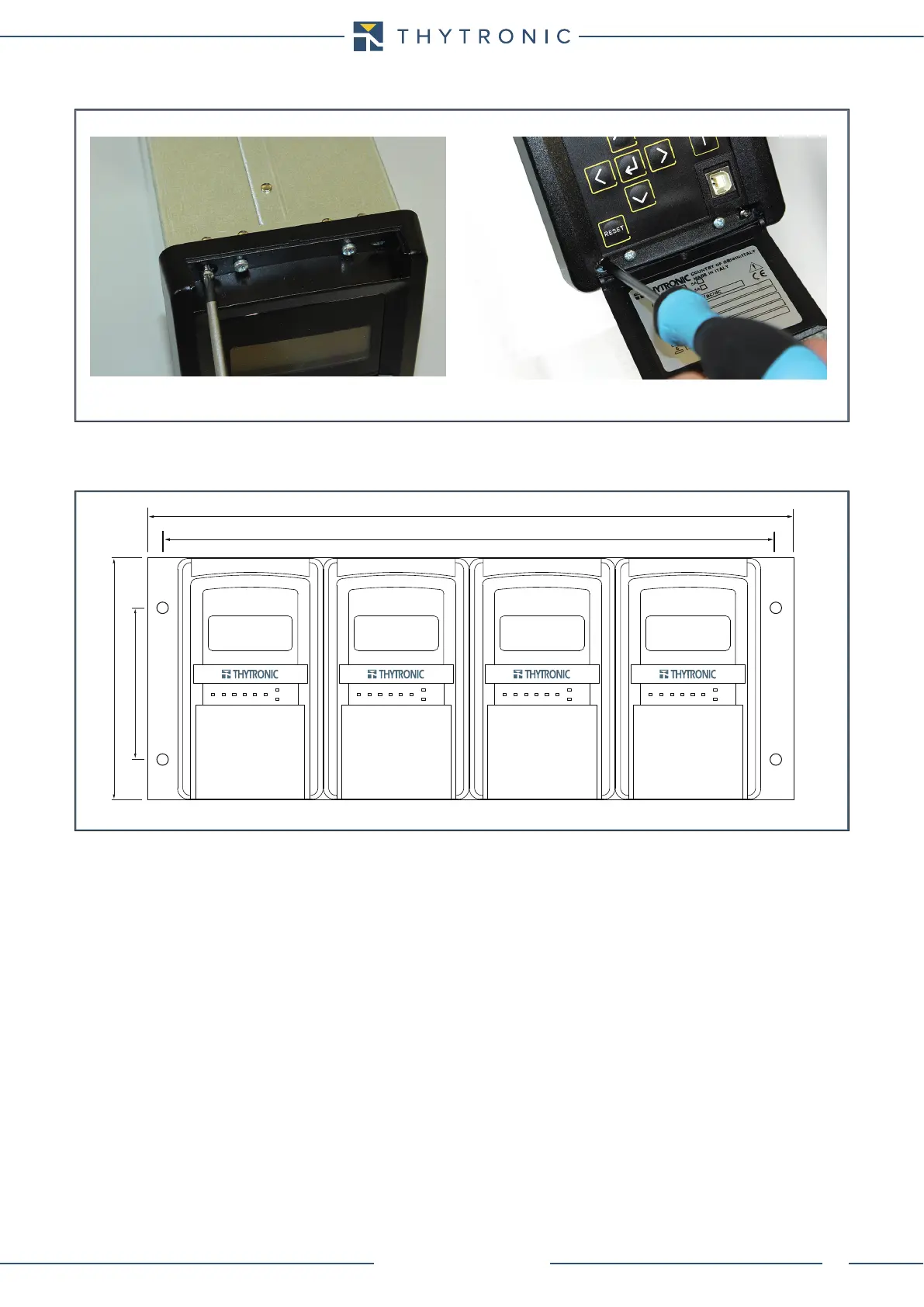

• The fixed case is fastened by means of four screws onto the panel as indicated in the drawing.
Rack mounting
For mounting inside a standardized 19-inch system (EIA 310-D, IEC 60297 and DIN 41494 SC48D), the
MAR adapter is required (available on request).
To allow opening of the keyboard door a one unit space must be provided when several rack are
overlapping mounted.
Flush-mount1.ai
Four screws
Rack-mount.ai
Rack mounting
177 (4U)
101.6
482.6
465
ON 41 32 5
TRIP
START
ON 41 32 5
TRIP
START
ON 41 32 5
TRIP
START
ON 41 32 5
TRIP
START
