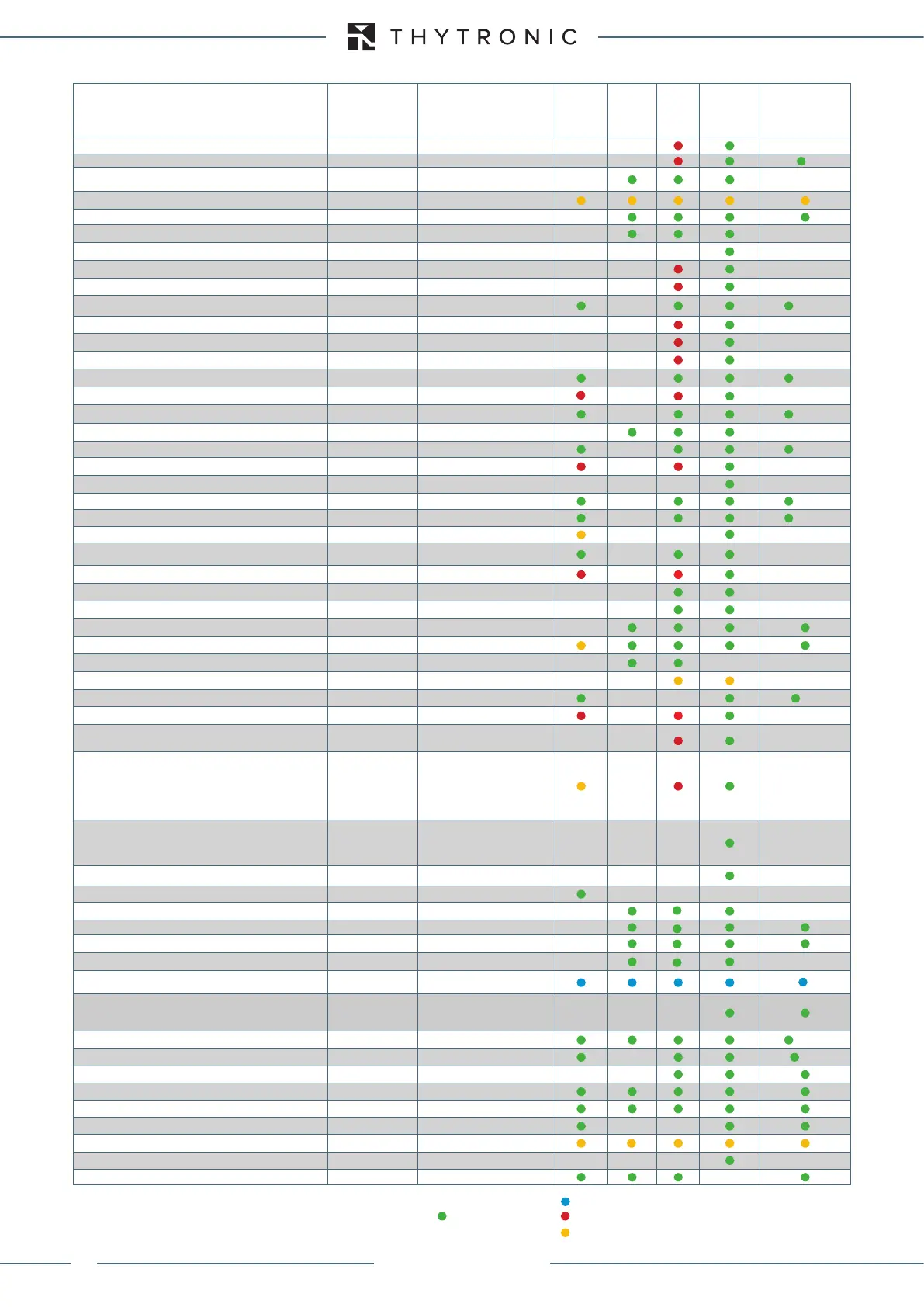

INTRODUCTION
Function ANSI Code
IEC61850
Logical Node
XMR-A
4I+1V/1A
XMR-V
4V
XMR-P
4I+4V
XMR-D
4I+4V
(4I+64F)
XMR-T 8I+1V
XMR-T PRO
11I+1V
Under Impedence 21 PDIS - F21Sn
Over Flux(V/Hz) 24 PVPH - F24 Sn L
SynchroCheck 25
RSYN - F25 State
GGIO - F25 Management
Thermal with Pt100 Probes 26 PTTR - F26 Sm
Under Voltage 27 PTUV - F27 Sn
Positive Sequence Undervoltage 27V1 PTUV - F27V1
100%Stator earth fault with 3
rd
harmonic 27H - 59H
Directional active overpower 32P PDOP - F32Pn
Directional reactive overpower 32Q PDOP - F32Qn
Under Current 37 PTUC - F37H1 - F37L1 L, H, T
Directional active underpower 37P PDUP - F37Pn
Directional reactive underpower 37Q PDUP - F37Qn
Loss of Field 40(M/G) PDUP - F40Sn
Negative sequence overcurrent transformer 46LT PTOC - F46Hn - F46Ln L, H, T
Negative sequence overcurrent Motor/Generator 46M, 46G PTOC - F46GSA - F46GS1
Negative /positive sequence current ratio I2/I1 PTOC - FI21L- FI21H L, H, T
Phase reversal 47 PTOV - F47 Us1
Thermal Image Transformer 49LT PTTR - F49H1- F49L1 L, H, T
Thermal Image Motor/Generator 49MG PTTR - F49MS1
Unintentional energisation at standstill protection 50/27 GGIO- SPV
Phase overcurrent side H and side L 50/51 PTOC - F51Lp - F51Hp L, H, T
Maximum Residual Overcurrent 50N/51N PTOC - F5N1p - F5N2p
L, H, T
Maximum Residual Overcurrent(2) 50N/51N(2) PTOC - F5N1p - F5N2p
Calculated Residual Overcurrent 50N/51N(Comp) PTOC - F5NLp - F5NHp
Locked Rotor 51LR(48)/14 PMSS - F51Rn
Voltage restraint overcurrent 51V PTOC - F51Vn
Minimum Power Factor 55 PUPF - F55Sn
Overvoltage 59 PTOV - F59Sn
Residual Overvoltage 59N PTOV - F59Np
Negative sequence overvoltage 59V2 PTOV - F59V2
Rotor Earth Fault 64F PTOC - F64Fn
Low impedance restricted earth fault 64REF PHIZ - F64F1 1, 2
Maximum number of startings (Restart inhibition) 66 PMRI - F66S1
Phase Directional Overcurrent
(Voltmetric Permission)
67
PTOC - F67Sq
RDIR - F67Sq
Ground directional overcurrent 67N
PTOC - F67Nw
RDIR - F67Nw
PTOV - F67Nw
PTOC - F67N6 Intermittent
PTOC - F67N7 Evolutionary
Ground directional overcurrent with calculated
residual current
67N(Comp)
PTOC - F67NCq
RDIR - F67NCq
PTOV - F67NCq
Out of Step Protection 78 PPAM - F78A - F78B
Automatic Recloser 79 RREC - F79
Vector Jump DPHI GGIO- SPV
Over frequency 81O PTOF - F81Oq
Under frequency 81U PTUF - F81Uq
Frequency rate Change 81R PFRC - F81Rq
Lock-out 86
Double slope biased differential for Generator/
Motor/Transformer
87M-G-T PHAR - F87Hw
Breaker Failure BF RBRF L, H, T
CT Supervision 74CT GGIO- SPV
L, H
VT Supervision 74VT GGIO- SPV
Trip Circuit Supervision 74TCS SCBR - 74TCSH - 74TCSL
Remote TRIP
2
nd
h-REST PHAR - FI2S1L - FI2S1H
ARC FLASH
Multiple Profiles (A, B)
Multiple Profiles (A, B, C, D)
Optional with requested HW Expansion
Threshold key n (1,2) - m (1,2,3,4,5,6) - p (1,2,3) - q (1,2,3,4) - w (1,2,3,4,5)
Optional with requested SW Package
Standard
Work in Progress
XMR-D EQUIPMENT MANUAL
Ed. 2.9 - 02/2021
