Steps:

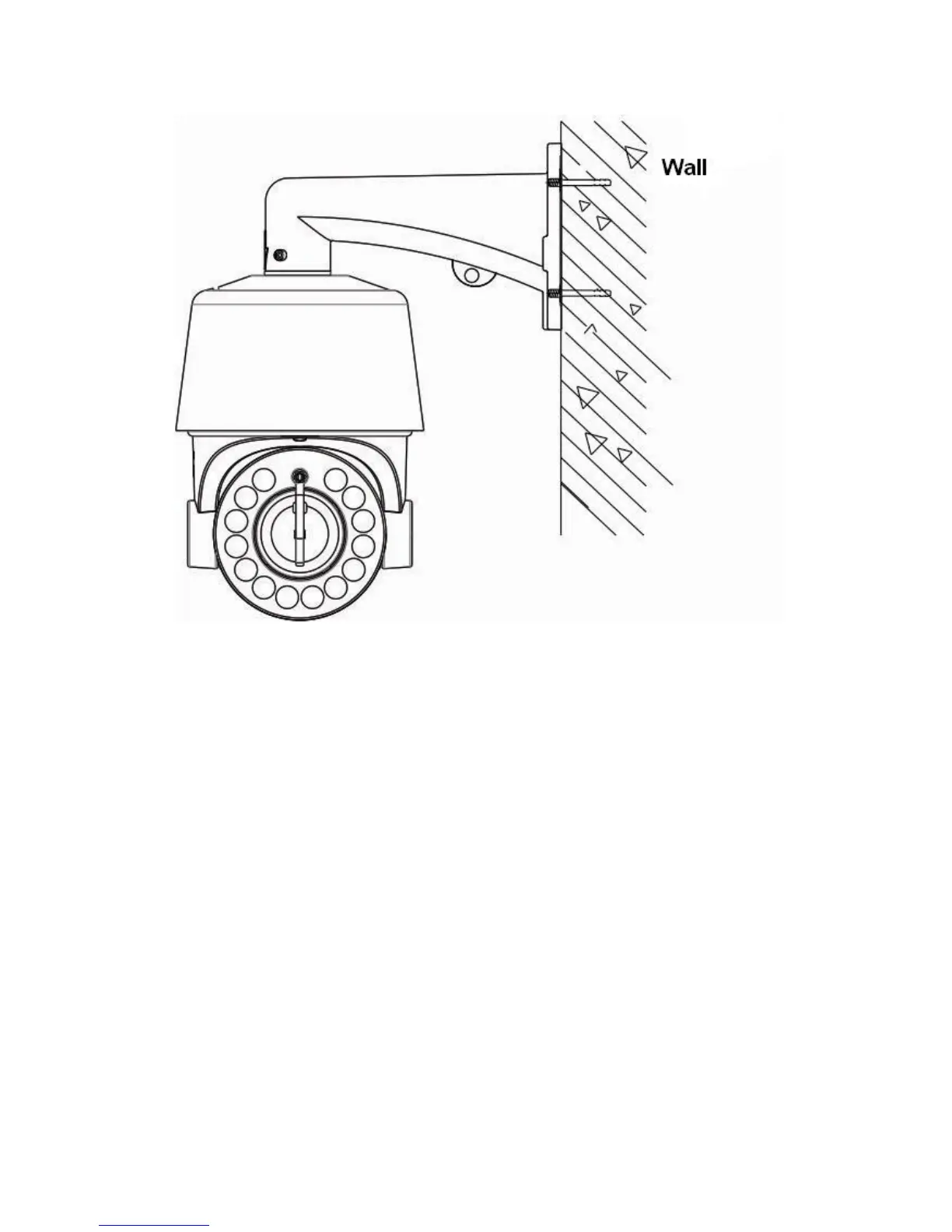

Remove the wall mounting bracket and speed dome, and lead the cable through the bracket and
set aside to the right position. Aligned the screw holes of speed dome to that of bracket, and use
M6 screws to fix. (as Figure 1)
Mark the drill holes position on wall with ink pen for bracket installation, then drill holes and punch
the expansion screws in, then fasten the bracket with M8 screws as Figure 2.
Description:
1) The wall must have sufficient load-bearing capacity.
2) Outdoor installation shall be completely sealed moisture; leads cable should closely along the
bracket wiring as Figure 1.
