Timberk T-AC07-S27-Y User Manual

IM2019
21
Checks before starting:
 Make sure that an air filter is installed.
 Make sure that air inlet and outlet grilles of the outdoor unit are not blocked by foreign
objects.
Cleaning of air filter:
 Air filter cleans the air entering the conditioner from dust and foreign particles. If the filter is
contaminated, the conditioner capacity decreases sharply.
 If the conditioner is operated permanently, the filter should be cleaned once per two weeks.
 If the conditioner is installed in a room with dusty atmosphere, then the air filter should be
cleaned more often.
 To remove the filter, open the indoor unit panel.
 Remove air filters. Clean the filter with a vacuum cleaner. If the filter is contaminated
heavily, clean it with a soft brush and wash in diluted washing solution, then dry it in a cool
place.
 While cleaning the filter with the vacuum cleaner, hold it with contaminated surface up.
While washing the filter in water, hold it with contaminated surface down.
 Do not dry the filter in the sun or near fire.
 Set the air filter to initial position and close the panel.

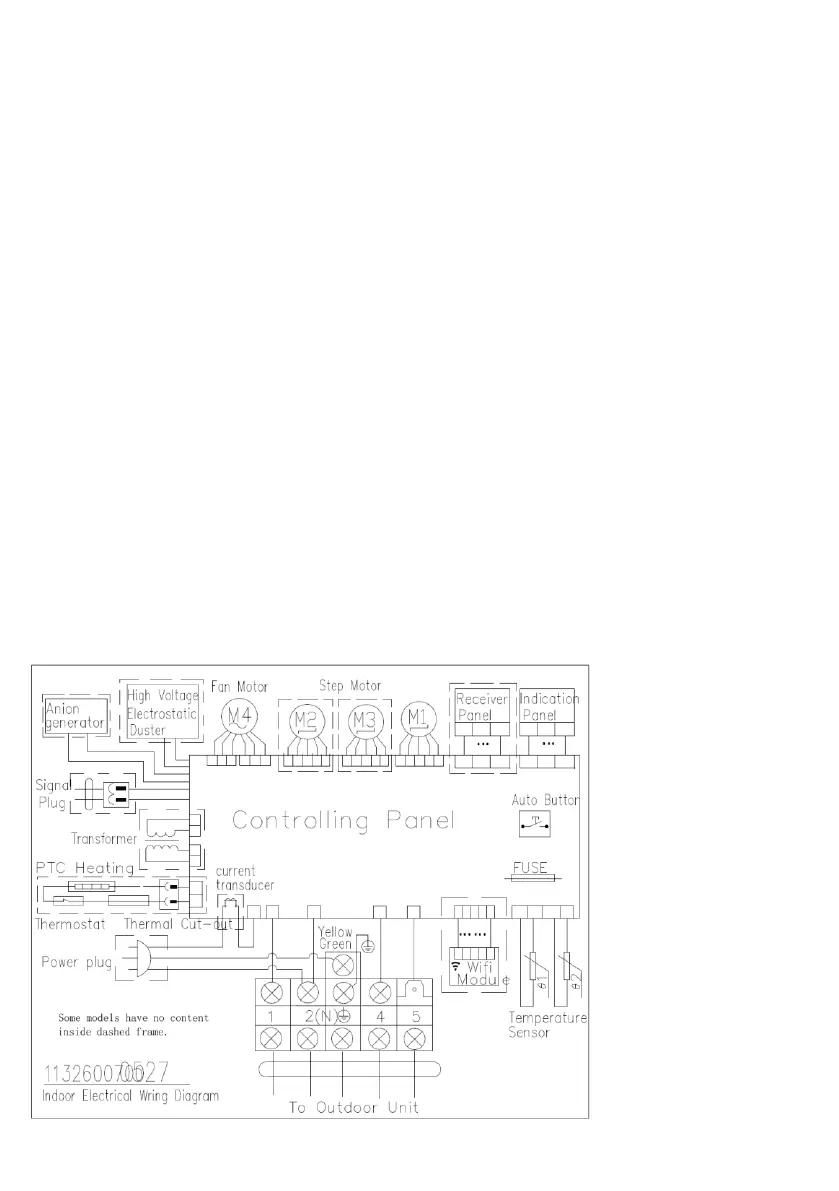

12. WIRING DIAGRAMS
T-AC07-S27-Y, T-AC09-S27-Y, T-AC12-S27-Y, T-AC18-S27-Y
