Air filter
Clogging with dust particles impairs the air conditioner operation efficiency, therefore
clean the filter no less than once in two weeks.
Filter removal/installation

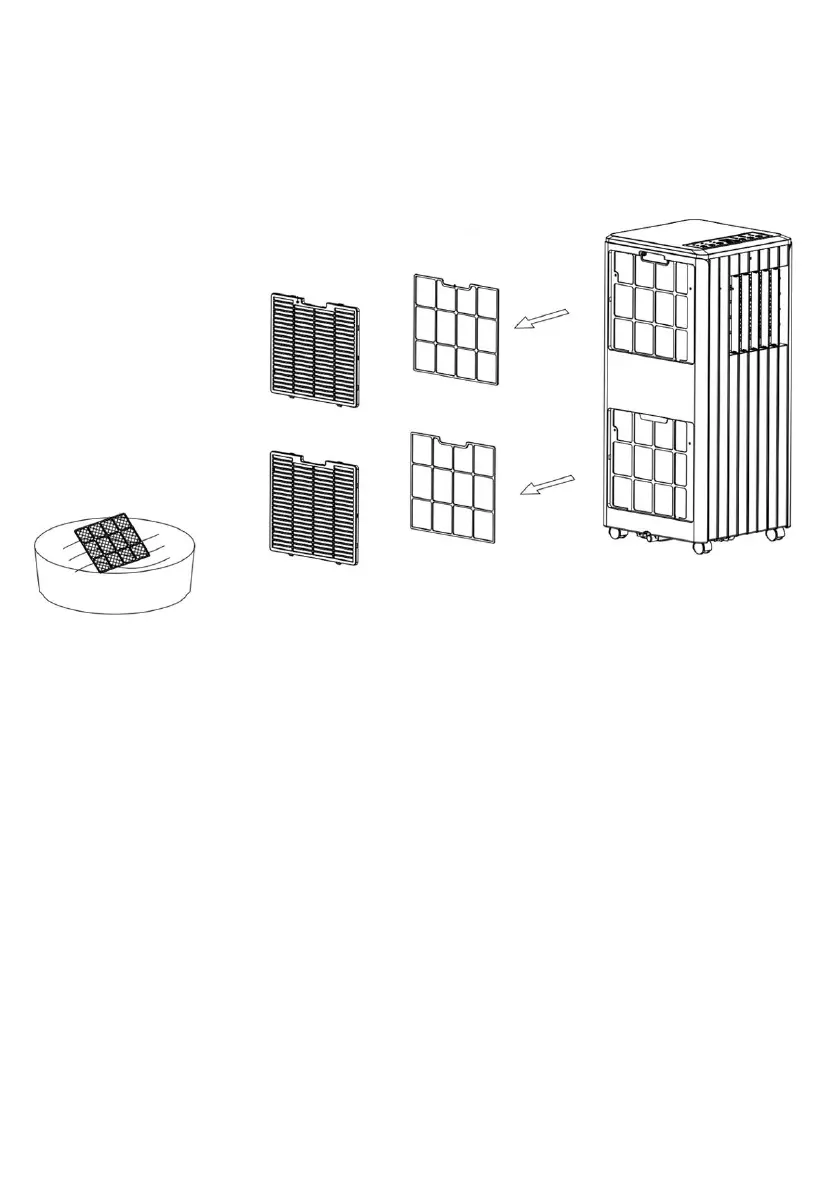

On the back of the housing, slide the plastic lock, unscrew the four screws and pull out
the filter frame (as shown in the figure below)
Fig. 10
Filter cleaning
To clean the filter, put it in warm water with a mild detergent (with a temperature of
about 40° C), rinse it and remove any dirt. Before installing the filter in the air
conditioner, it is necessary to dry it, avoiding direct sunlight.
Air intakes (heat exchangers)
Use a vacuum cleaner for cleaning
Case
Wipe the surface by a damp cloth and dry it by a soft dry cloth.
Unit Storage:
1:Turn on the machine, adjust it to low-wind ventilation mode, and maintain this state
until the drainage pipe becomes
dry, so as to keep the inside of the body in a dry state and prevent it from mildewing.
