TW 230DHB
1
1 / 55

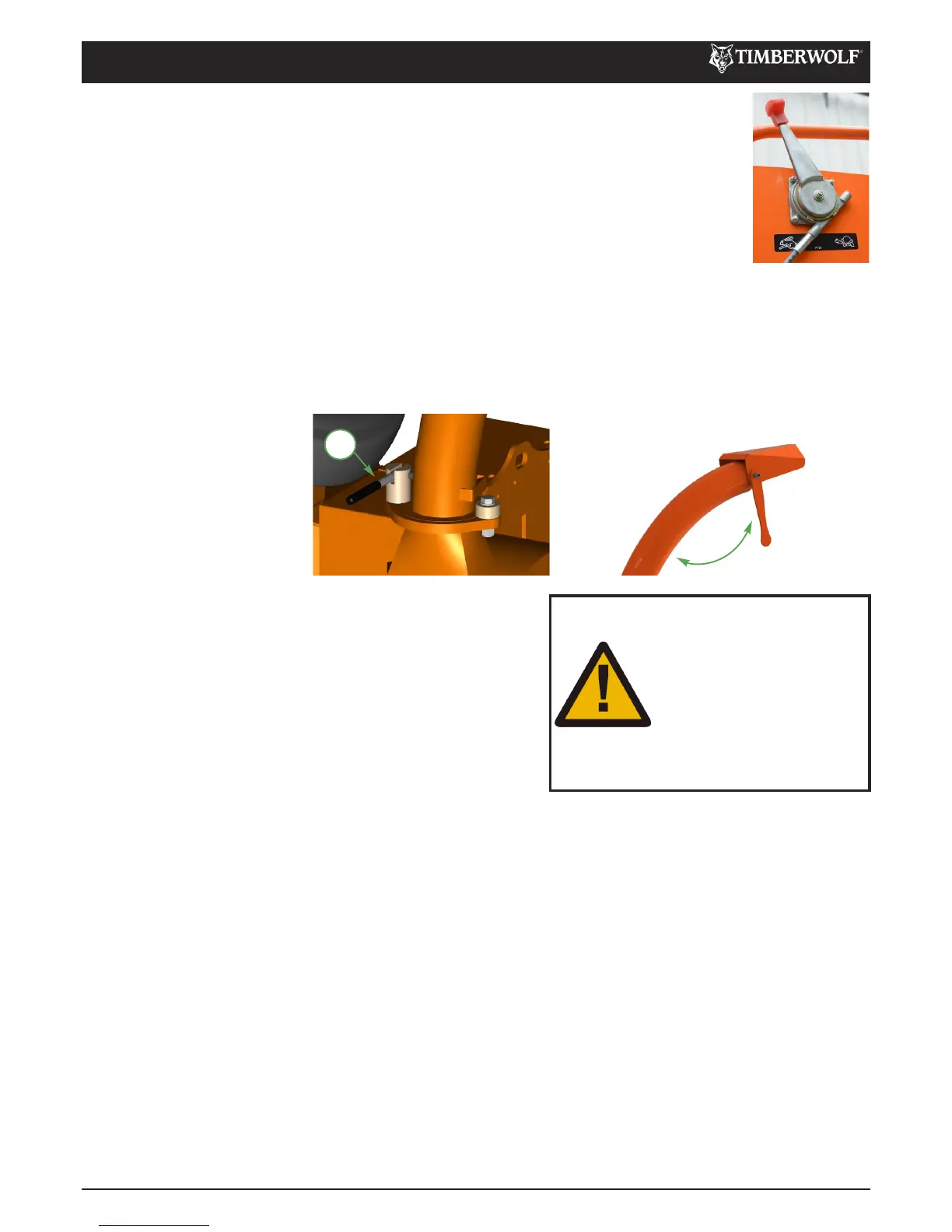

OPERATING INSTRUCTIONS
C190-0101 25.07.2017 Rev: 1.0
STOPPING THE ENGINE
ROTATION
Slacken nut using integral1
handle.
Rotate tube.2
Retighten nut.3
1
DISCHARGE CONTROLS
Controlling the discharge is an essential part of safe working.
BUCKET ANGLE
Adjust the bucket to the desired angle
using the handle provided.
Move the throttle lever to the ‘Tortoise’ to reduce the engine speed to idle.•
Leave the engine running for 1 minute.•
Turn the power switch to position 0. The engine should stop after a few seconds.•
Remove the ignition key.•
For more detailed information refer to the Engine Owner’s Manual.
Check that the chipper is level and running smoothly.•
Release the catches on the feed tray and lower. •
Perform the “before using the chipper” tests (see page 10).•
Press the green feed control. The rollers will commence turning. •
Stand to one side of the feed funnel.•
Proceed to feed material into the feed funnel. •
STARTING TO CHIP
CHIPPING
Wood up to the recommended diameter can be fed into the feed funnel. Put the butt end in first and engage it with the
feed rollers. The hydraulic feed rollers will pull the branch into the machine quite quickly. Large diameter material will
have its feed rate automatically controlled by the no stress unit.
Sometimes a piece of wood that is a particularly awkward shape is too strong for the feed rollers to break. This will
cause the top roller to either bounce up and down on the wood, or both rollers to stall. If this occurs, press the BLUE
REVERSE feed control until the material has been released. Pull the material out of the feed funnel and trim it so the
chipper can handle it.
Both feed rollers should always turn at the same speed. If one or both rollers stop or suddenly slow down it may be that
a piece of wood has become stuck behind one of the rollers. If this occurs, press the BLUE REVERSE feed control and
hold for 2 seconds - then repress GREEN FEED feed control. This should enable the rollers to free the offending piece of
material and continue rotating at the correct speed. If the rollers continue to stall in the 'forward feed' or 'reverse feed',
turn the engine off, remove the ignition key and investigate.
WARNING
D
O NOT USE OR
ATTEMPT TO START THE
CHIP
P
ER WITHOUT THE
P
ROTEC
TIVE GUAR
D
ING
AND D
ISCHARGE UNIT
SECUR
ELY IN P
LACE.
FAILUR
E TO D
O SO MAY
R
ESULT IN P
ERSONAL
INJURY OR L
OSS OF
LIFE.
CONTROLLING THE ENGINE SPEED
Always start the engine with the lever in the ‘slow’ (idle) position. With the throttle lever in the
‘fast’ position the machine is ready to chip. It MUST be fully pushed to the left to achieve a
suitable working speed. If no wood is to be chipped for a few minutes the throttle should be
returned to the ‘slow’ (idle) position.
