S
AFETY BAR
FUNNEL
DISCHARGE
BUCKET
DISCHARGE
TUBE
CLAMP
NUTS
LIGHT
BOARD
CONTROL BOX
(each side)
ENGINE BAY SIDE
PANELS
REFLECTORS
TOW HEAD
ROTOR HOUSING
REFLECTOR
PROP STAND
MANUAL
CANNISTER
AIR FILTER
ROTOR HOUSING BLADE ACCESS
LIFTING EYE
TW 230DHB
3
/ 55

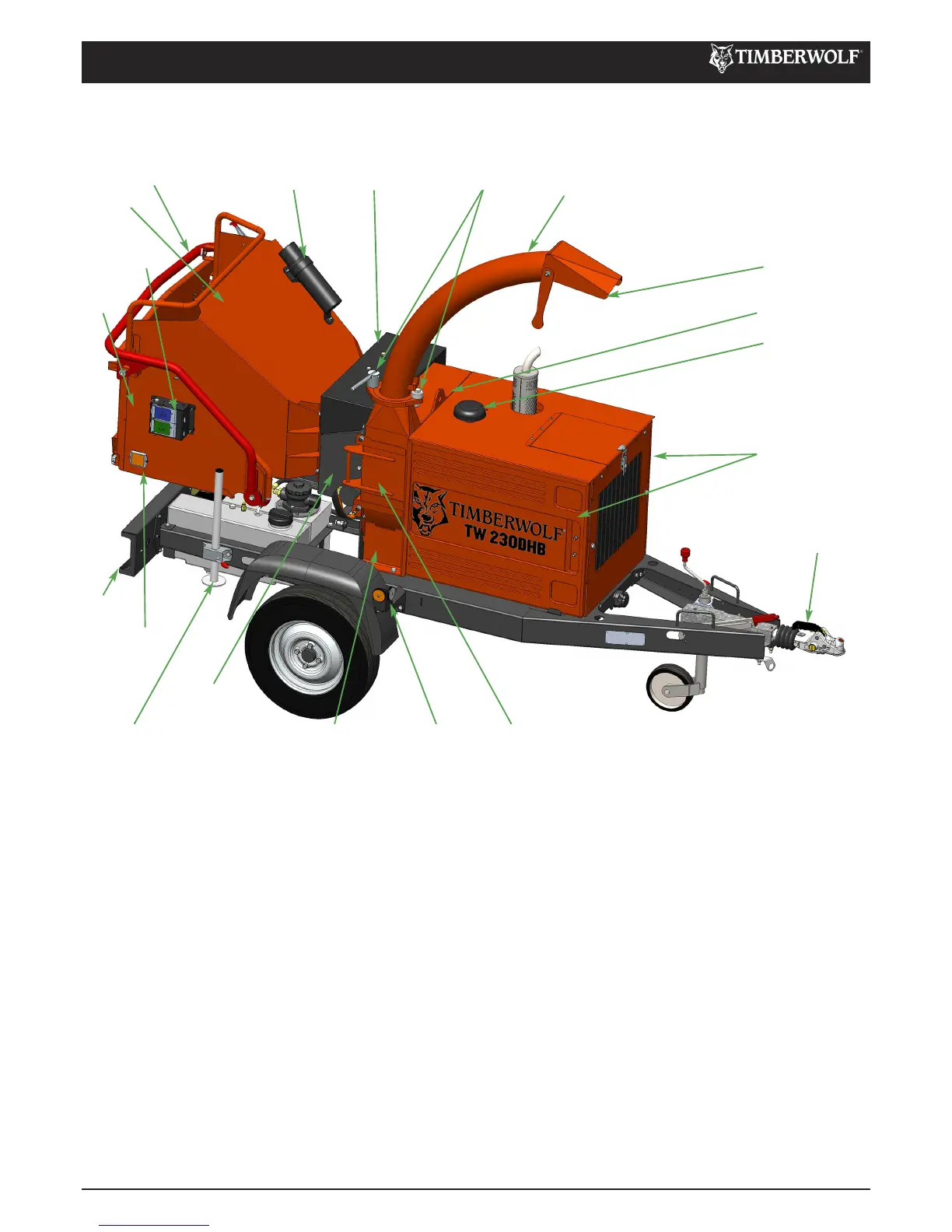

PARTS LOCATOR
C190-0101 25.07.2017 Rev: 1.0
HYDRAULIC MOTOR
GUARD
ROLLER BOX
GUARD
THE TW 230DHB HAS THE FOLLOWING FIXED GUARDS FOR PROTECTION OF THE OPERATOR, CHIPPER
AND ENVIRONMENT:
Roller Box Guard: Protects rotor housing from damage or foreign matter. Protects the user from injuries from•
moving rollers and ejected material during operation.
Hydraulic Motors Guard: Protects hydraulic motors from damage. Protects the user from injuries from heat and•
movement of motor.
Rotor Housing Blade Access: Protects user from rotational parts e.g. cutting blades. The interlocking switch•
disengages the engine when the hatch is opened to stop the chipper running.
Engine Bay Side Panels: Protects the user from rotational parts e.g. belts and pulleys, hot surfaces, and engine•
fluids. Protects machine from ingress of environmental debris.
Guards may be removed for maintenance only, as described in the Service Instruction pages of this manual. Ensure
guards remain in place throughout operation.
FEED
TRAY
