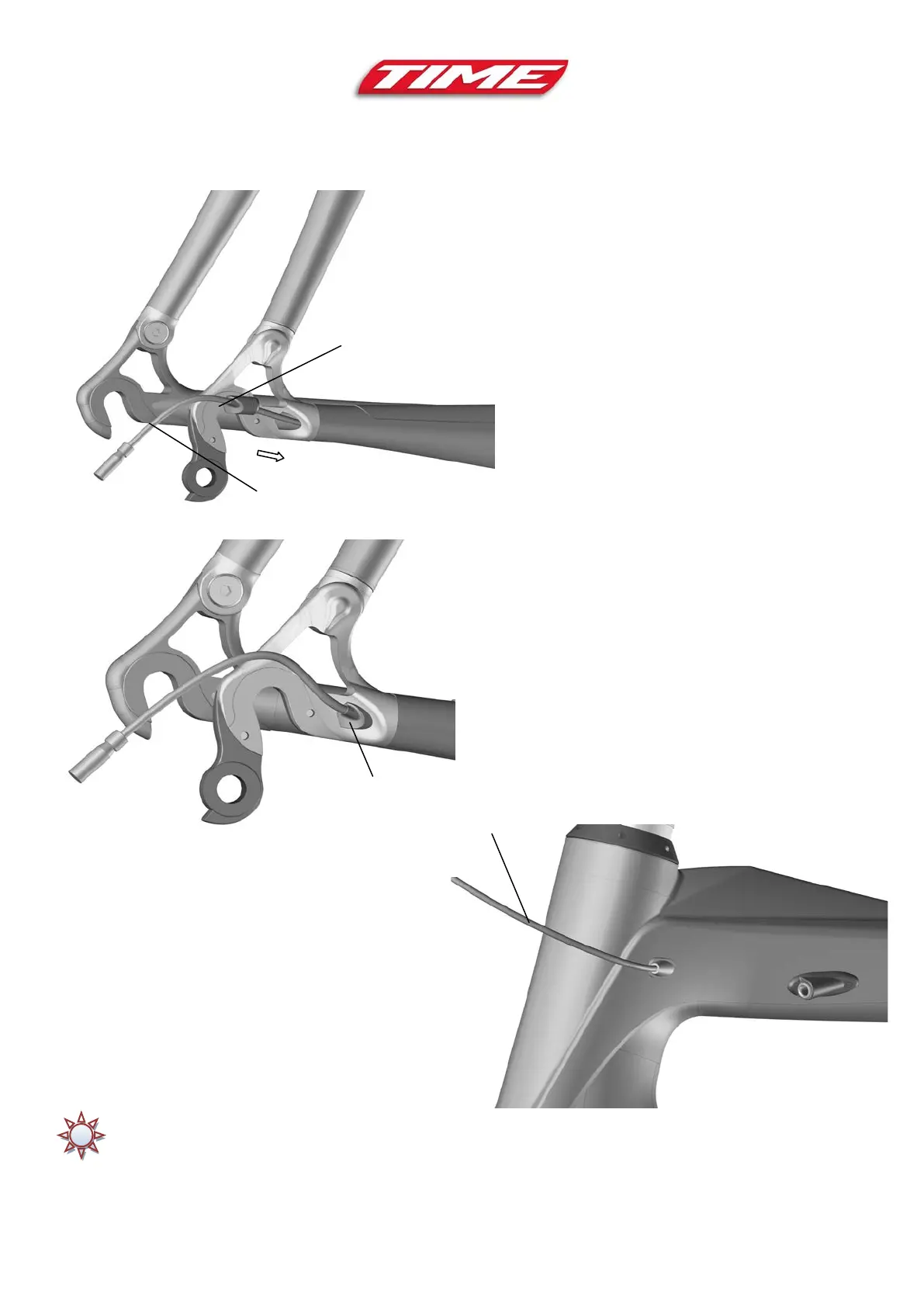

Fit the TIME dropout joint to the rear right dropout and the Campagnolo grommets to the inlet holes for
the front derailleur and junction wires (top of down tube).
(Fig 36&37)
Open the joint using the slot then slide the
part over the cable
Install the joint at the required distance
Slightly moisten or lubricate the joint so that
it slides more easily into its housing
Position it correctly then push firmly into
place
Assembling CAMPAGNOLO grommets (fig.38)
- Head tube
- Seat tube towards front derailleur dropout
The groupset is now ready to be installed. Refer to Campagnolo recommendations regarding derailleur
installation and adjustment procedures.
Joint in
place
Figure 37
Rear dropout
joint
Cable to rear
derailleur (green ring)
Figure 36
Cable to controls
(Red ring)
