H) ASSEMBLING THE REAR BRAKE CABLE
1) Passage for the rear brake cable housing
TIME FLUIDITY modules have an internal passage for the rear brake cable housing

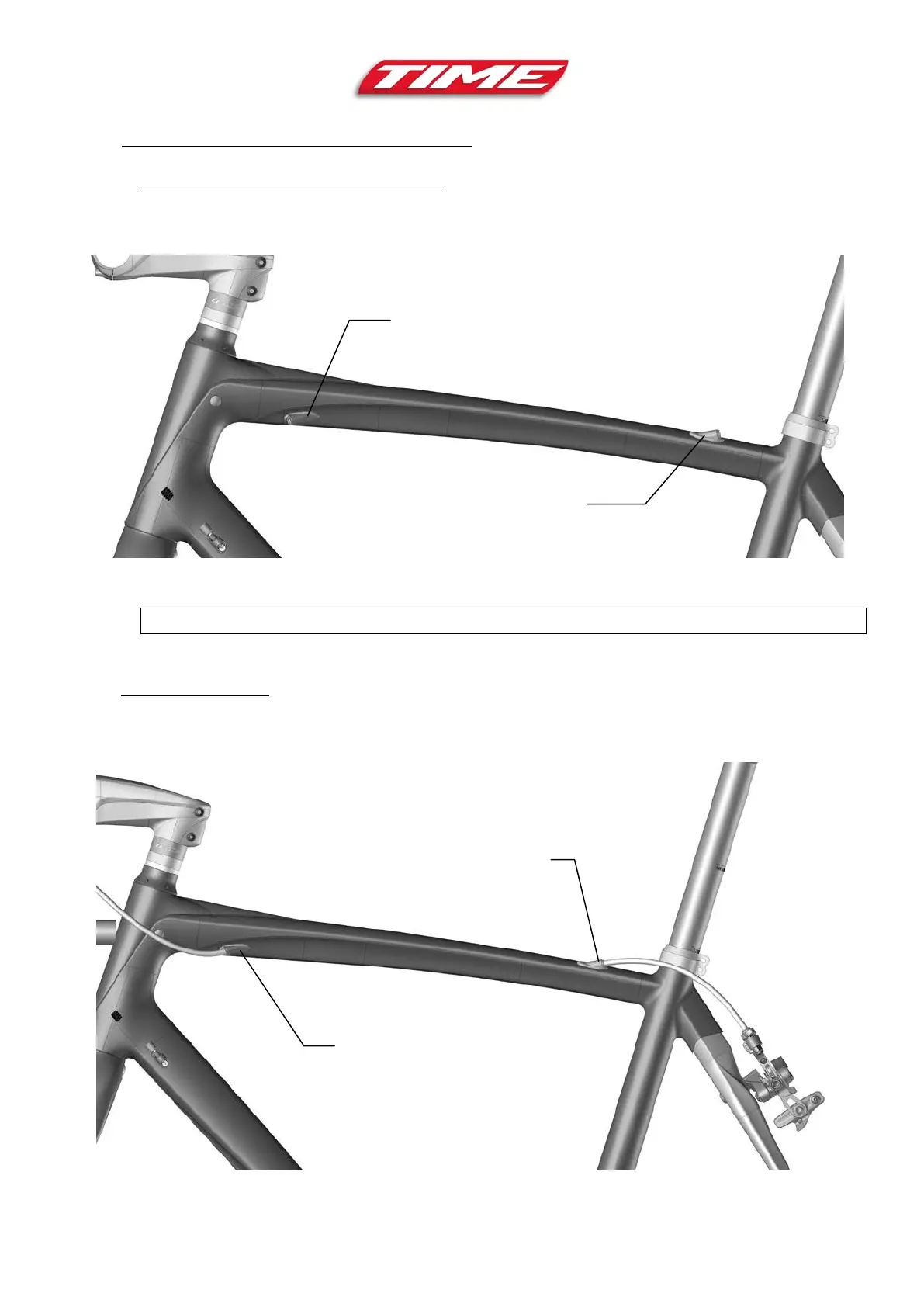

A guide tube guides the housing in the upper tube of the frame (fig. 43)
Important: the cable housing runs entirely through the frame and must not be interrupted
2) Cable housing seals
2 x Ø 4 o-rings are supplied with the module. They must be installed on the brake cable
housing to prevent any displacement during use (P/N: 55007196) (fig. 44)
Inlet of the
brake cable
housing
Outlet of
the brake
cable
Figure 43
Seal
Seal
Figure 44
