F) ASSEMBLING THE FRONT DERAILLEUR
Before assembling, read the manufacturer's specifications sheet for the front derailleur.
TIME Fluidity modules and frames are designed to accommodate a braze-on front derailleur

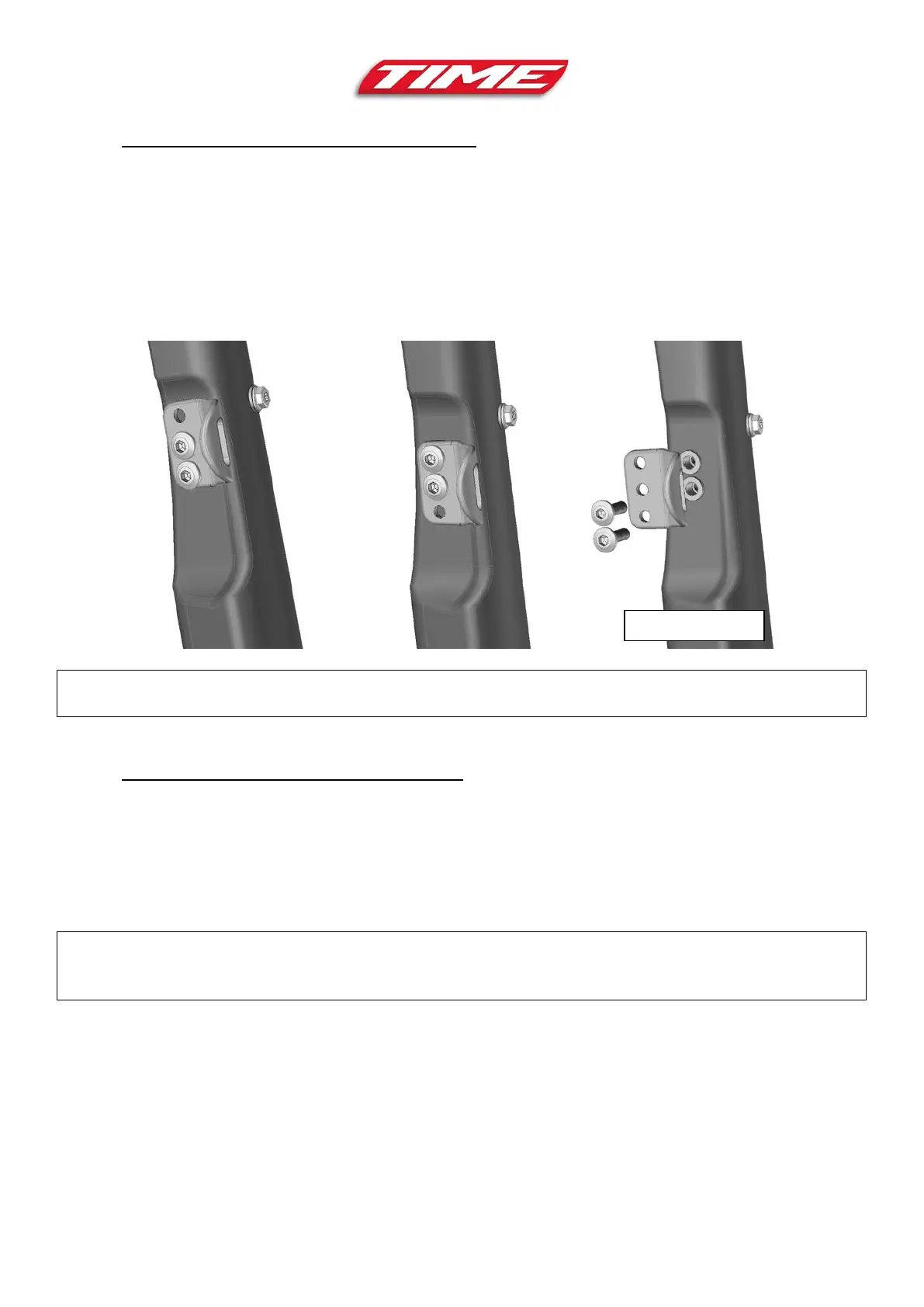

The derailleur hanger has 2 positions
- High position for standard chainsets (53 tooth sprocket) (fig. 40)
- Low position for compact chainsets (50 tooth sprocket) (fig. 41)
- Tighten the screws (P/N: 600045041) to 6 Nm using a torque wrench
Important: never force the angle position of the derailleur hanger as this could cause permanent damage
to the frame
G) ASSEMBLING THE REAR DERAILLEUR
Before assembling, read the manufacturer's specifications sheet for the front derailleur.
The TIME module is compatible with standard 10 and 11 speed deraillleurs
- Slightly lubricate the fixing screw prior to assembly
- Standard thread M 10 X 100
Important: If the hanger needs to be aligned, this operation should be performed by a professional with
suitable tools
Significant or repeated distortion may affect the derailleur hanger's robustness
High position
Low position
Fig.40
Fig.41
Exploded view
