Assembling the bicycle
Before you start assembling the bicycle, check that the accessories and components are compatible with
the TIME module.
To adjust the TIME Fluidity module to the user's size and position, the steerer tube length and seat height
will have to be adjusted.
Contents:
A) Adjusting the seat height
B) Adjusting the steerer tube height and assembling the stem
C) Selecting the type of gear-shifting system
1 Assembling a mechanical gear-shifting system
2 Assembling an electronic gear-shifting system
a) SHIMANO Di2
b) CAMPAGNOLO EPS
D) Assembling the bottom bracket
E) Assembling the brake calipers
F) Assembling the front derailleur
G) Assembling the rear derailleur
H) Assembling the rear brake cable
I) Adjustments and maintenance
1 Adjusting the headset
2 Replacing the headset bearings
3 Replacing the rear derailleur hanger
4 Cleaning
A) Adjusting the SEAT HEIGHT
The TIME Fluidity Module is delivered with a specific seat post that perfectly fits the frame profile
It is also compatible with the specific set for electronic versions
1) Seat installed on the seat post
Check the position of the lower cradle

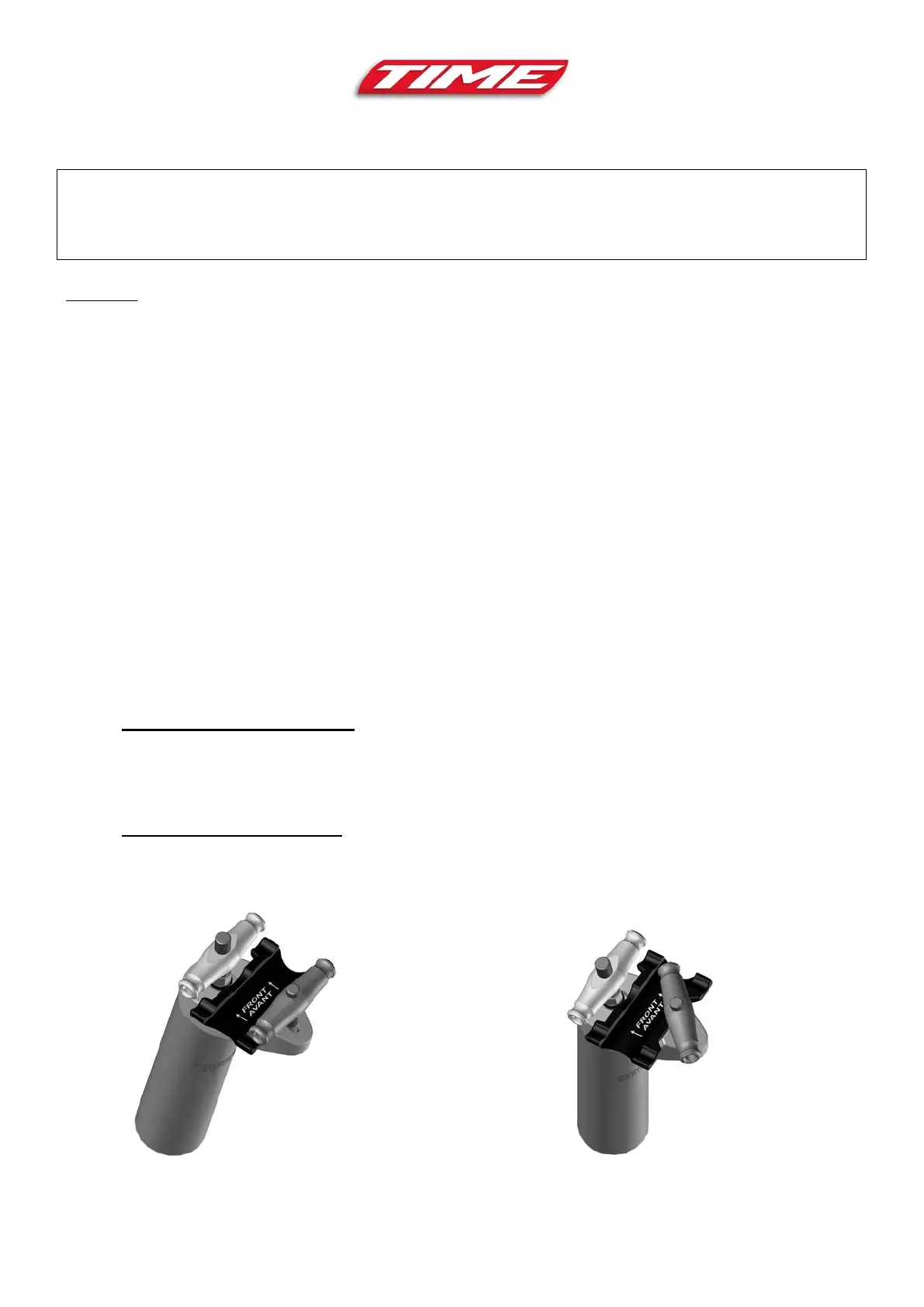

Loosen the rear clamp screw to insert the seat clamp wires (fig. 1)
Pre-tighten the seat on the clamp to adjust its horizontal position (fig. 2)
