5.2 Connect the incoming 230V 50Hz mains supply and outgoing
load cables to the relevant terminals ensuring correct polarity
is observed and that all bare conductors are sleeved
(see section 6. Connection Diagram).
5.3 There is a removable cable blank to cover the front cable exit
if this feature is not required.
5.4 If the front cable exit is required, for instance to connect to
a washing machine, use one of the cable clamps provided
to secure the outgoing cable.
5.5 Secure the unit to the back box with the M3.5mm screws provided,
forming cables during installation to avoid entrapment, and
cable damage.
FSTWiFiTGV – Wi-Fi Controlled IP66 Fused Spur
5.6 IMPORTANT Switch off the electricity at the fuse box by removing
the relevant fuse or switching off the circuit breaker before
proceeding with the installation.

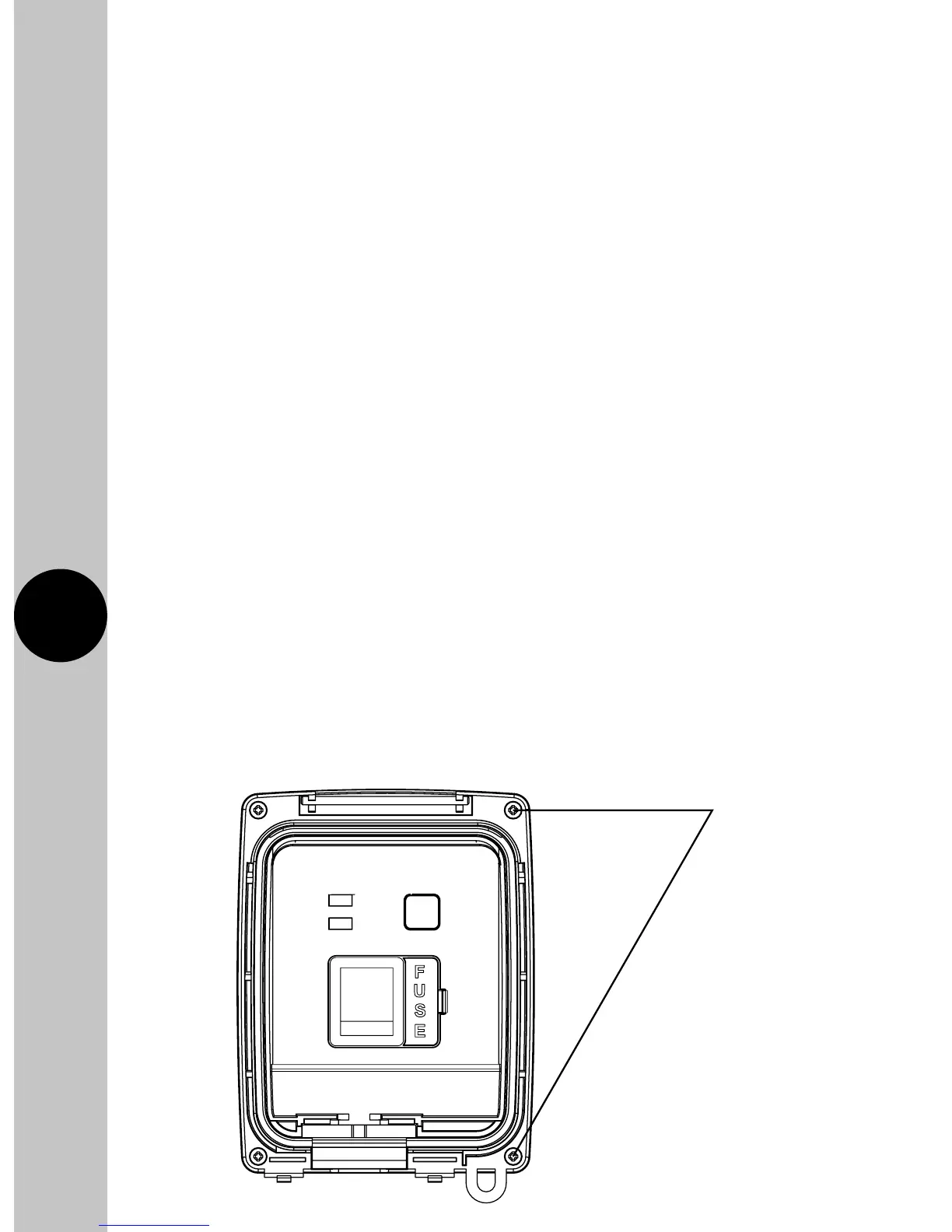

5.7 Using a Phillips screwdriver, separate the faceplate from the back
box by removing the four tapped screws located in each corner.
Tapped
screws
To Next Page
