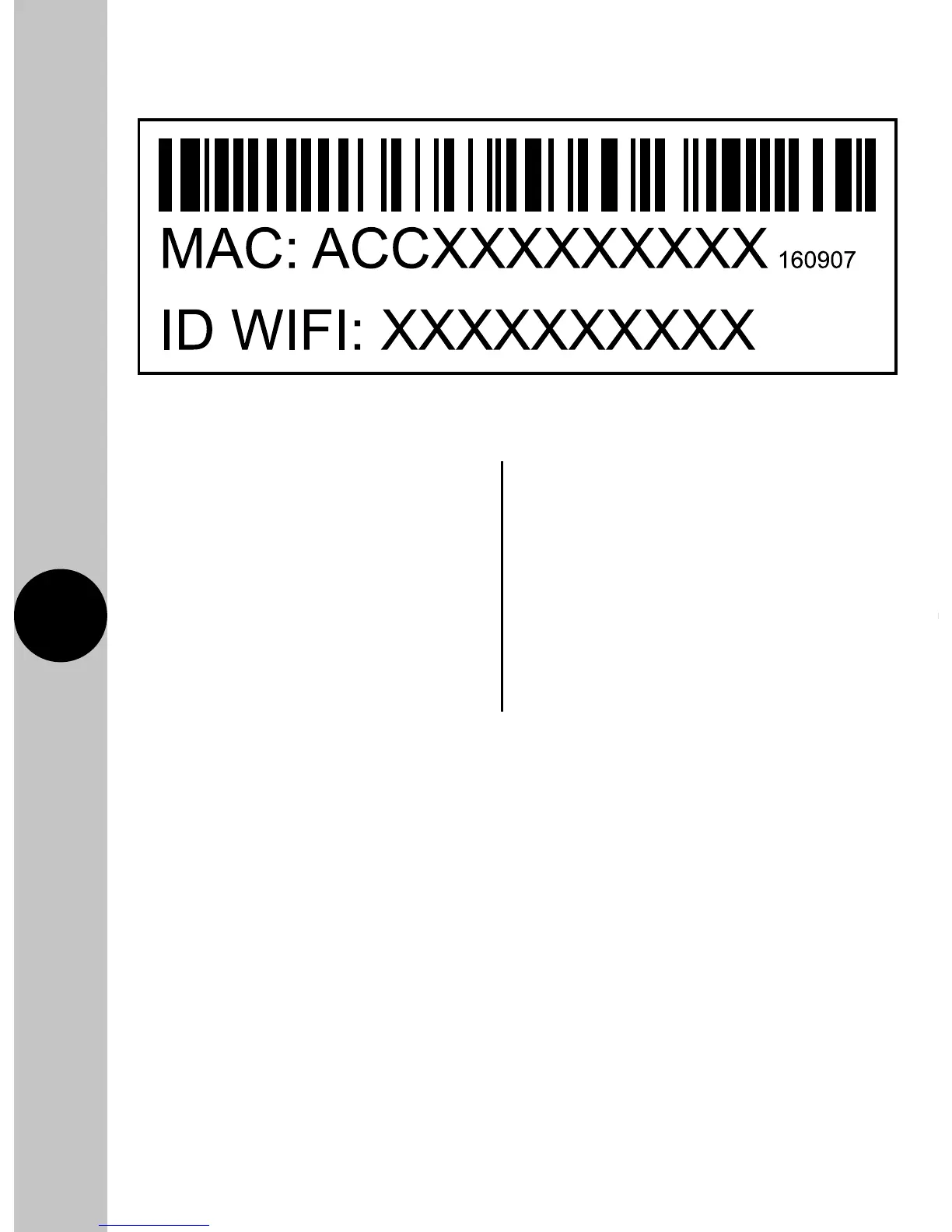

FSTWIFI MAC address and ID Wi-Fi number label
Important: Do not remove this label from the side of the product.
4. Contents
FSTWIFI
• 1x FSTWIFI time switch
• 2x Mounting screws
• 1x Cable clamp
• 1x Cable blank
• 1x Instruction manual
Note: all instructions are to be left with the customer after installation.
5. Installation
FSTWiFi – Wi-Fi Controlled Fused Spur
Note: The unit is designed to replace an existing single gang connection unit
or fixed appliance outlet giving timed mains output, protected by a BS1362
fuse. The unit is capable of forming part of a ring main (the terminals can
accept 2x 2.5mm sq. cables), or terminating a spur off the ring main.
The unit requires a minimum depth of 25mm within the box.
5.1 Ensure the mains supply is switched off and the circuit supply
fuses are removed or the circuit breaker is turned off.
FSTWIFITGV
• 1x FSTWIFITGV time switch
• 2x 20mm cable glands
• 1x Instruction manual
