Timotion MA2 - Cable

User Manual-MA2
Version C January 2021
11 of 24
11
φ8.5 mm
Φ2.7 mm
Φ1.8mm
Φ7.5mm
Φ2.7 mm
Signal cable: 20AWG
Power cable: 14AWG
Power cable: 14AWG

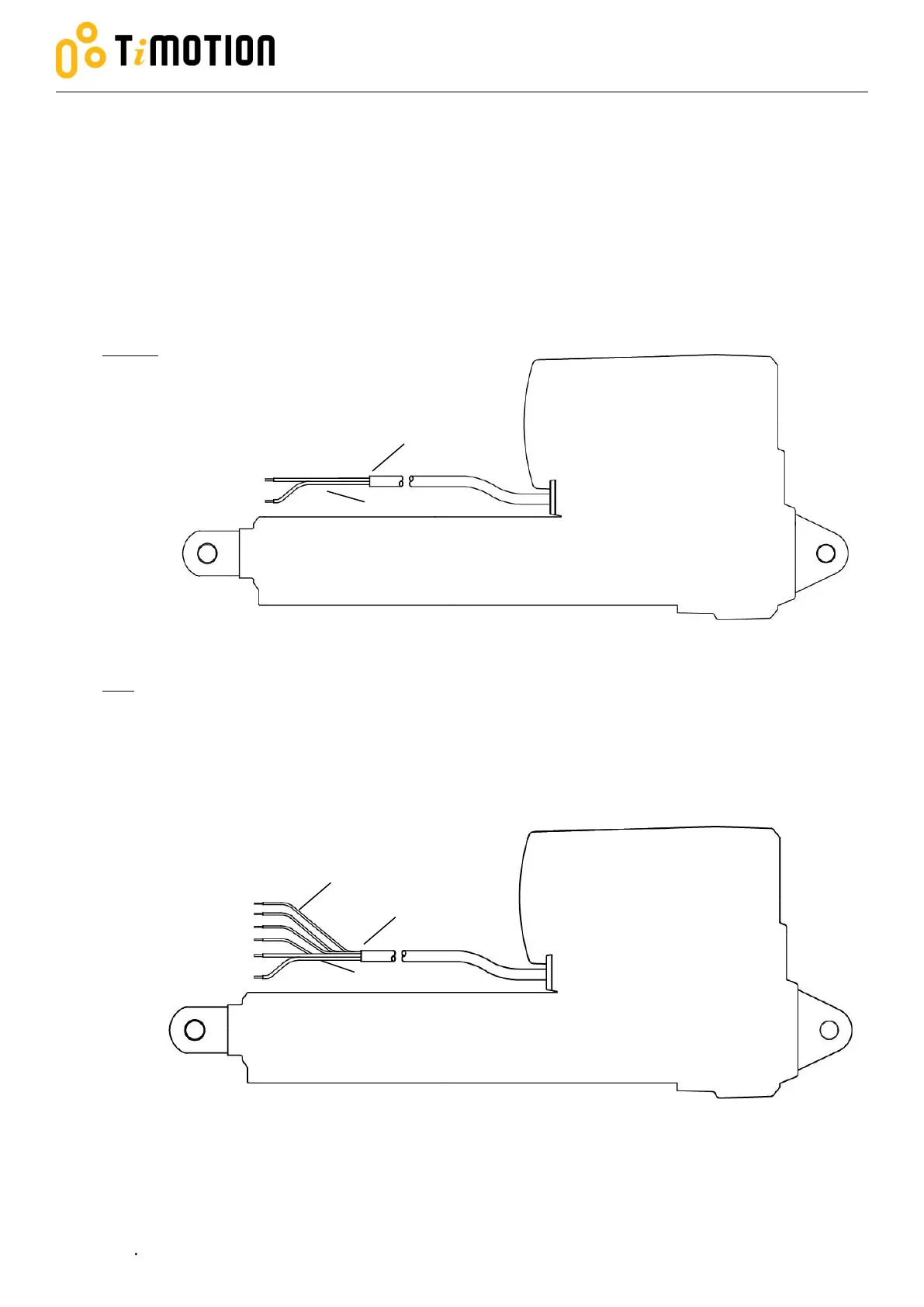

Cable 2.2.2
The actuator is supplied with a power cable (with/without signal wire). The standard cable, for industrial
applications, has/have flying leads in the end for the user’s equipment connections.
*Please refer to the approved drawing of any customized cable/connector.
Cable without signal:
Cable with signal:
