Timotion MA2 - Two Limit Switches and Double Hall Sensors

User Manual-MA2
Version C January 2021
18 of 24
18

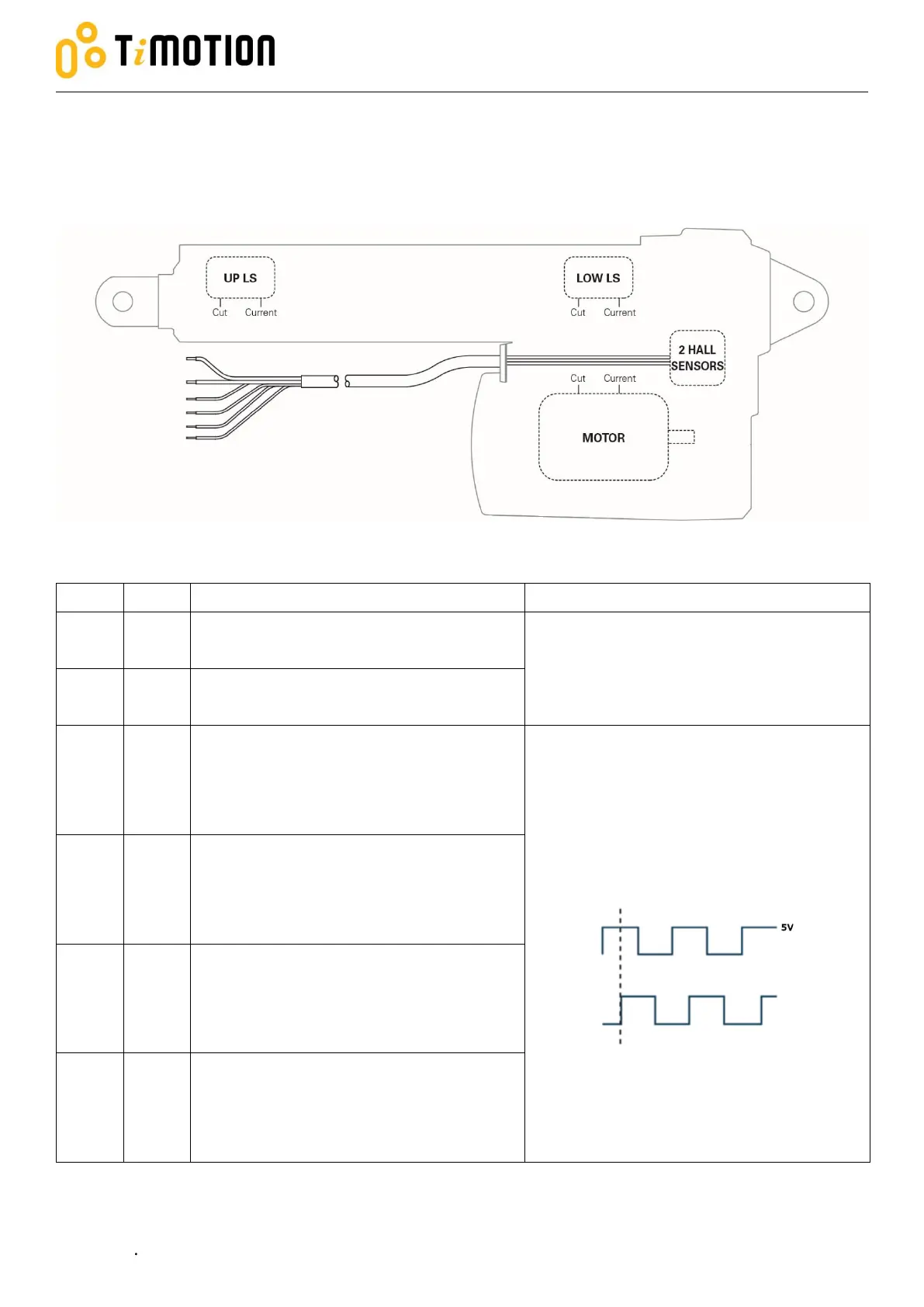

Two limit switches and double Hall sensors 2.3.6
The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to
the end of each stroke, and with double Hall sensors sending position signal output.
Wire
AWG
Description
Spec
Red
14
Connect to Vm+ to extend the actuator
Connect to Vm- to retract the actuator
24V version: Input voltage 18~32 V DC
12V version: Input voltage 9~16 V DC
Black
14
Connect to Vm- to extend the actuator
Connect to Vm+ to retract the actuator
Red
20
+5V DC input signal power for Hall sensor
board.
Hall sensor output signal type is square
wave with Hi voltage 5V and Low voltage
0V, and with the output current of 0.1A
(please refer to the approval drawing for the
resolution and details).
S1 leads 90 degrees’ phase to S2.
Hall sensor circuit is independent to motor
power circuit.
White
20
Output Hall sensor signal S1 during the
actuator moves.
Blue
20
Output Hall sensor signal S2 during the
actuator moves.
Black
20
Hall sensor signal ground.
S1
S2
Red
Black
Red
White
Blue
Black
