Version C January 2021
2. Installation
Mechanical installation2.1

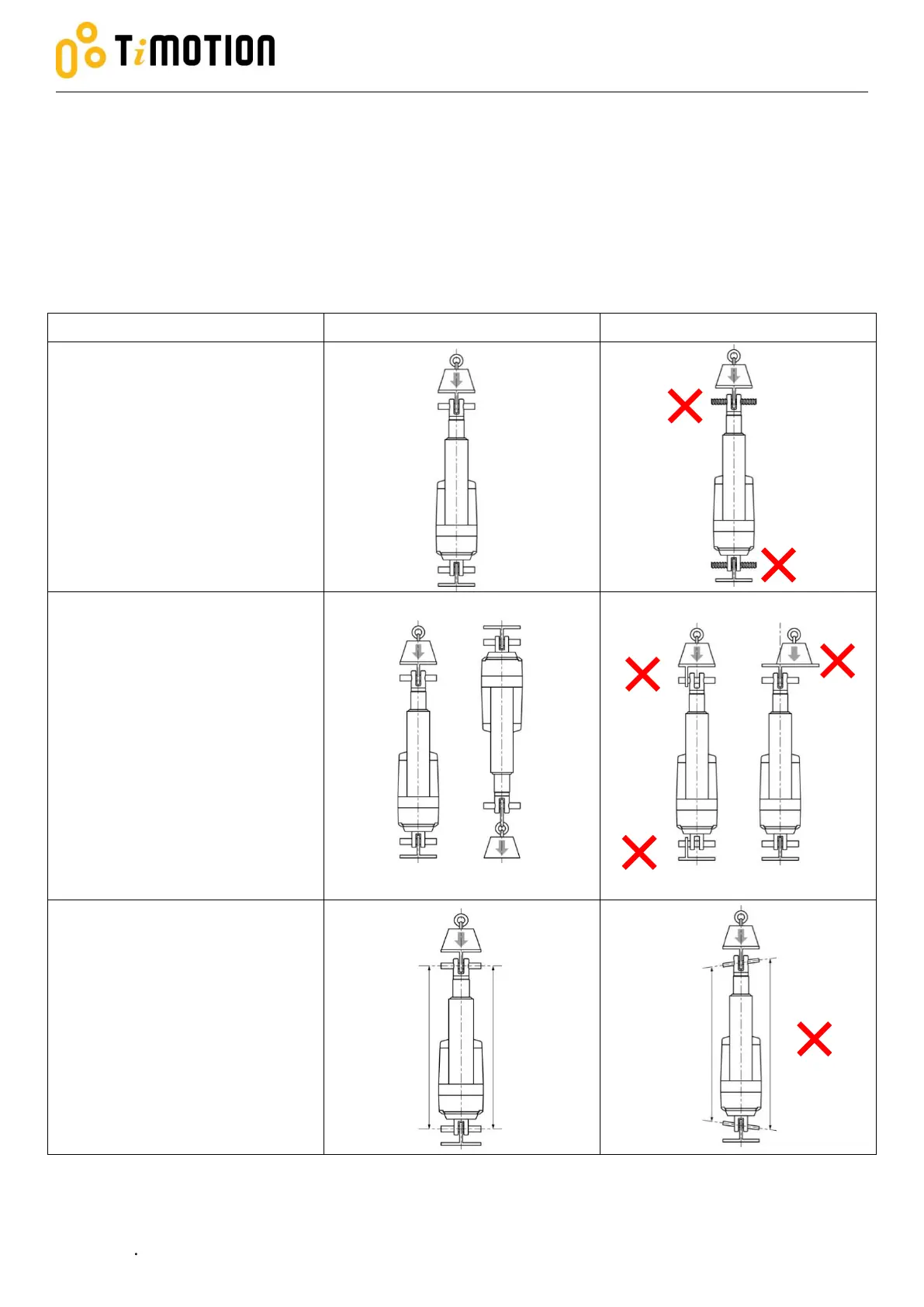

Mounting notice 2.1.1
Use solid mounting pins with the proper dimension and support them at both ends.
Please mount the actuator with
the mounting pins of correct
dimension and without threaded at
both ends of the attachments.
Do not mount the actuator with
the pins in different rotated angles,
this could cause stress on the nut
during operation.
The load should act along the
stroke axis of the actuator from
the front attachment, inner tube to
the rear attachment. Off center or
side loads may cause bending and
lead to failure.
Be sure the mounting pins must
be parallel to each other. If the
pins are not parallel to each other
the actuator might be bend and
could be damaged.
