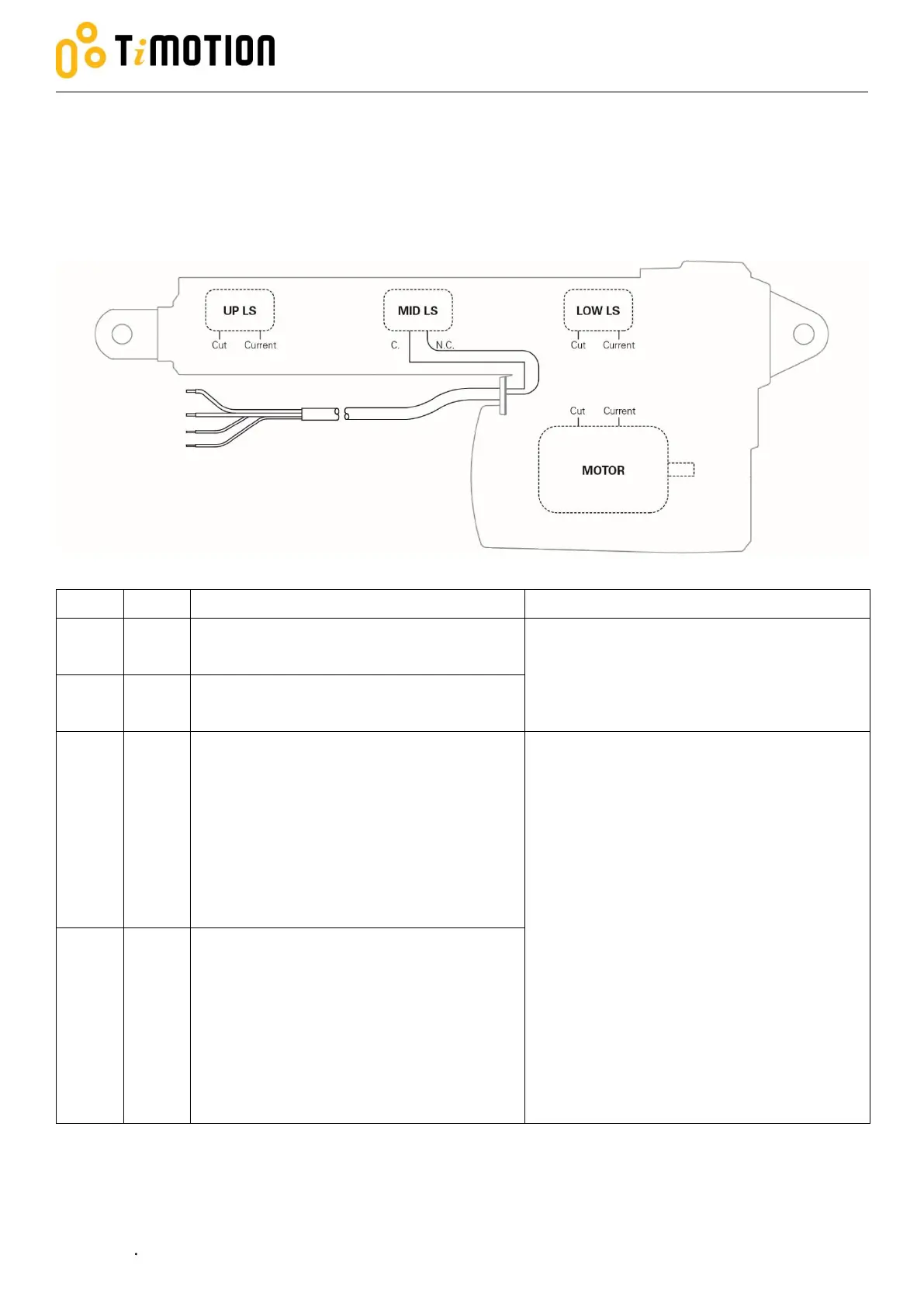

Two limit switches to cut the current and an additional limit switch for 2.3.3
signal output
The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to
the end of each stroke, and an additional limit switch sends out the signal at specific stroke positions.
*Please refer to section 2.3.2 for cut current module.
Wire
AWG
Description
Spec
Red
14
Connect to Vm+ to extend the actuator.
Connect to Vm- to retract the actuator.
24V version: Input voltage 18~32 V DC.
12V version: Input voltage 9~16 V DC.
Black
14
Connect to Vm- to extend the actuator.
Connect to Vm+ to retract the actuator.
White
20
Connect to up limit switch normal closed
pin (N.C.)
The signal is potential free and independent
from the motor power circuit.
The LS opens (N.O. signal) when the
actuator moves to the position where the
additional limit switch is triggered.
The additional limit switch, installed in
position by customer request, is factory
preset and non-adjustable.
Connect the additional limit switch signal
with max 32V, <1A.
Black
20
Connect to low limit switch normal closed
pin (N.C.)
Red
Black
White
Black
