Version C January 2021
Outer tube reed sensor adjustment 2.1.3

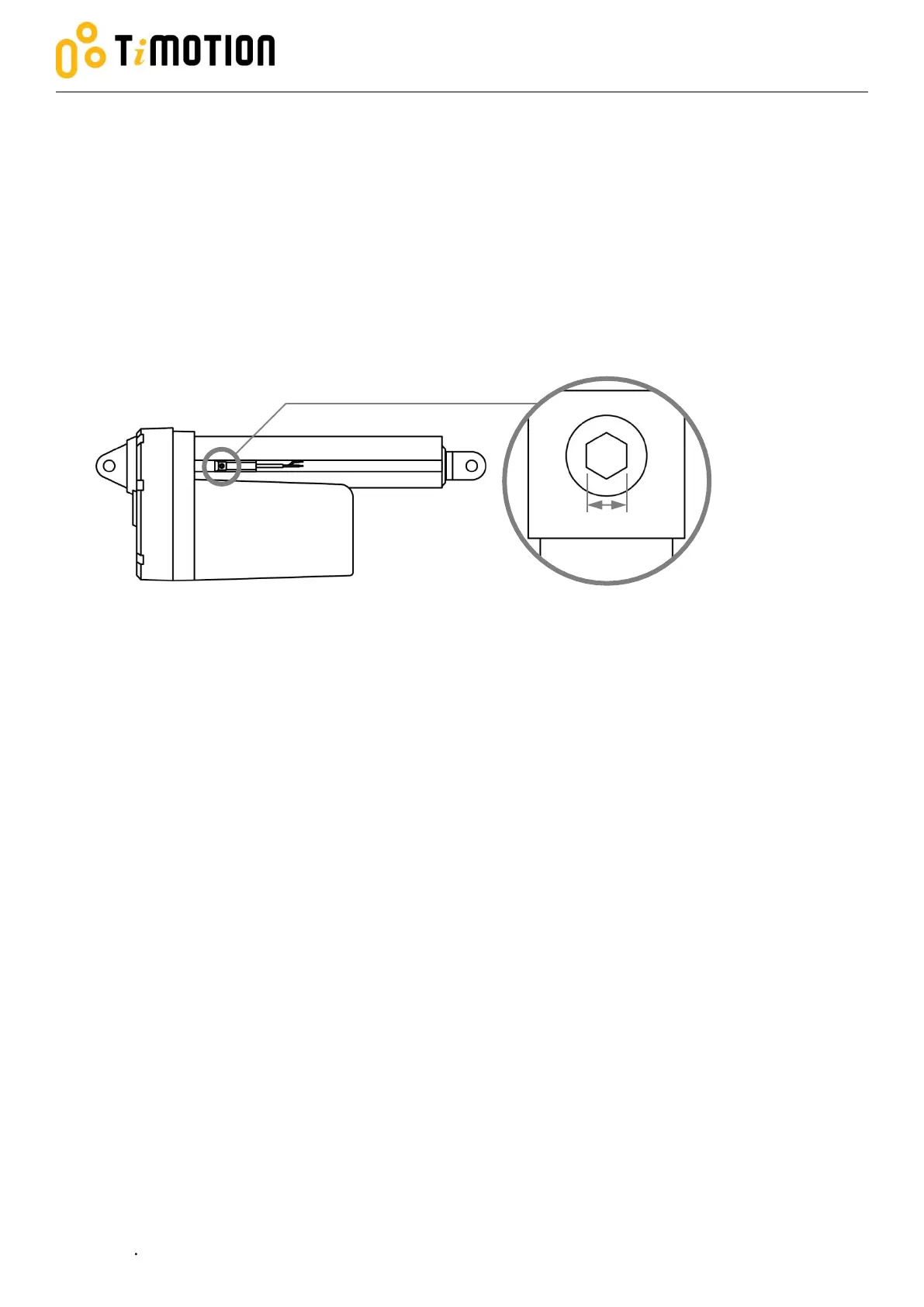

The external limit switches are mounted in the two slots at the side of the cover tube.
Use the 2.5mm Allen key inner hexagon to position and lock the reed sensor.
Ensure the reed sensor doesn’t meet other magnetic parts, as this may cause incorrect measurements.
The torque required to secure the screw to fix the reed sensor is within 1.5 Nm
The signal is potential free and independent from the motor power circuit.
Connect the reed sensor with max 32V, <1A.
The reed sensors are N.C..
