Timotion MA2 - Two Limit Switches with POT to Cut the Current and an Additional Limit Switch for Signal Output

User Manual-MA2
Version C January 2021
20 of 24
20

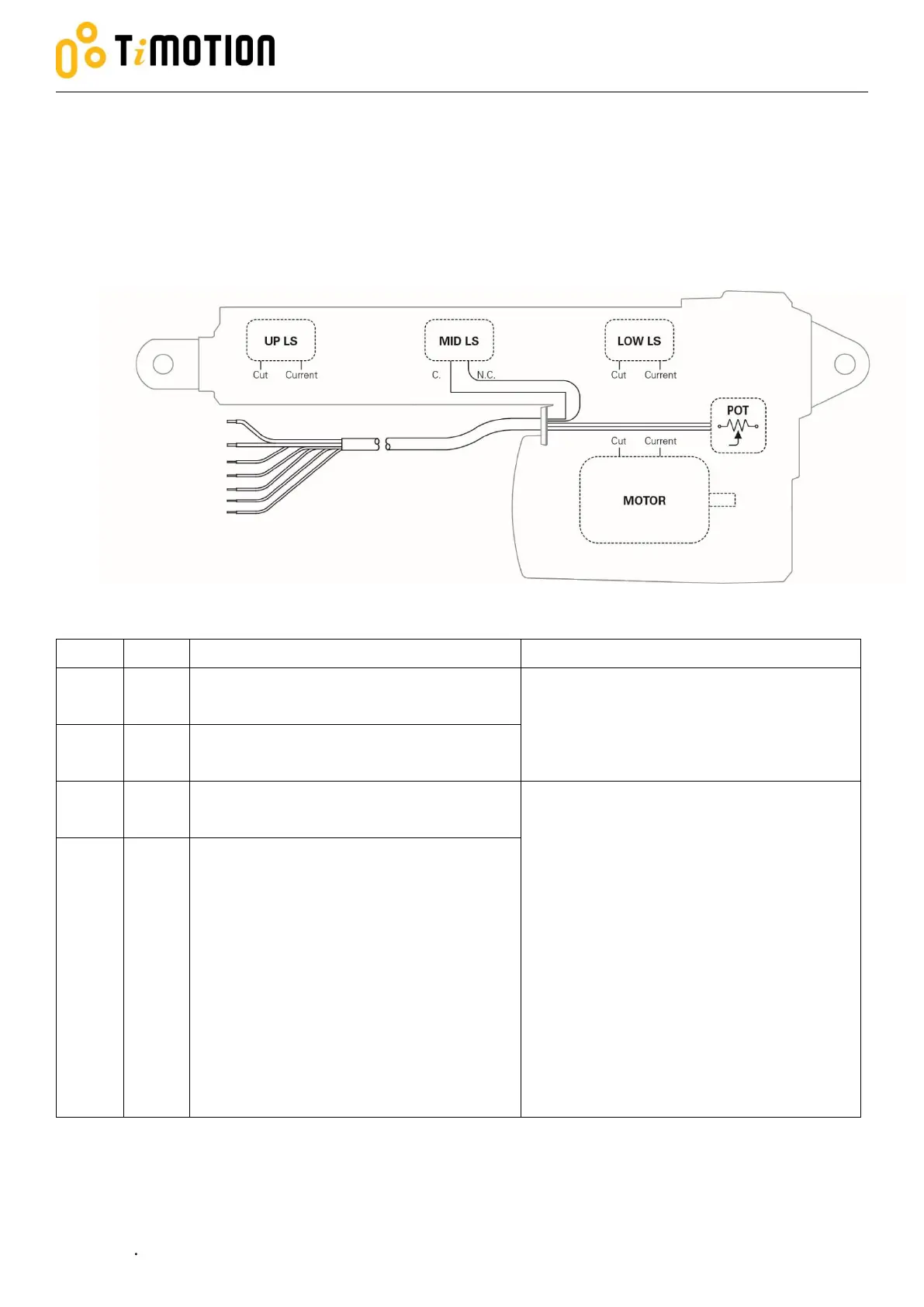

Two limit switches with POT to cut the current and an additional limit 2.3.8
switch for signal output
The actuator is equipped with two limit switches to cut the current of the motor when the actuator
moves to the end of each stroke, and an additional limit switch sends out the signal at specific stroke
positions, along with POT position signal output.
Wire
AWG
Description
Spec
Red
14
Connect to Vm+ to extend the actuator
Connect to Vm- to retract the actuator
24V version: Input voltage 18~32 V DC
12V version: Input voltage 9~16 V DC
Black
14
Connect to Vm- to extend the actuator
Connect to Vm+ to retract the actuator
Brown
20
Connect to middle limit switch normal
closed pin (C.)
The signal is potential free and
independent from the motor power circuit.
The LS opens (N.O. signal) when the
actuator moves to the position where the
additional limit switch is triggered.
The additional limit switch, installed in
position by customer request, is factory
preset and non-adjustable.
Connect the additional limit switch signal
with max 32V, <1A.
Grey
20
Connect to middle limit switch normal
closed pin (N.C.)
Yellow
Green
White
Red
Black
Red
Black
Brown
Grey
White
Red
Black
