User Manual-MA2
Version C January 2021
21 of 24
21
Black
20
POT signal ground.
POT output signal type is the voltage in
proportion to the reference voltage input,
which is relative to the position of the
actuator.
The recommended power of the POT input
is <2W.
The brand and spec of the potentiometer
embedded is Bourns, 0~10Kohm, 10 turns.
Red
20

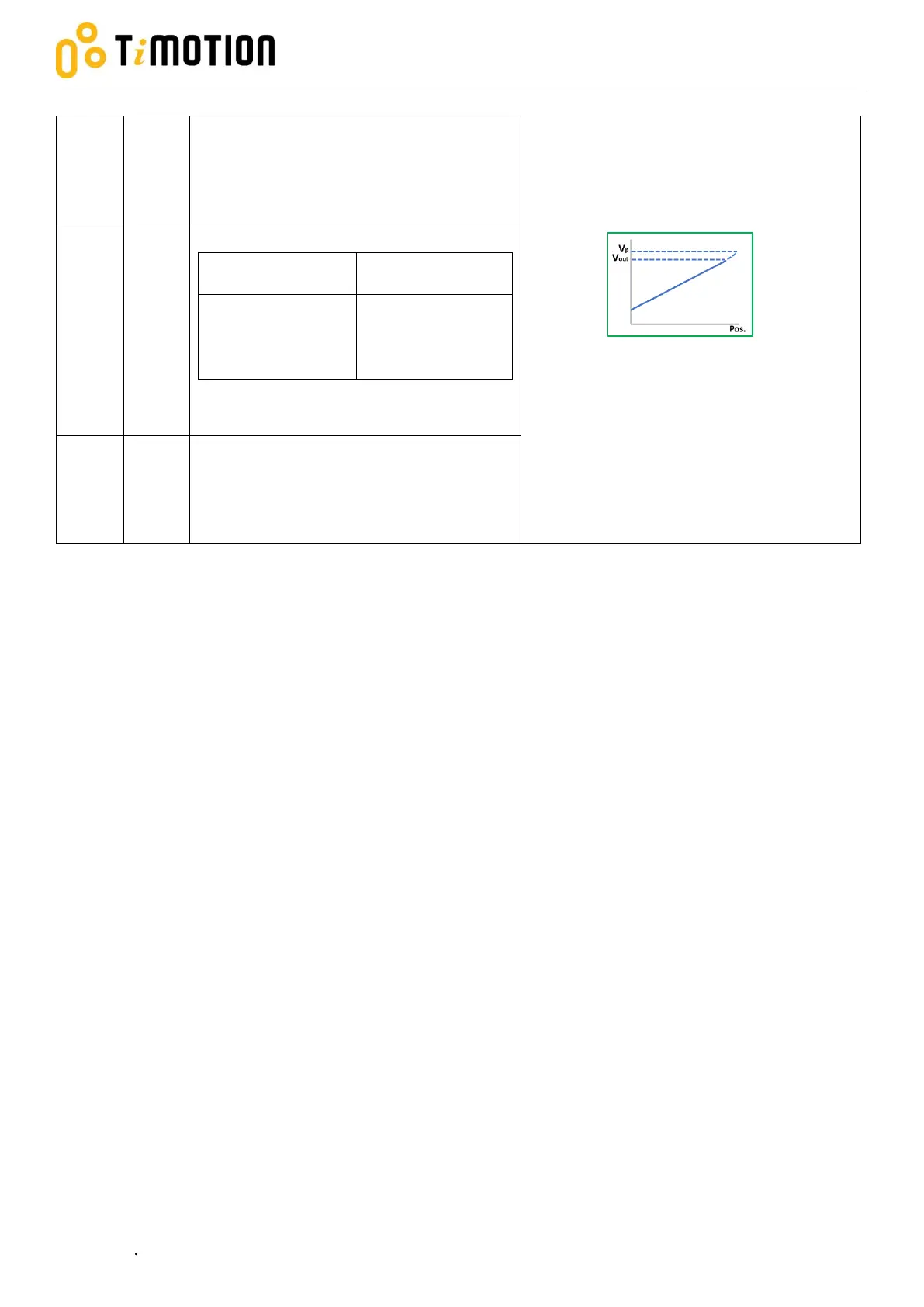

POT signal output Vout={r(𝛺) 10𝐾(𝛺)
⁄
}Vp
Fully retracted
Fully extended
r = 300~500(𝛺)
r depends on the
configuration
(note)
Note: Users can refer to the drawing for fully
extended resistance details.
White
20
POT reference voltage input Vp, 5~32V
DC (Recommended: 10V).
