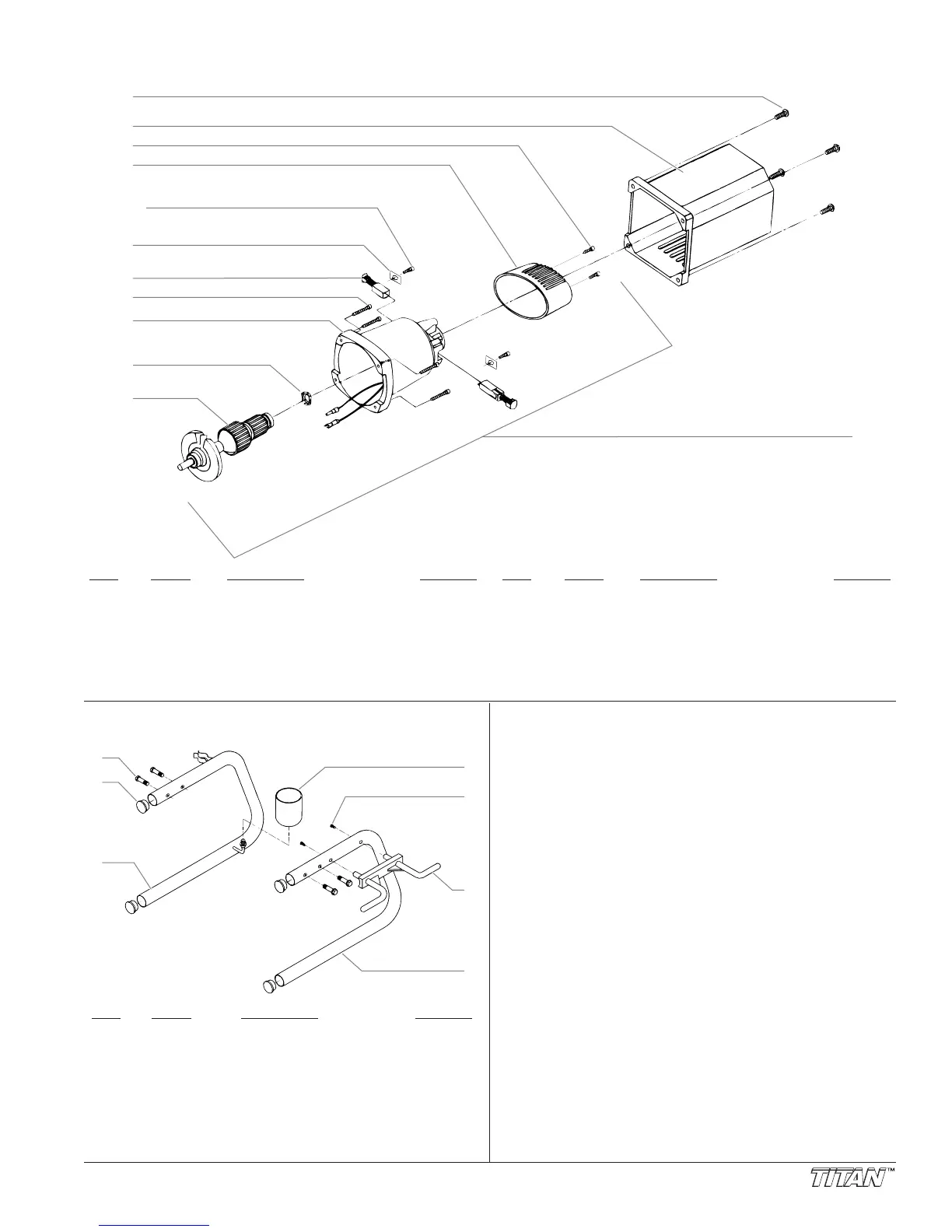

Titan 330 - Motor Assembly; Stand Assembly

©Titan Tool Inc. All rights reserved. 19
1
2
3
4
5
7
8
9
10
6
3
11
Motor Assembly
Item Part # Description Quantity
1 700-716 Screw, 1/4 x 1”......................................4
2 704-101 Rear cover w/label................................1
3 700-063 Screw, 8/16 x 3/4”.................................4
4 700-632 End cap.................................................1
5 700-039 Clamp ...................................................2
6 700-040 Brush and tube .....................................2
700-062 Brush and tube (230V units)
Item
Part # Description Quantity
7 700-766 Screw, 8-32 UN x 1.125 .......................4
8 ---------- Motor housing and field ........................1
9 700-640 Spring washer.......................................1
10 ---------- Armature...............................................1
11 700-070 Motor kit complete
(includes items 3, 4, 5, 6, 8, 9, & 10) ...1
700-084 Motor kit complete (230V units)
Stand Assembly
Item Part # Description Quantity
1 765-126 Screw...............................................4
2 700-674 End cap............................................4
3 704-092 Leg, left (includes items 2 and 4) ....1
4 700-781 Drip cup ...........................................1
5 700-069 Screw...............................................2
6 700-761 Cord wrap ........................................1
7 704-091 Leg, right
(includes items 2, 5, and 6) .............1
1
2
3
4
5
6
7
