Titan 330 - Pump Block Assembly

22 © Titan Tool Inc. All rights reserved.

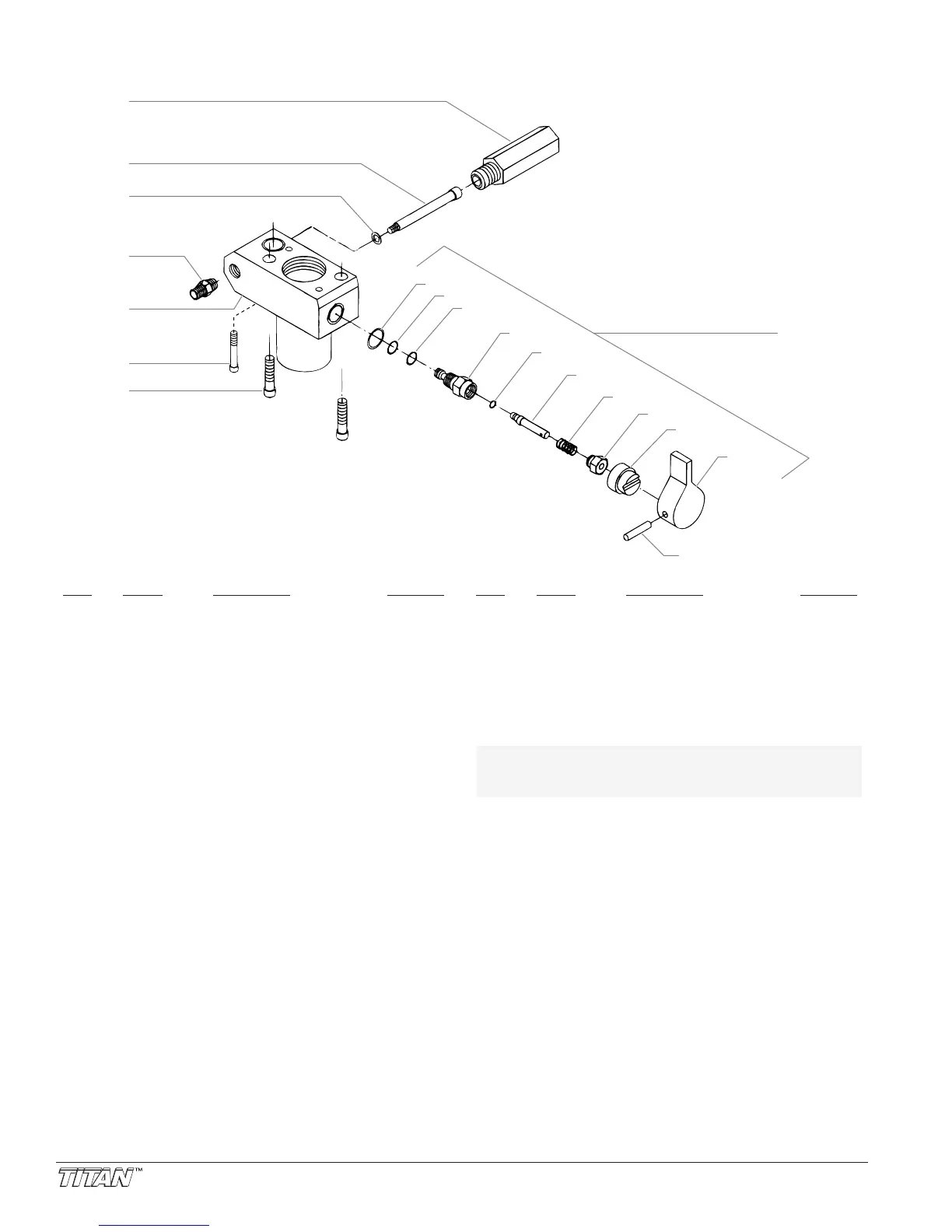

Pump Block Assembly
1
2
3
7
6
9
8
4
5
10
11
12
13
14
15
16
17
18
19
Item Part # Description Quantity
1 700-421 Filter housing ...................................1
2 500-200-03 Filter.................................................1
3 560-038 Seal..................................................1
4 227-006 Fitting ...............................................1
5 704-080 Pump block......................................1
6 704-131 Screw...............................................1
7 704-117 Screw...............................................2
8 700-258 PRIME/SPRAY valve assembly
(Includes items 9—19).....................1
9 700-537 Gasket .............................................1
10 221-012 O-ring, Viton.....................................1
11 222-012 O-ring, PTFE ...................................1
Item
Part # Description Quantity
12 700-246 Valve housing ..................................1
13 700-721 O-ring, Viton.....................................1
700-897 O-ring, PTFE (optional) ...................1
14 700-250 Valve stem .......................................1
15 700-244 Spring ..............................................1
16 700-248 Valve retainer...................................1
17 700-252 Cam base ........................................1
18 700-697 Valve handle ....................................1
19 700-759 Groove pin .......................................1
NOTE: When using “HOT” solvents, replace Viton o-
ring (item 13) with optional PTFE o-ring (700-
897). Install with o-ring tool (700-890).
