Titan ED655 Operating Manual

13. Increase the pressure to 1/2 the maximum pressure. Let the
water or solvent circulate for 2-3 minutes to ush material out
of the pump, the paint hopper, and the return tube.
Clearing the Paint Hose
1. To save material left in the hose, release the gun trigger lock
and carefully trigger the gun with the spray tip removed
against the inside of the material container.
2. Turn the pressure control knob counterclockwise to the
minimum pressure setting.
  
4. Turn the pressure control knob slowly until material starts to
ow into the bucket. As soon as the water or solvent starts to
come into the bucket, release the trigger.
5. Change to clean water or solvent, point the gun to the side
of the waste bucket, and continue circulating for another 5
minutes to thoroughly clean the hose, pump and spray gun.
6. Turn the pressure control knob counterclockwise to its lowest
setting.
  
8. Trigger the gun to remove any pressure which may still be in
the hose.
9. Lock the gun trigger by rotating the trigger lock forward until
it stops.
  
11. Cover the material container and set it aside.
Clearing the Gun
1. Remove the spray gun from the paint hose using two
adjustable wrenches.
2. Remove the lter housing from the gun. Place the gun and
the lter assembly into a container of water or solvent to soak.
3. Clean the spray tip and gun lter with a soft brush.
4. Reassemble the gun and lter. Assemble the spray tip in the
cleaning position with the arrow pointing to the back of the
gun.
5. Attach the paint hose to the gun and tighten using two
wrenches.
  
  
parallel to the gun handle.
  
the side of the waste bucket.
9 Trigger the gun and gradually turn the pressure control knob
clockwise to 1/2 pressure. Continue to trigger the gun for
approximately 30 seconds.
10. Turn the pressure control knob counterclockwise to its lowest
setting.
  
12. Trigger the gun to remove any pressure which may still be in
the hose.
13. Lock the gun trigger by rotating the trigger lock forward until
it stops.
  
ED655 9
GB
Cleanup
Final Cleanup
1. Remove the tip assembly.
  
  
4. Turn the pressure control knob clockwise to 1/2 power.
5. Trigger the gun into the cleaning bucket until the hopper or
solvent bucket is empty.
6. Rell the hopper or solvent bucket and continue ushing
the system until the solution coming out of the gun appears
clean.
7. Lock the gun and turn the pressure control knob
counterclockwise to its lowest setting.
  

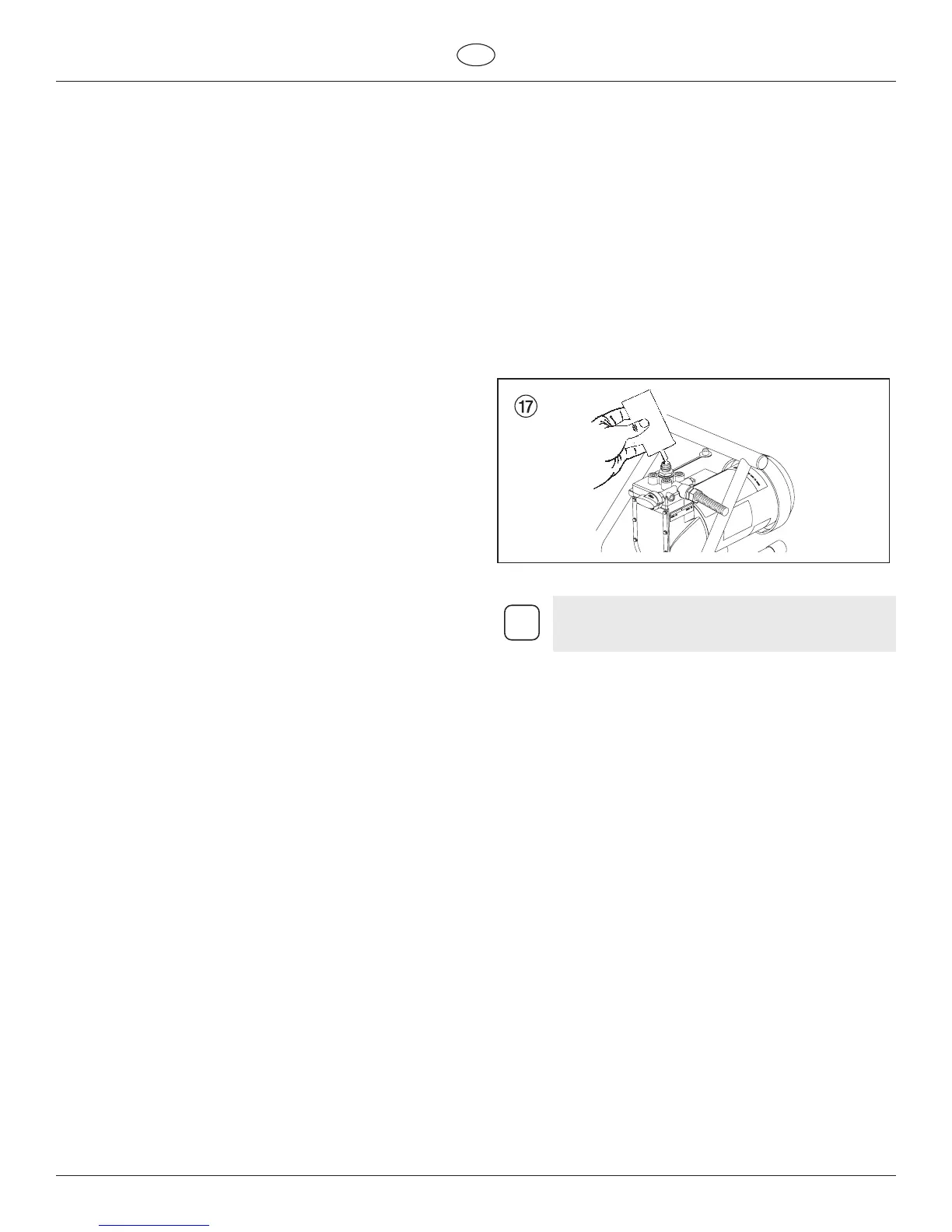

9. Remove the hopper or suction set from the inlet valve.
10. Clean the threads of the inlet valve with a damp cloth.
11. Fill the inlet valve with a light household oil.
  
i
Proper cleaning and oiling of the pump after use
are the most important steps you can take to insure
proper operation after storage.
13. Turn the pressure control knob counterclockwise to its lowest
setting.
  
15. Trigger the gun to remove any pressure that may still be in the
hose.
16. Lock the gun trigger by rotating the trigger lock forward until
it stops.
  
18. Remove the hopper lter and clean in clean water or the

19. Return the hopper lter to its position in the hopper.
20. Replace the hopper or suction set on the inlet valve.
21. Wipe the entire unit, hose, and gun with a damp cloth to
remove accumulated material.

Titan ED655 Specifications

General

Power Source	Electric
Voltage	120 V
Hose Length	25 ft
Type	Airless
Spray Tip Size	0.015 inches
