2. General Description
2.1 Application
This high performance airless sprayer is a precision power tool used
for spraying many types of materials. Read and follow this instruction
manual carefully for proper operating instructions, maintenance and
safety information.
2.2 Coating materials
Processible coating materials
i
Pay attention to the Airless quality of the coating
materials to be processed.
Latex paint, dispersion paints, re protection and thick lm materials,
zinc dust and micaceous iron ore paints, Airless spray primer,
sprayable glue, anti-corrosive agents, thick coating materials and
bitumen-like coating materials.

approval.
Viscosity
It is possible to work with high-viscosity coating materials with the
devices.
If highly viscous coating materials cannot be sucked up, they must be

Two-component coating material
The appropriate processing time must be adhered to exactly. Within
this time rinse through and clean the unit meticulously with the
appropriate cleaning agents.
Coating materials with sharp-edged additional materials
These have a strong wear and tear eect on valves, high-pressure
hose, spray gun and tip. The durability of these parts can be reduced
appreciably through this.

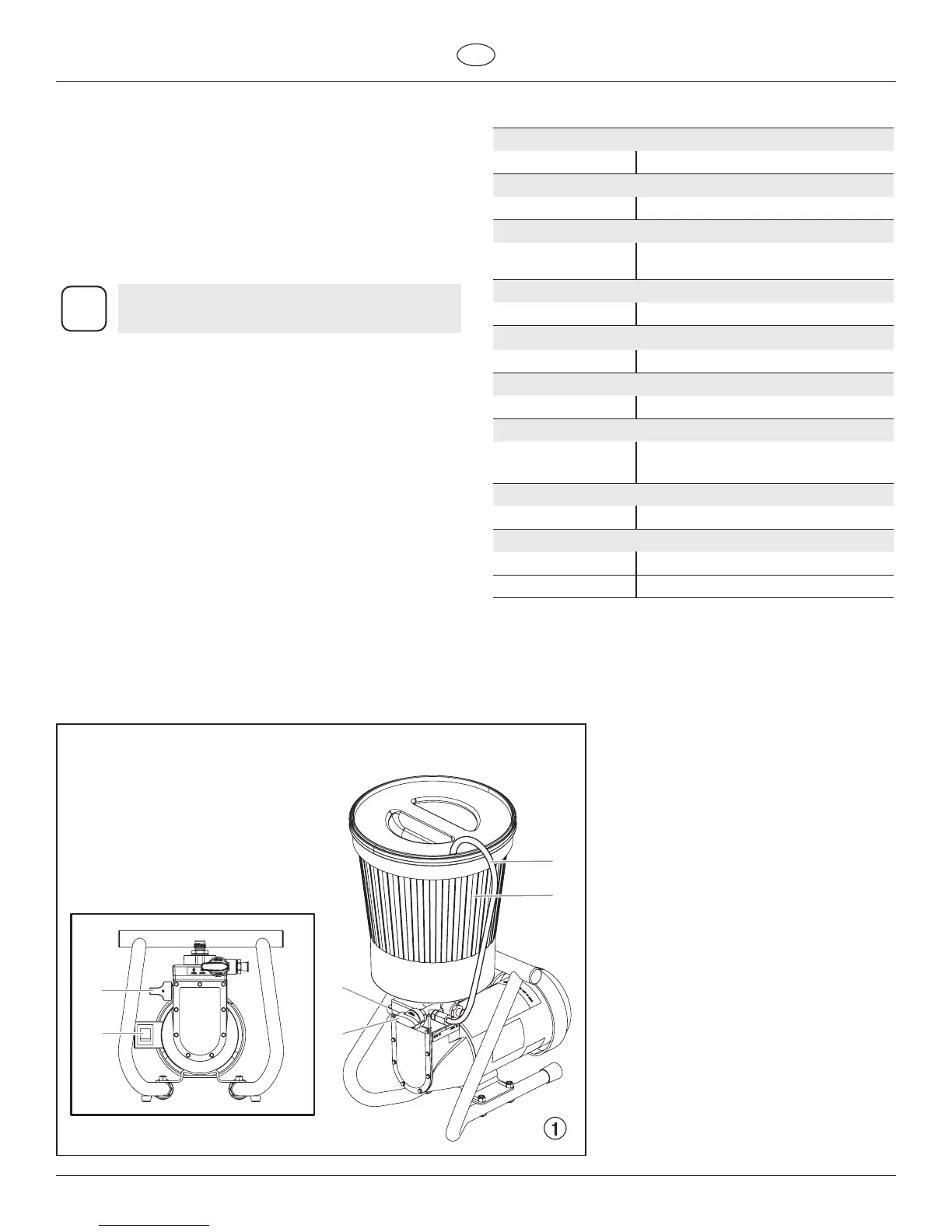

2.3 System Diagram (Fig. 1)
2.4 Technical Data
Weight

Max. Volume Flow

Power Requirement

50/60 Hz current, 1 PH
Power Consumption
1000 W
Short Circuit Current
8 A
Max. Fluid Pressure

Dimensions L x W x H
40.6 cm x 30.5 cm x 32 cm

Max. sound pressure level

Vibration Levels
 
Handle 
  

  
2. Return tube
3. Hopper assembly
4. Pressure control knob
  
Weight

Max. Volume Flow

Power Requirement
 
50/60 Hz current, 1 PH
 
50/60 Hz current, 1 PH
Power Consumption
1000 W
Short Circuit Current
8 A
Max. Fluid Pressure

Dimensions L x W x H
40.6 cm x 30.5 cm x 32 cm

Max. sound pressure level

Vibration Levels
 
Handle 

Titan ED655 Specifications

General

Power Source	Electric
Voltage	120 V
Hose Length	25 ft
Type	Airless
Spray Tip Size	0.015 inches
