TPxxxB/BC/BE/BAR Units ONLY
Switching & Controls

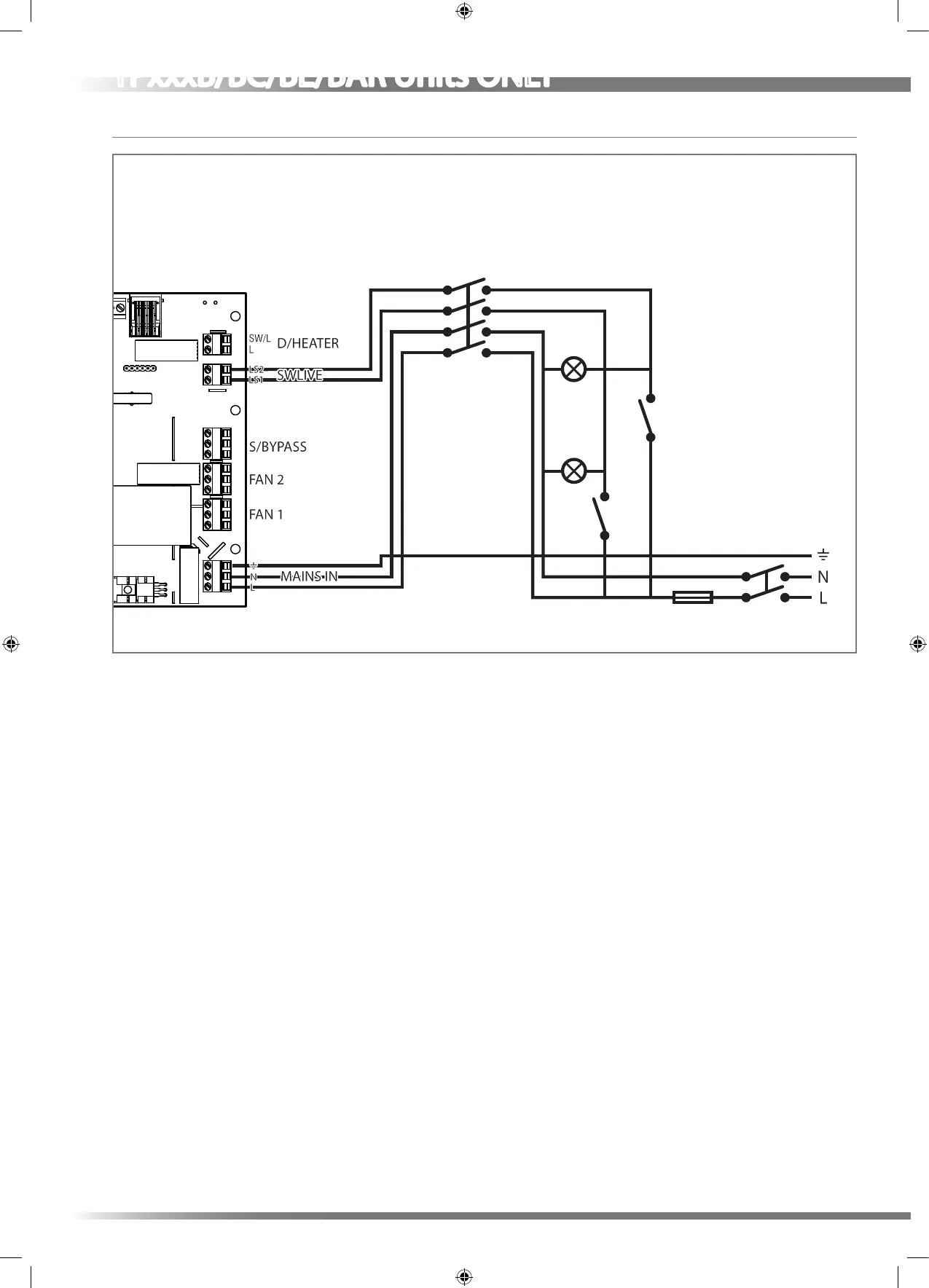

Supply wiring with switch inputs Ref EE166
The Switched Live (LS1, LS2) Boost(s) must be supplied via
the same circuit as used to power the unit.
A 3 (LS1 only) or 4 (LS1 &LS2) pole local isolator must be
installed. The Boxed Relay (Part No. TP505) may be required
to switch from other circuits.
Wet Room Light Switch
Kitchen Light Switch
230V~
4 Pole
Isolator
2 Pole
Isolator
Fuse
20
To Next Page
