FFDE / FFDER / FFDERA
Wiring Diagrams (continued)

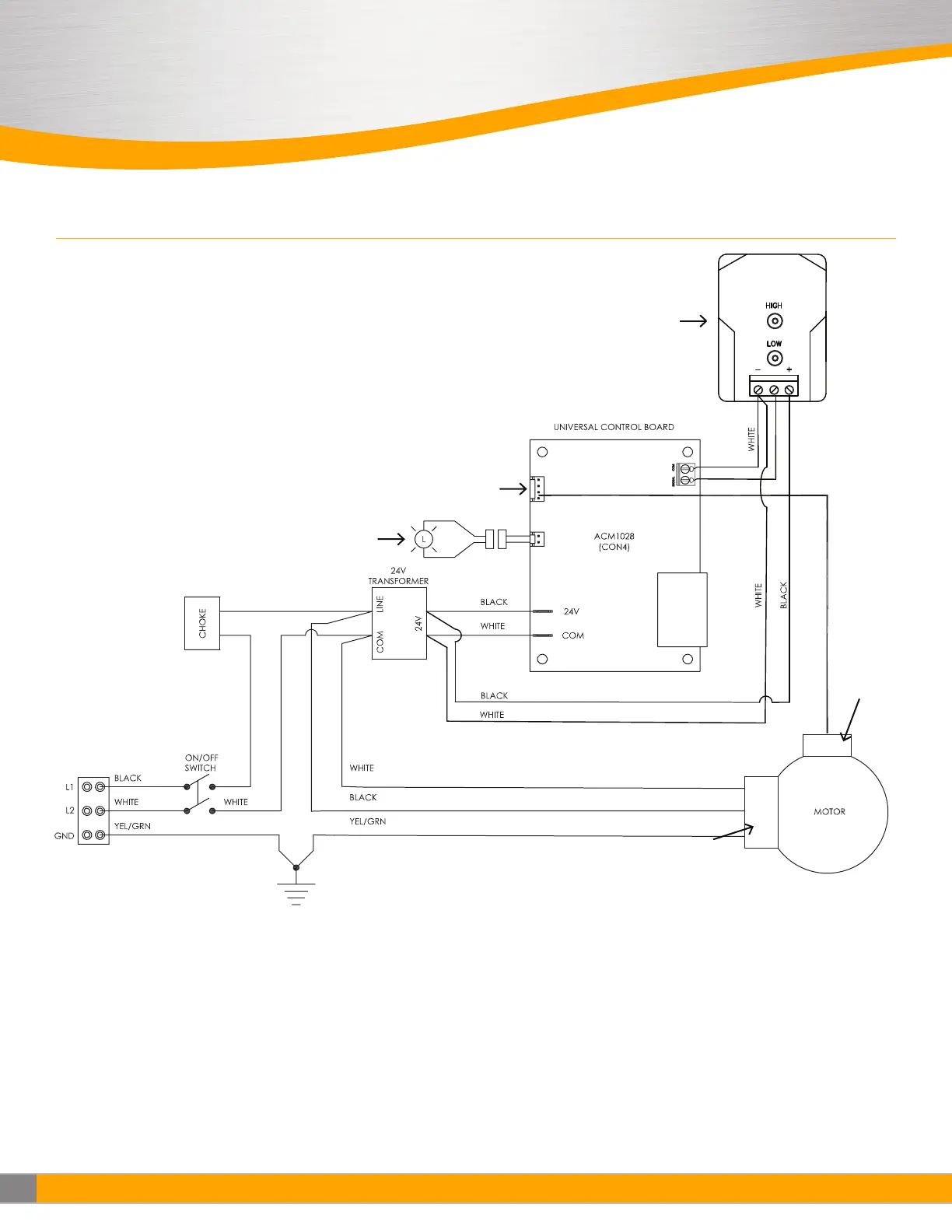

Universal Card Wiring Diagram
w/ Continous Filter Monitoring
4 pin
Control
Cable
5 pin
Power
Cable
4 Pin MTA
Motor Connector
Remote Run
Indicator LED
Note: Register 24 may be read in network mode to determine the value of 0-10VDC signal from the pressure
transducer connected to indicate unit interal static pressure.
RED
Pressure
Transducer
