Disassembly and Assembly Joint screw

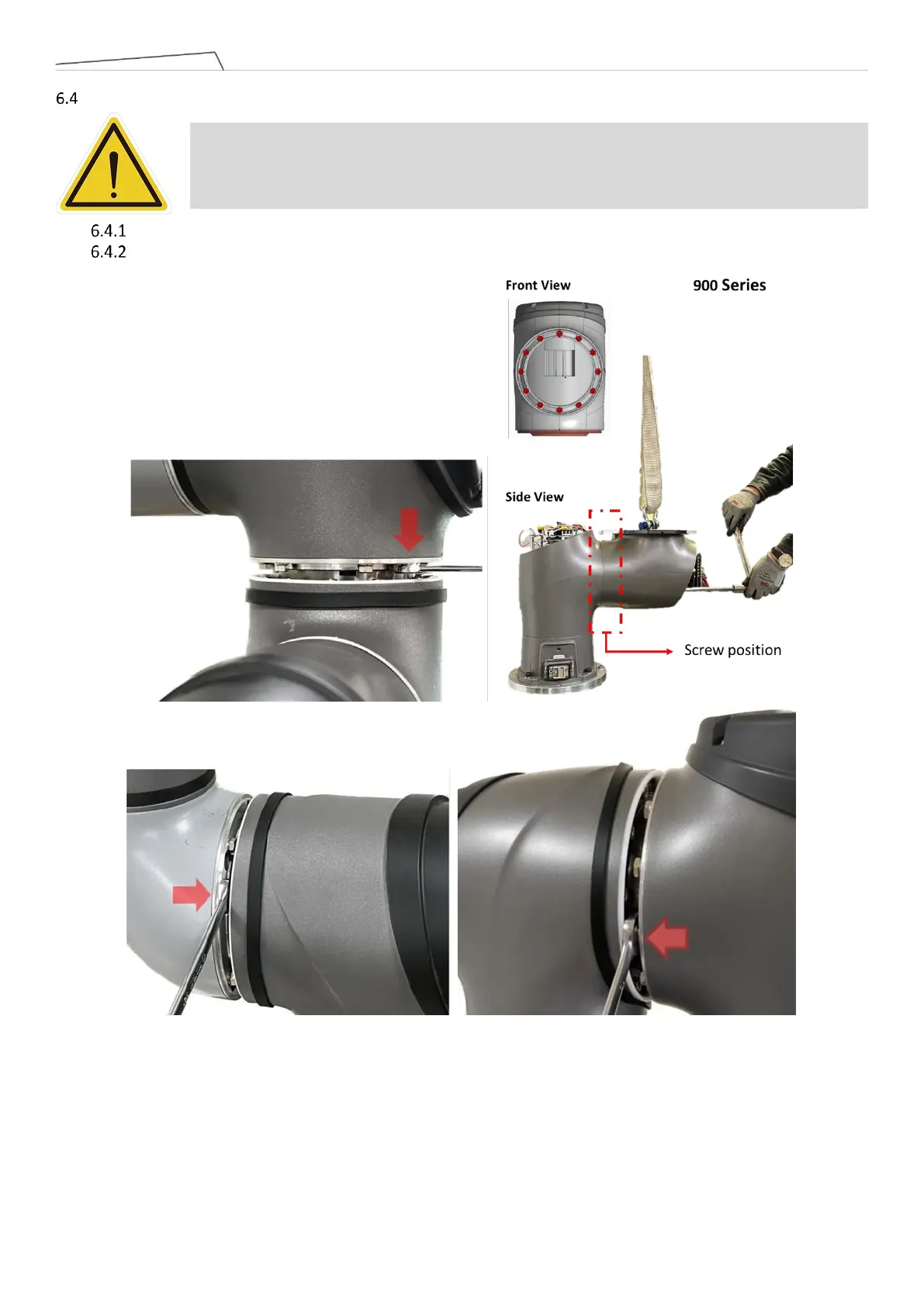

Before remove Joint screws, remove Joint Cover and Joint Rubber.
Using open end wrench to loosen the screw for Joint connecting screws
CAUTION: Before remove Joint screws, ensure the Joint cables and connectors are
disconnected; failure to disconnect the cable may result in damage to the Joint cable or
components due to pulling or interference when removing the Joint.
