Disassembly/Assembly of the Patriot Power Board
Refer to "Open the Control Box Outer Casing" to open the outer casing cover and inner casing cover.

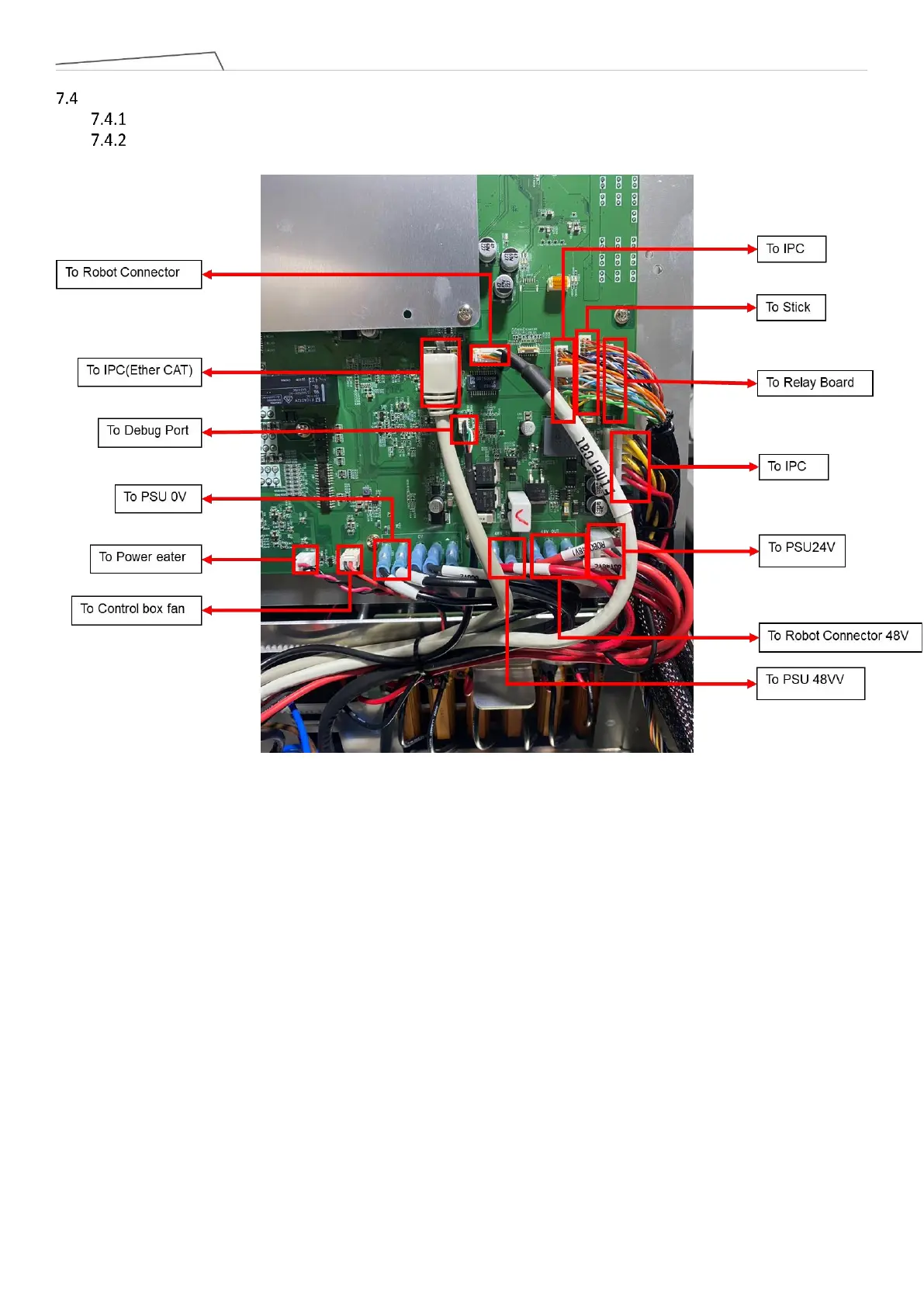

Refer to the diagram below to remove the connectors, and if necessary, cut cable ties:
To Next Page
