Disassembly/Assembly Relay board
Refer to "Open the Control Box Outer Casing" to open the outer casing cover and inner casing cover.

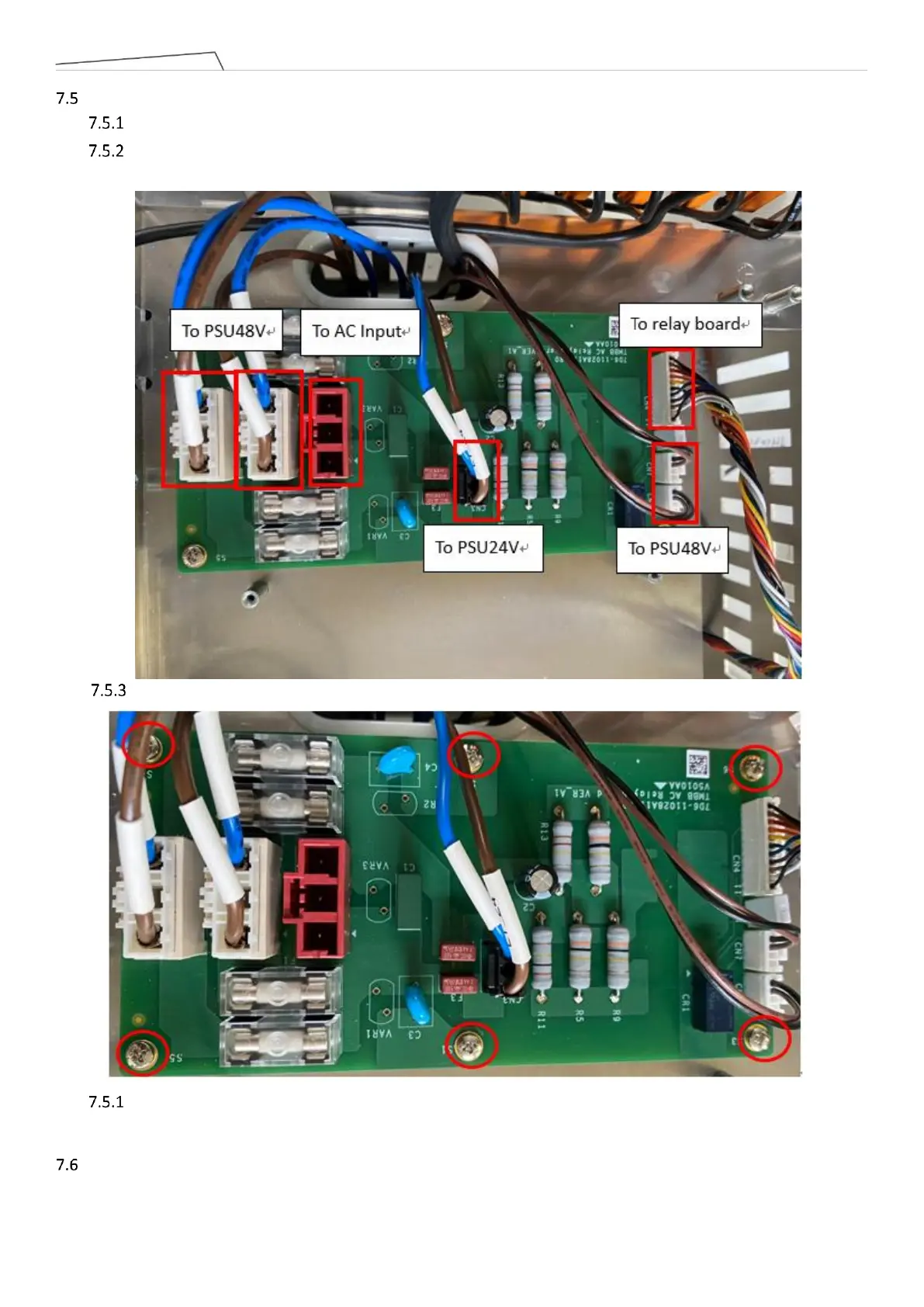

Refer to the diagram below to remove the connectors, and if necessary, cut cable ties
Loosen the 6 screws securing the Relay Board.
During installation, follow the reverse steps of the above procedure. If cable ties were cut, secure the wires
again in the original manner
