Jacobs
Engine Brake
( Opt .. )
1. Place dash switch in ''on'' pos,1,on of ter vehicle starts in mot i on .
Select
LOW or HI GH position depend ing on terrain ond bro ki ng
effect desired. Emp loy normal dr ivi ng hab its as secondary switches
on clutch
ond accel erator con tro l engine broke opera tion. Slight
pressure on either clutch or accelerator pedals wil l deenergize
engine b rok e. On automat ic transmission equipped coaches a
clutch switch
is not used and engine broke opera t ion is contro ll ed by
acce le rator switch alone.
2. Maintain governed speed of vehicle engine when engine broke is in
use to
obtain maximum retard i ng . Utilize service brakes to reduce
or maintain speed and engine R.P.M. approp ria te to gear or range
select ed . On descent of sleep grades the engine broke it self may be
insufficient to maintai n vehicle speed desired , up - shifting (in
oulomotic transmissions) con occur if en gine R.P.M . ,s over range
speed , and reduce effectiveness of eng i ne broke .
3,
Place dash switch in " off " posi tion when vehicle is parked .
-
I
33
Park Brake
System
Emergency Fill
Pork bro ke air system may be filled from on external source by
apply in g oir lo the valve located in the fron t l eh side comportment. Th is
w
ill fill the pork broke system only.

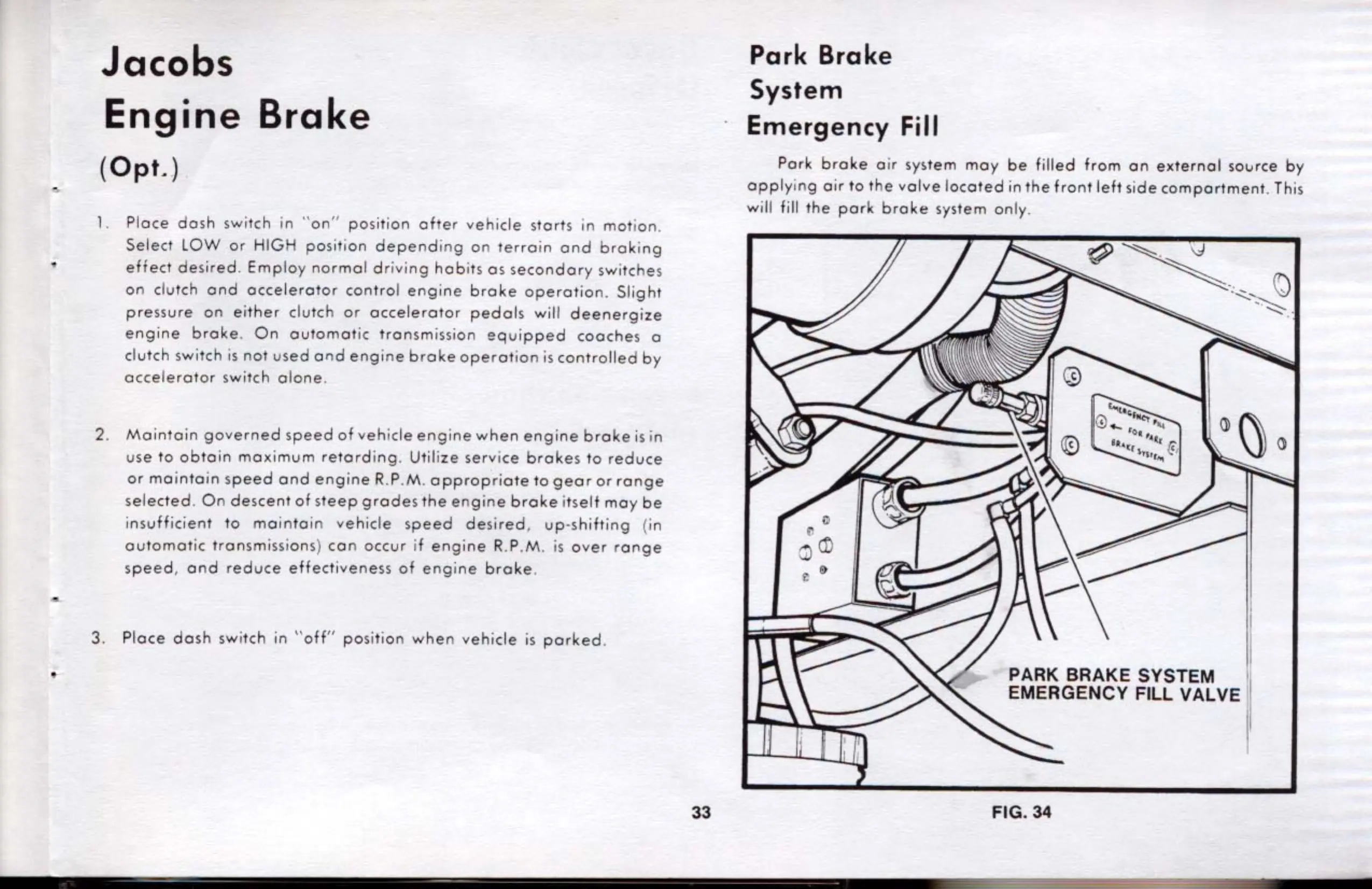

PARK BRAKE SYSTEM
EMERGENCY FILL VALVE
FIG . 34
