DEODORIZER
TOWEL DISPENSER
SOAP DISPENSER
D
Lavatory (Optional)
Lovotory comportment, locoted ot righ t reor of cooch , contoins o
chemico l toilet, wosh bosin with runn i ng woter, woste po per conroiner
ond m irror .
L
ovo t ory com p ortment ven tilotion blower runs whenever " MASTER "
switch
is in the " ON" position . Closing ond l oc ki ng door from inside
il
luminotes t he " OCCU PIE D" si gn on outside of t he door ond illumin ates
ce il ing lomp . Emergency buzzer sw itch provided with the Lovotory
option is locoted on wol l of comportme nl with cleorly mor l ed
inslruction pl otes . When emergency buzzer switch is dep r essed ,
lovotory tell-tole lo mp on instrument p one I illumin otes ond buzzer
sou nds.
TISSUE DISPENSER_,_
WASTE PAPER CONTAINER

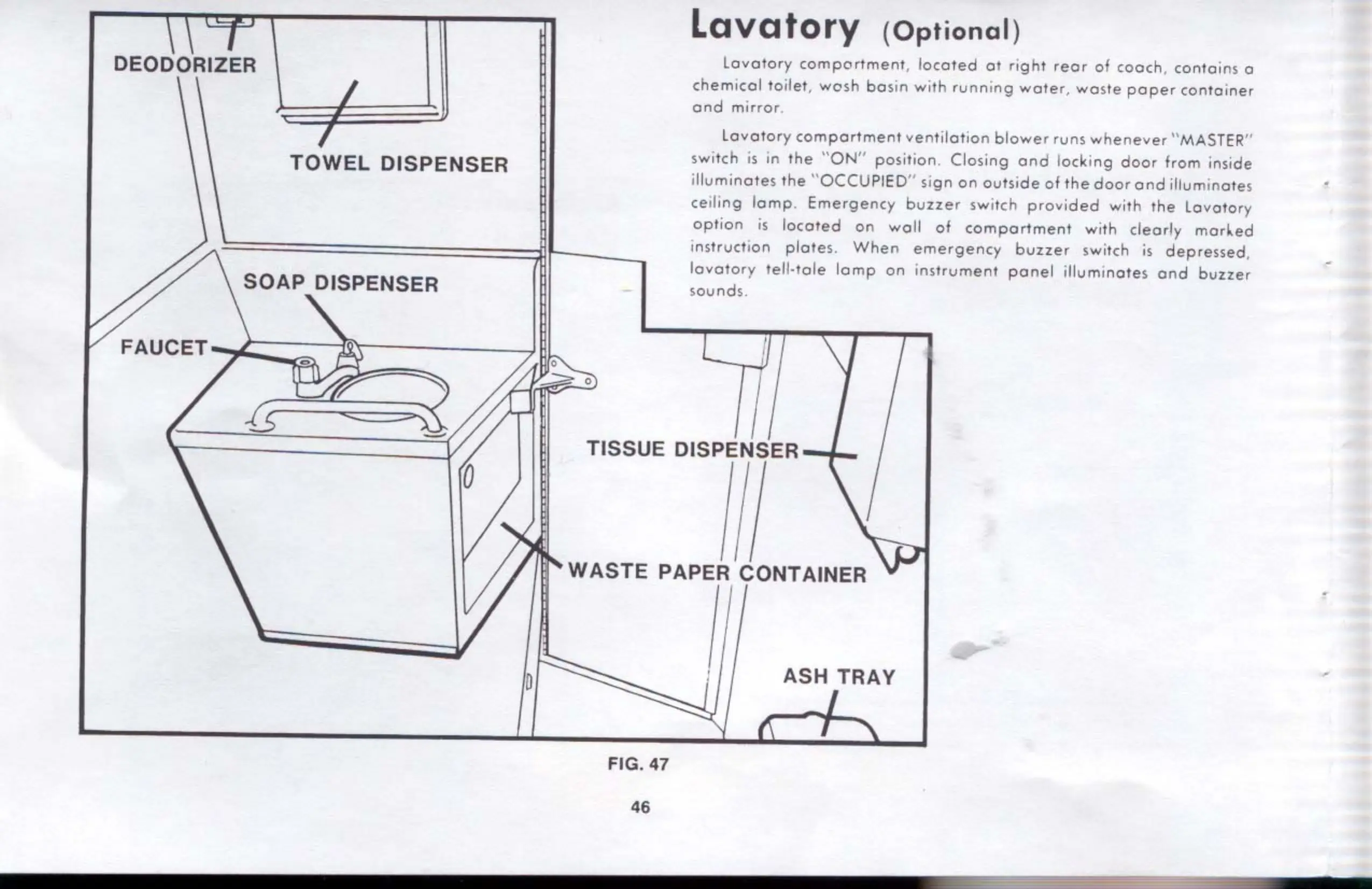

FIG . 47
46
ASH TRAY
•
•
