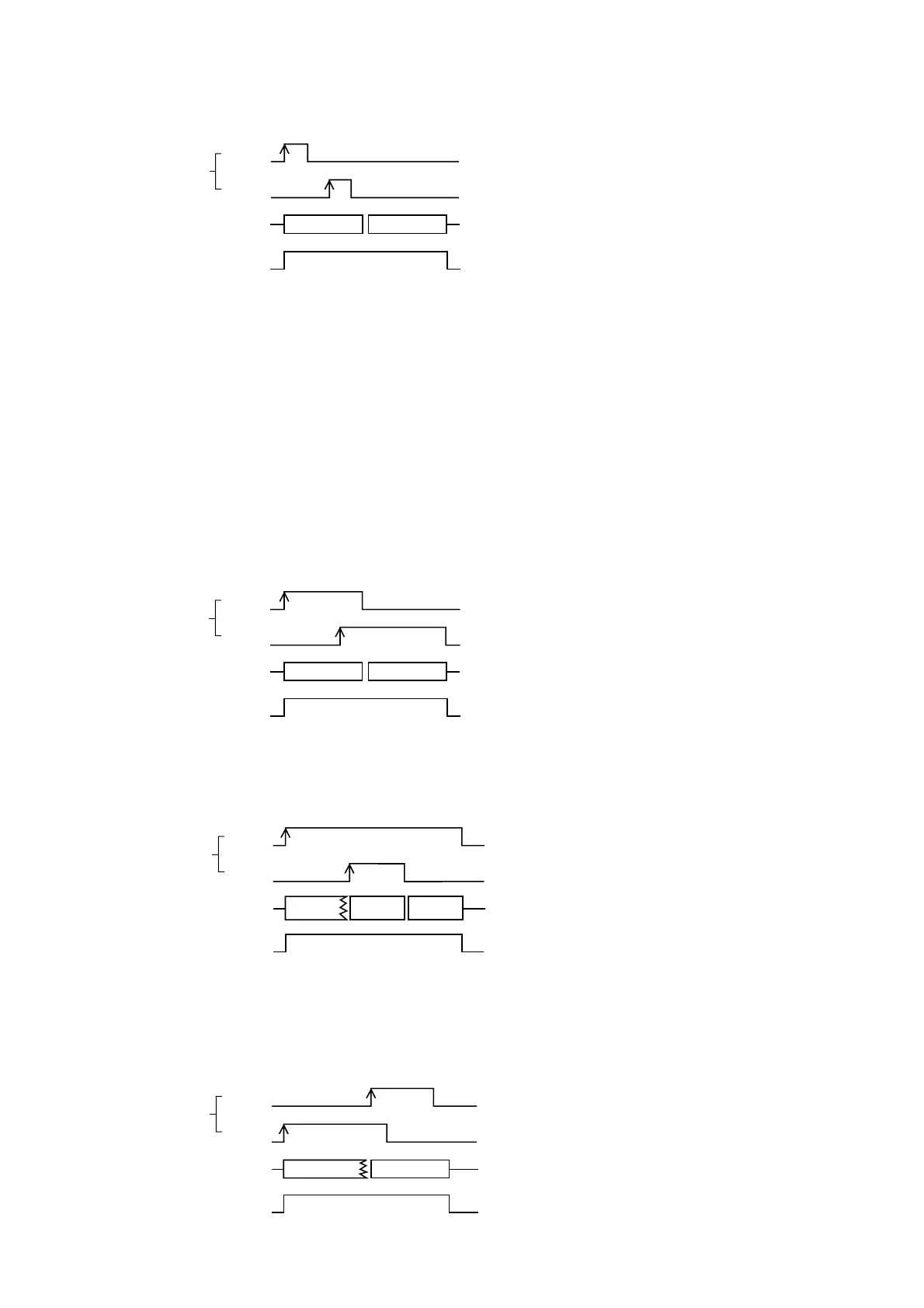

(4) Playback Activation Mode 4 (one-shot activation, sequential storage and playback)
Busy output 1
ON
OFF
ON
OFF
ON
OFF
Program Playback
Busy output
1
Activation Control input
2
Playback of P002Playback of P001
(5) Playback Activation Mode 5 (level-operated input activation, first-in-first-out priority)
ON
OFF
ON
OFF
ON
OFF
Program Playback
Busy output
Busy output 1
1
Activation Control input
2
Playback of P002Playback of P001
Busy output 1
ON
OFF
ON
OFF
ON
OFF
Program Playback
Busy output
1
Activation Control input
2
Playback of
P001
Playback of
P002
Playback of
P001
(6) Playback Activation Mode 6 (level-operated input activation, last-in-first-out priority)
(7) Playback Activation Mode 7 (level-operated input activation, chronological priority)
ON
OFF
ON
OFF
ON
OFF
Program Playback
Busy output
Busy output 1
1
Activation Control input
2
Playback of P002 Playback of P001
・Playback begins when the Activation Control input is
shorted.
・All subsequent Activation Control inputs are
sequentially stored and programs are played back in
input order.
・Up to 16 inputs are stored for each output.
・When simultaneous Activation Control inputs are
received, the program with the smallest program
number is played back.
・Programs are played back only once. even if the
Activation Control input remains shorted.
・Shorting the Stop Control input stops the program
being played back. (If the Stop 1 Control input is
shorted when the program is played back from both
Outputs 1 and 2, playback from Output 1 stops.
However, Output 2 continues to play back the
program.) If another control input has been stored,
the unit automatically begins to play back the stored
program.
・If you short the Erase/Clear Control input while
shorting the Playback Control input, all stored inputs
are cleared.
・Playback continues while the Activation Control
input is shorted.
・All subsequent Activation Control inputs are rejected
during playback.
・Subsequent Activation Control inputs during
playback are stored and played back as soon as the
current playback is completed.
・When multiple Activation Control inputs are
simultaneously shorted, the program with the
smallest program number is played back.
・Playback continues while the Activation Control
input is shorted.
・The most recent Activation Control input takes
precedence even during playback.
・During playback, other Activation Control inputs
are stored and played back upon completion of
the current playback.
・When simultaneous Activation Control inputs are
received, the program with the smallest program
number is played back.
・Playback continues while the Activation Control
input is shorted.
・If the input to the Activation Control input has a
smaller program number than that of the currently
playing program, the program with the smaller
number is played back. The input with the larger
program number is rejected.
・When simultaneous Activation Control inputs are
received, the program with the smallest program
number is played back.
