Toa IP-A1PC238 - Dimensional Drawings

5
5
(0.2)
ø200 ± 2
(7.87 ± 0.08)
5 – 25
(0.2 – 0.98)
89
(3.5)
121 (4.76)
92
(3.62)
ø230 (ø9.06)

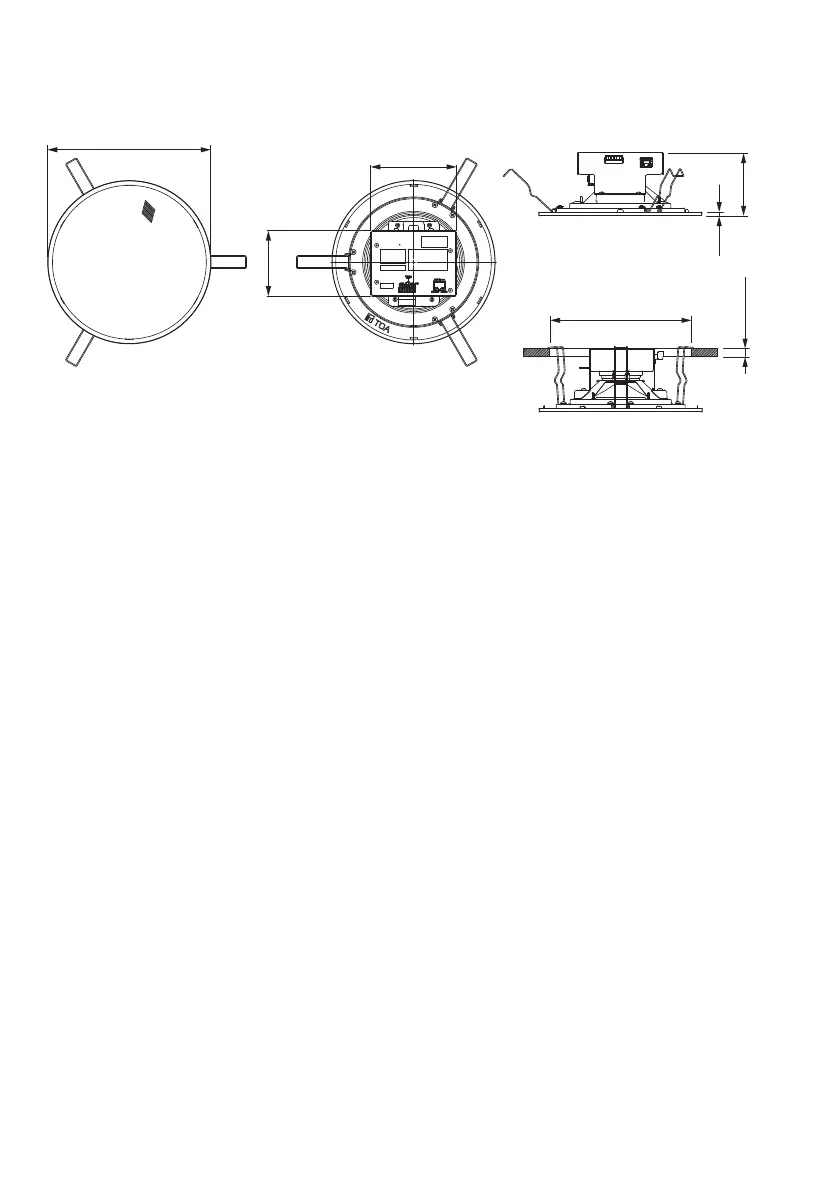

4. DIMENSIONAL DRAWINGS
Unit: mm (in)
[Front] [Rear] [Side]
(Mounting Diagram)
