[Connector connections]

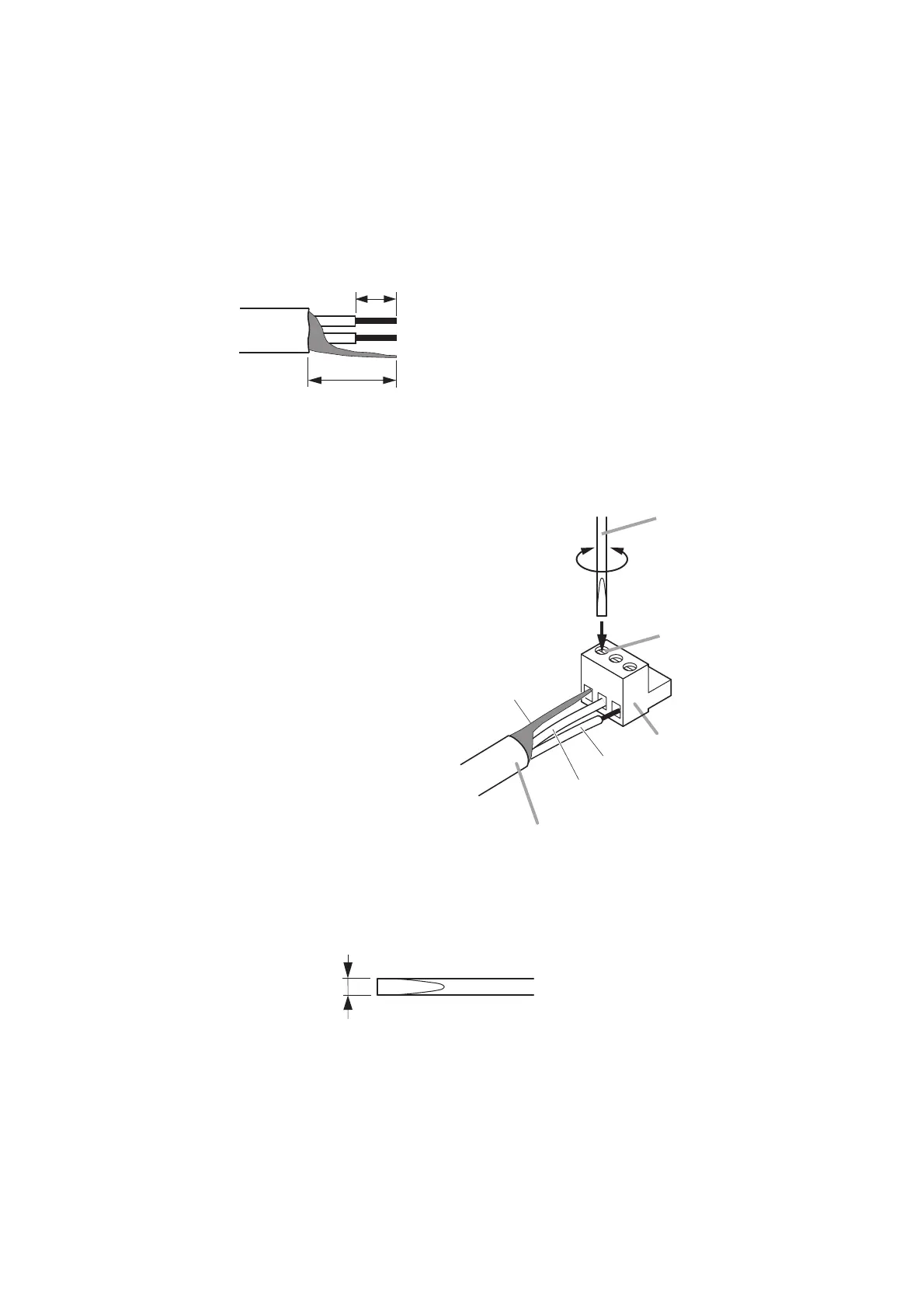

Step 1. Loosen the terminal screw, then insert the cable.
Step 2. Retighten the terminal screw. (Pull on the cable to
ensure it is securely connected.)
Step 3. Insert the removable terminal plug into the
input/output terminal block on the unit's
rear panel.
Tip
Recommended slotted screwdriver type: Screwdriver with blade that is 3 mm (0.12") in width
15.3. Removable Terminal Plug Connection
Notes
• Be sure to use shielded cables for audio signal lines.
• Avoid soldering cable conductor, as contact resistance may increase when the cable is tightened and the
solder is crushed, possibly resulting in an excessive rise in joint temperatures.
