7. ASSIGNMENT SETTINGS

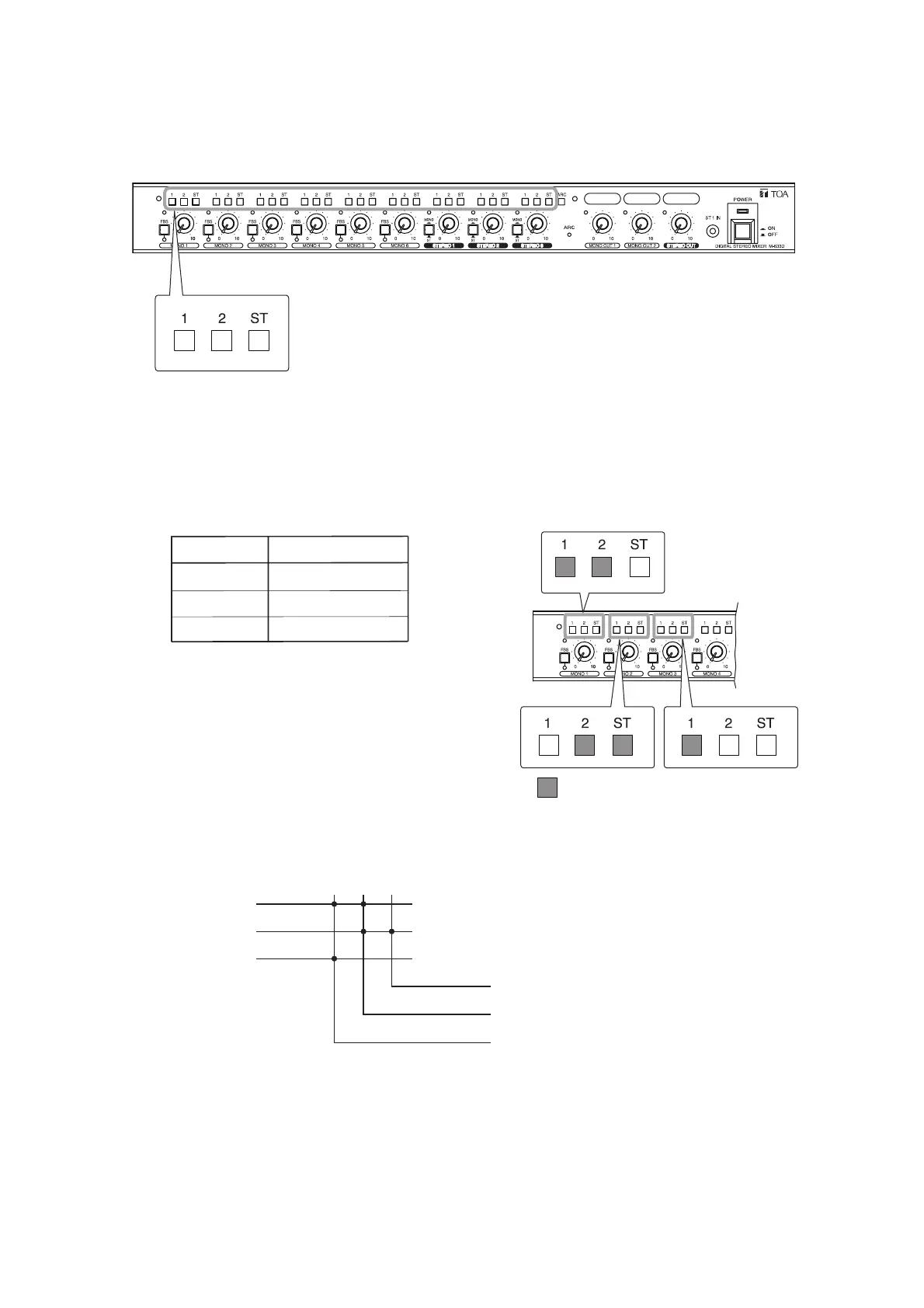

It is possible to assign each input to 3 output channels individually (MONO 1, MONO 2, and STEREO).
MONO IN 1
Input
Output
Assignment switch
MONO IN 2
MONO IN 3
ST OUT L/R
12ST
MONO OUT 2
MONO OUT 1
Pressing the Assignment switch "1" routes the input signal to the MONO OUT 1 output, switch "2" to the
MONO OUT 2 output, and switch "ST" to the STEREO OUT output.
Input signals assigned to the same output destination are mixed.
[Assignment setting example]
The figures below show an example of assignment settings of the inputs.
The figure below shows a signal flow.
MONO 1
Assignment switch
1, 2
MONO 2 2, ST
MONO 3 1
Input
MONO 2
MONO 1
MONO 3
: Pressed-in state (ON)
Mixed signals of the MONO IN 1 and MONO IN 3 are output from the MONO OUT 1, those of the MONO IN 1
and MONO IN 2 from the MONO OUT 2, and the MONO IN 2 signal from the ST OUT L/R.
