Toa P-75D User Manual

Input/Output Connections

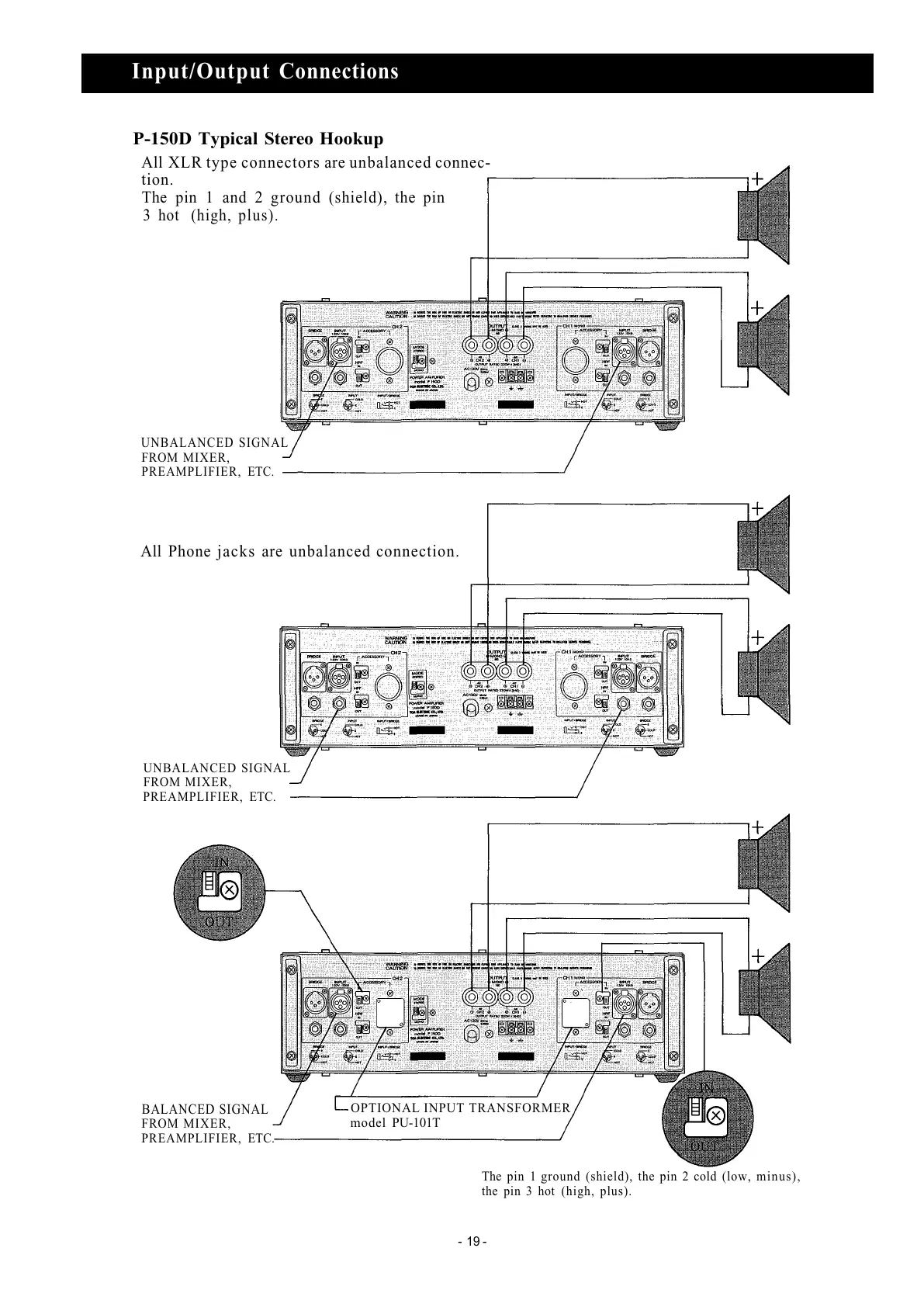

P-150D Typical Stereo Hookup
All XLR type connectors are unbalanced connec-
tion.
The pin 1 and 2 ground (shield), the pin
3 hot (high, plus).
UNBALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
All Phone jacks are unbalanced connection.
UNBALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
BALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
OPTIONAL INPUT TRANSFORMER
model PU-101T
The pin 1 ground (shield), the pin 2 cold (low, minus),
the pin 3 hot (high, plus).
- 19 -
All manuals and user guides at all-guides.com
